This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class for objects that store data in C^N which are equidistant or non equidistant distributed in R^1 More...

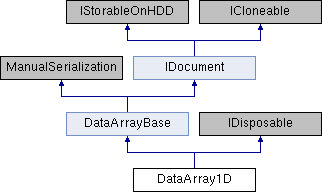

Inheritance diagram for DataArray1D:

Public Member Functions
void	AppendDataArray1D (DataArray1D arrayToAppend, bool coordinateOfLastIntervalsUpperLimitDeterminesPosition)
	Appends a given data array to this. More...

override object	Clone ()
	Deep copy More...

double	CoordinateOfDataPointIndex (long index)
	Gives the coordinate of a certain data point as double. More...

PhysicalValue	CoordinateOfDataPointIndex_asPValue (long index)
	Gives the coordinate of a certain data point as PhysicalValue. More...

	DataArray1D (ComplexField1DArray data, PhysicalProperty[] physicalPropertiesOfData, string[] commentsOfData, CFieldDerivative1DReal coordinates, PhysicalProperty physicalPropertyOfCoordinates, string commentOfCoordinates, double coordinateOfLastIntervalsUpperLimit, ExtrapolationInfo extrapolation=null, InterpolationMethodForNonequidistantData interpolation=InterpolationMethodForNonequidistantData.ConstantInterval)
	Constructor for non-equidistant data. More...

	DataArray1D (ComplexField1DArray data, PhysicalProperty[] physicalPropertiesOfData, string[] commentsOfData, double samplingDistance, double coordinateOfFirstDataPoint, PhysicalProperty physicalPropertyOfCoordinates, string commentOfCoordinates, ExtrapolationInfo extrapolation=null, InterpolationMethod interpolation=InterpolationMethod.Nearest)
	Constructor for equidistant data More...

	DataArray1D (DataArray1D dataArray)
	Copy constructor More...

	DataArray1D (double[,] coordinatesAndData, PhysicalProperty physicalPropertyOfData, string commentOfData, PhysicalProperty physicalPropertyOfCoordinates, string commentOfCoordinates, double coordinateOfLastIntervalsUpperLimit, ExtrapolationInfo extrapolation=null, InterpolationMethodForNonequidistantData interpolation=InterpolationMethodForNonequidistantData.ConstantInterval)
	Special constructor for non-equidistant data, that are stored in a double[,] array. Only one subset is used, i.e. N = 1. More...

	DataArray1D (double[] data, PhysicalProperty physicalPropertyOfData, string commentOfData, double samplingDistance, double coordinateOfFirstDataPoint, PhysicalProperty physicalPropertyOfCoordinates, string commentOfCoordinates, ExtrapolationInfo extrapolation=null, InterpolationMethod interpolation=InterpolationMethod.Nearest)
	Special constructor for equidistant data, that are stored in a double[] array. Only one subset is used, i.e. N = 1. More...

void	Dispose ()
	Frees all memory that is used for the data.

virtual void	EmbedExtract (int numberOfDataPoints)
	Method to perform an embed/extract operation on the data array. More...

override bool	Equals (object obj, EqualityIntent equalityIntent)
	Checks whether two DataArray1D objects are equal. More...

virtual void	EquidistantToNonEquidistant (bool forNN_convertCenterCoordinateInsteadOfIntervalBorder)
	If this data array is equidistant, this conversion method makes it non equidistant. This is done by calculating the member NonequidistantCoordinates from CoordinateOfFirstDataPoint, SamplingDistance and the respective index. More...

PhysicalValueRange	GetCoordinateRange (bool boundaryExtrapolation)
	Gets the whole range of coordinates (coordinate extent). More...

override string	HeaderInformation (int subSetID, TextExportImportSettings exportSettings, FieldQuantity? quantityForInformation=null)
	Public method to get the export header (data meaning and sampling parameters) for a specific data array. More...

long	IndexOfDataPointAtCoordinate (double coord, bool enforceSteppedInterpolation, out bool coordinatesOutsideGivenIndexRange)
	Method to get the index of that data point which corresponds to a given coordinate. More...

long	IndexOfDataPointAtCoordinate (double coord, long startIndex, long endIndex, bool enforceSteppedInterpolation, out bool coordinatesOutsideGivenIndexRange)
	Method to get the index of that data point which corresponds to a given coordinate. More...

void	MultiplyFactorOnData (double factor)
	Public method to multiply a factor onto all data subsets. More...

virtual Complex[]	PointInterpolation (double coord, bool enforceSteppedInterpolation, long startIndex, long endIndex, out long correspondingDataPointIndex, out bool coordinateOutsideCoordinateRange)
	Gives the interpolated complex value for a given coordinate. More...

virtual Complex[]	PointInterpolation (double coord, bool enforceSteppedInterpolation, out long correspondingDataPointIndex, out bool coordinateOutsideCoordinateRange)
	Gives the interpolated complex value for a given coordinate. More...

override void	Save (string fileName)
	Save this data array to a file with a given name. More...

void	SetDataWithPropertiesAndCommentsAtOnce (ComplexField1DArray data, PhysicalProperty[] properties, string[] comments)
	Sets the members Data, PhysicalPropertiesOfDataEntries and CommentsOfDataEntries at once to ensure consistency. More...

virtual void	ShiftCoordinates (double coordinateShift)
	Public method to perform a shift on the coordinates of the data array. More...

DataArray1D	TransformCoordinates (RealFunctionWithSingleArgument trafo, bool forNN_convertCenterCoordinateInsteadOfIntervalBorder, double lastIntervalSizeForSpecialHandlingOfDiscontinuity)
	Method for transforming this data array's coordinates using a transform function . More...

Public Member Functions inherited from DataArrayBase
	DataArrayBase ()
	Standard constructor used for manual serialization

	DataArrayBase (DataArrayBase copyDA)
	copy constructor More...

Public Member Functions inherited from IDocument
void	Reload ()
	Reload function for the document

Static Public Member Functions
static bool	operator!= (DataArray1D da1, DataArray1D da2)
	Checks whether two DataArray1D objects are unequal. More...

static DataArray1D	operator* (DataArray1D dataArray1, DataArray1D dataArray2)
	Implements the operator * for multiplication of two one-dimensional data arrays. More...

static DataArray1D	operator+ (DataArray1D dataArray1, DataArray1D dataArray2)
	Implements the operator + for addition of two one-dimensional data arrays. More...

static DataArray1D	operator- (DataArray1D dataArray1, DataArray1D dataArray2)
	Implements the operator - for subtraction of two one-dimensional data arrays. More...

static DataArray1D	operator/ (DataArray1D dataArray1, DataArray1D dataArray2)
	Implements the operator / for division of two one-dimensional data arrays. More...

static bool	operator== (DataArray1D da1, DataArray1D da2)
	Checks whether two DataArray1D objects are equal. More...

Properties
double	BiggestCoordinateStep `[get]`
	Gets the biggest occurring distance between two neighbored coordinates. (So in the equidistant case, this is identical to SamplingDistance.)

virtual string	CommentOfCoordinates `[get, set]`
	Get and set the comment for the coordinates

override string[]	CommentsOfDataEntries `[get, set]`
	Get and set the comments for each data subset.

virtual double	CoordinateOfFirstDataPoint `[get, set]`
	Gets and sets the coordinate of the first data point.

double	CoordinateOfLastDataPoint `[get]`
	Gets the coordinate of the last data point

double	CoordinateOfLastIntervalsUpperLimit `[get, set]`
	Get and set the coordinate of the last interval's upper limit. This is needed if non equidistantly sampled data shall be interpolated with the method 'ConstantInterval'. For this method the data are assumed to be constant in each interval which is given by [coordinate(i), coordinate(i+1)[, where i is the data point index. So the width of the last interval has to be defined separately by [coordinate(NoOfDataPoints-1), CoordinateOfLastIntervalsUpperLimit[.

ComplexField1DArray	Data `[get, set]`
	Get and set the data in C^N. Each single 1D ComplexField in this array holds one data subset, i.e. the complete set of data for one data dimension \(i\) ( \(1 \leq i \leq N\)).

override DataArrayType	DataArrayType `[get]`
	public property to get the data array type of the current data array

override int	DimensionalityOfCoordinates `[get]`
	Dimensionality M of the space of independent variables R^M, which is always 1 for DataArray1D.

override int	DimensionalityOfData `[get]`
	Dimensionality of the space of data values C^N, i.e. the number of subsets N.

ExtrapolationInfo	ExtrapolationHandling `[get, set]`
	The extrapolation handling.

virtual InterpolationMethod	InterpolationMethodForEquidistantSampling `[get, set]`
	Get and set the method used for interpolation in case of equidistant sampling

InterpolationMethodForNonequidistantData	InterpolationMethodForNonequidistantSampling `[get, set]`
	Gets and sets the method used for interpolation in case of non equidistant sampling. For the method 'ConstantInterval' the data are assumed to be constant in each interval which is given by [coordinate(i), coordinate(i+1)[, where i is the data point index. So the width of the last interval has to be defined separately by [coordinate(NoOfDataPoints-1), CoordinateOfLastIntervalsUpperLimit[.

override bool	IsComplex `[get]`
	Are the values defined in C^N (TRUE) or in the subset of real numbers R^N (FALSE)? Returns TRUE if any of the data entries is complex.

virtual bool	IsEquidistant `[get, set]`
	Get and set whether the data are sampled equidistantly.

CFieldDerivative1DReal	NonequidistantCoordinates `[get, set]`
	Get and set the coordinates for the data in R^1. IMPORTANT: This property applies for non equidistant data only! If you need to get the coordinate for one index for equidistant as well as for non equidistant data, use the method CoordinateOfDataPointIndex(long index) instead! For setting pay attention to the following restrictions: value must not be complex and value.SamplingPointsOneD has to be equal to NoOfDataPoints.

int	NoOfDataPoints `[get]`
	Get the number of data values stored.

override bool	NoSmoothingInterpolationMethod `[get]`
	Gets a flag indicating whether or not the interpolation method isn't smoothing (like nearest neighbor or constant interval) -> TRUE or if it does (like all other methods) -> FALSE

override PhysicalProperty[]	PhysicalPropertiesOfDataEntries `[get, set]`
	Get and set the physical properties of each data subset.

virtual PhysicalProperty	PhysicalPropertyOfCoordinates `[get, set]`
	Get and set the physical property for the coordinates

override PrecisionMode	Precision `[get]`
	Get the highest occurring precision of the data.

virtual double	SamplingDistance `[get, set]`
	Gets and sets the sampling distance for (and only for) equidistantly sampled data.

double	SmallestCoordinateStep `[get]`
	Gets the smallest occurring distance between two neighbored coordinates. (So in the equidistant case, this is identical to SamplingDistance.)

Properties inherited from DataArrayBase
Dictionary< string, object >	AdditionalInformation `[get, set]`
	Additional information to be stored at the data array.

abstract string[]	CommentsOfDataEntries `[get, set]`
	Get and set the comment for each dimension in C^N.

abstract int	DimensionalityOfCoordinates `[get]`
	Dimensionality M of the space of independent variables R^M

abstract int	DimensionalityOfData `[get]`
	Dimensionality N of the space of data values C^N

UI.DataVisualization.GraphicsAddOnData	GraphicsAddons `[get, set]`
	The graphics add-on data to be drawn.

abstract bool	IsComplex `[get]`
	Are the values defined in C^N (TRUE) or in the subset of real numbers R^N (FALSE)

abstract bool	NoSmoothingInterpolationMethod `[get]`
	Gets a flag indicating whether or not none of the interpolation methods is smoothing (like nearest neighbor or constant interval) -> TRUE But if one of the methods does (like all other methods) -> the flag is set to FALSE

PhysicalMeaning	PhysicalMeaning `[get, set]`
	Gets and sets the physical meaning of the data array object (default: None)

abstract PhysicalProperty[]	PhysicalPropertiesOfDataEntries `[get, set]`
	Get and set the physical property for each dimension in C^N

abstract PrecisionMode	Precision `[get]`
	Get the highest occurring precision of the data.

Properties inherited from IDocument
VirtualLabSession	Session `[get, set]`
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession

NodeVLExplorer	TreeStructure `[get]`
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer

DocumentType	TypeOfDocument `[get]`
	Gets an enum entry specifying the type of the document.

Additional Inherited Members
Static Public Attributes inherited from DataArrayBase
static string	AdditionalInfoName_SingleWavelength
	Key to be used in the additional information list in order to identify a single wavelength which applies to all subsets.

static string	AdditionalInfoName_SphericalModulationFlag
	Key to be used in the additional information list in order to identify the flag which tells whether or not the modulation of a EquidistantDataBased2DFieldGenerator is defined in spherical coordinates.

static string	AdditionalInfoName_WavelengthPerSubset
	Key to be used in the additional information list in order to identify an array of wavelengths where every value applies to one subset.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class for objects that store data in C^N which are equidistant or non equidistant distributed in R^1

Constructor & Destructor Documentation

◆ DataArray1D() [1/5]

DataArray1D	(	ComplexField1DArray	data,
		PhysicalProperty[]	physicalPropertiesOfData,
		string[]	commentsOfData,
		CFieldDerivative1DReal	coordinates,
		PhysicalProperty	physicalPropertyOfCoordinates,
		string	commentOfCoordinates,
		double	coordinateOfLastIntervalsUpperLimit,
		ExtrapolationInfo	extrapolation = `null`,
		InterpolationMethodForNonequidistantData	interpolation = `InterpolationMethodForNonequidistantData.ConstantInterval`
	)

Constructor for non-equidistant data.

Parameters

data	The data in C^N. Each single 1D ComplexField in this array holds one data subset, i.e. the complete set of data for one data dimension \(i\) ( \(1 \leq i \leq N\)).
physicalPropertiesOfData	Physical properties of each data subset.
commentsOfData	Comments for each data subset.
coordinates	Non-equidistant coordinates for the data in R^1.
physicalPropertyOfCoordinates	Physical property for the coordinates
commentOfCoordinates	Comment for the coordinates
coordinateOfLastIntervalsUpperLimit	Coordinate of the last interval's upper limit.
extrapolation	Optional information about how extrapolation of the data shall be done. By default border value continuation is done.
interpolation	The interpolation method to be used.

◆ DataArray1D() [2/5]

DataArray1D	(	double	coordinatesAndData[,],
		PhysicalProperty	physicalPropertyOfData,
		string	commentOfData,
		PhysicalProperty	physicalPropertyOfCoordinates,
		string	commentOfCoordinates,
		double	coordinateOfLastIntervalsUpperLimit,
		ExtrapolationInfo	extrapolation = `null`,
		InterpolationMethodForNonequidistantData	interpolation = `InterpolationMethodForNonequidistantData.ConstantInterval`
	)

Special constructor for non-equidistant data, that are stored in a double[,] array. Only one subset is used, i.e. N = 1.

Parameters

coordinatesAndData	The coordinates and the real valued data. The method determines automatically whether the array is organized as [2,n] or [n,2], with n = number of data points. The coordinates have to be stored in [0,n] or [n,0] and the data have to be stored in [1,n] or [n,1].
physicalPropertyOfData	Physical properties of each data subset.
commentOfData	Comments for each data subset.
physicalPropertyOfCoordinates	Physical property for the coordinates
commentOfCoordinates	Comment for the coordinates
coordinateOfLastIntervalsUpperLimit	Coordinate of the last interval's upper limit.
extrapolation	Optional information about how extrapolation of the data shall be done. By default border value continuation is done.
interpolation	The interpolation method to be used.

◆ DataArray1D() [3/5]

DataArray1D	(	double[]	data,
		PhysicalProperty	physicalPropertyOfData,
		string	commentOfData,
		double	samplingDistance,
		double	coordinateOfFirstDataPoint,
		PhysicalProperty	physicalPropertyOfCoordinates,
		string	commentOfCoordinates,
		ExtrapolationInfo	extrapolation = `null`,
		InterpolationMethod	interpolation = `InterpolationMethod.Nearest`
	)

Special constructor for equidistant data, that are stored in a double[] array. Only one subset is used, i.e. N = 1.

Parameters

data	The data in C^1. The double values will be filled into one real valued subset.
physicalPropertyOfData	Physical properties of each data subset.
commentOfData	Comments for each data subset.
samplingDistance	Sampling distance for (and only for) equidistantly sampled data.
coordinateOfFirstDataPoint	Coordinate of the first data point Data[0] for (and only for) equidistantly sampled data.
physicalPropertyOfCoordinates	Physical property for the coordinates
commentOfCoordinates	Comment for the coordinates
extrapolation	Optional information about how extrapolation of the data shall be done. By default border value continuation is done.
interpolation	The interpolation method to be used.

◆ DataArray1D() [4/5]

DataArray1D	(	ComplexField1DArray	data,
		PhysicalProperty[]	physicalPropertiesOfData,
		string[]	commentsOfData,
		double	samplingDistance,
		double	coordinateOfFirstDataPoint,
		PhysicalProperty	physicalPropertyOfCoordinates,
		string	commentOfCoordinates,
		ExtrapolationInfo	extrapolation = `null`,
		InterpolationMethod	interpolation = `InterpolationMethod.Nearest`
	)

Constructor for equidistant data

Parameters

data	The data in C^N. Each single 1D ComplexField in this array holds one data subset, i.e. the complete set of data for one data dimension \(i\) ( \(1 \leq i \leq N\)).
physicalPropertiesOfData	Physical properties of each data subset.
commentsOfData	Comments for each data subset.
samplingDistance	Sampling distance for (and only for) equidistantly sampled data.
coordinateOfFirstDataPoint	Coordinate of the first data point Data[0] for (and only for) equidistantly sampled data.
physicalPropertyOfCoordinates	Physical property for the coordinates
commentOfCoordinates	Comment for the coordinates
extrapolation	Optional information about how extrapolation of the data shall be done. By default border value continuation is done.
interpolation	The interpolation method to be used.

Exceptions

ArgumentException Empty data. or Sampling Distance has to be greater than zero.

◆ DataArray1D() [5/5]

DataArray1D ( DataArray1D dataArray )

Copy constructor

Parameters

dataArray Data array to copy

Member Function Documentation

◆ AppendDataArray1D()

void AppendDataArray1D	(	DataArray1D	arrayToAppend,
		bool	coordinateOfLastIntervalsUpperLimitDeterminesPosition
	)

Appends a given data array to this.

Parameters

arrayToAppend	Array to append to this one.
coordinateOfLastIntervalsUpperLimitDeterminesPosition	Shall this.CoordinateOfLastIntervalsUpperLimit determine the position of the appended data array?

◆ Clone()

override object Clone ( )

Deep copy

Returns: Copy of data array

◆ CoordinateOfDataPointIndex()

double CoordinateOfDataPointIndex ( long index )

Gives the coordinate of a certain data point as double.

Parameters

index Index of the data point to get the coordinate for.

Returns: Coordinate of the data point as double

◆ CoordinateOfDataPointIndex_asPValue()

PhysicalValue CoordinateOfDataPointIndex_asPValue ( long index )

Gives the coordinate of a certain data point as PhysicalValue.

Parameters

index Index of the data point to get the coordinate for.

Returns: Coordinate of the data point as PhysicalValue

◆ EmbedExtract()

virtual void EmbedExtract ( int numberOfDataPoints )

virtual

Method to perform an embed/extract operation on the data array.

Parameters

numberOfDataPoints The number of the data points to be used for the embed/extract operation. If it is greater than this.NoOfDataPoints, the data array will be embedded, otherwise the given number of data points will be extracted.

◆ Equals()

override bool Equals	(	object	obj,
		EqualityIntent	equalityIntent
	)

Checks whether two DataArray1D objects are equal.

Parameters

obj	The System.Object to compare with this instance.
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns: true if the specified System.Object is equal to this instance; otherwise, false.

◆ EquidistantToNonEquidistant()

virtual void EquidistantToNonEquidistant ( bool forNN_convertCenterCoordinateInsteadOfIntervalBorder )

virtual

If this data array is equidistant, this conversion method makes it non equidistant. This is done by calculating the member NonequidistantCoordinates from CoordinateOfFirstDataPoint, SamplingDistance and the respective index.

Parameters

forNN_convertCenterCoordinateInsteadOfIntervalBorder In case an equidistant data array is given, it is to be converted into a non-equidistant one. This will take the interpolation method into account, which means that for Nearest-Neighbor interpolation the interval boundaries are converted instead of the original coordinates. This flag will prevent this if set to true and will ensure that the original coordinates are converted. This is usually needed for subsequent coordinate transformations only.

◆ GetCoordinateRange()

PhysicalValueRange GetCoordinateRange ( bool boundaryExtrapolation )

Gets the whole range of coordinates (coordinate extent).

Parameters

boundaryExtrapolation If set, the method works as if the interpolation method were set to Nearest Neighbor or Constant Interval, resp. That means for equidistant data an extrapolation of half a sampling distance below the coordinates minimum and above the coordinates maximum. For non equidistant data it means an extrapolation between the coordinates maximum and CoordinateOfLastIntervalsUpperLimit. If the interpolation method is Nearest Neighbor or Constant Interval resp., this flag has no meaning, because extrapolation will be done anyway. If the 'array size' (range between first and last data point's coordinate) is needed for Nearest Neighbor or Constant Interval, it has to be calculated from CoordinateOfFirstDataPoint and CoordinateOfLastDataPoint.

Returns: The coordinate range.

◆ HeaderInformation()

override string HeaderInformation	(	int	subSetID,
		TextExportImportSettings	exportSettings,
		FieldQuantity?	quantityForInformation = `null`
	)

Public method to get the export header (data meaning and sampling parameters) for a specific data array.

Parameters

subSetID	The ID of the subset for which the header information shall be extracted.
exportSettings	The text export settings (header indicator, decimal separator and so on).
quantityForInformation	Optional FieldQuantity for which the header information shall be generated.

Returns: The export header string for the subset within the DataArray which has the subSetID.

◆ IndexOfDataPointAtCoordinate() [1/2]

long IndexOfDataPointAtCoordinate	(	double	coord,
		bool	enforceSteppedInterpolation,
		out bool	coordinatesOutsideGivenIndexRange
	)

Method to get the index of that data point which corresponds to a given coordinate.

Parameters

coord	coordinate to get the corresponding data point's index for
enforceSteppedInterpolation	If `true`, a stepped interpolation (i.e. Nearest Neighbor or Constant Interval) will be used, no matter what the DataArrays own interpolation method is.
coordinatesOutsideGivenIndexRange	flag indicating whether the given coordinate lies outside the valid range (defined by the number of data points)

Returns: the index of that data point which corresponds to the given coordinate

◆ IndexOfDataPointAtCoordinate() [2/2]

long IndexOfDataPointAtCoordinate	(	double	coord,
		long	startIndex,
		long	endIndex,
		bool	enforceSteppedInterpolation,
		out bool	coordinatesOutsideGivenIndexRange
	)

Method to get the index of that data point which corresponds to a given coordinate.

Parameters

coord	coordinate to get the corresponding data point's index for
startIndex	index to begin the search at
endIndex	index to stop the search at
enforceSteppedInterpolation	If `true`, a stepped interpolation (i.e. Nearest Neighbor or Constant Interval) will be used, no matter what the DataArrays own interpolation method is.
coordinatesOutsideGivenIndexRange	flag indicating whether the given coordinate lies outside the valid range (defined by startIndex and endIndex)

Returns: the index of that data point which corresponds to the given coordinate

◆ MultiplyFactorOnData()

void MultiplyFactorOnData ( double factor )

Public method to multiply a factor onto all data subsets.

Parameters

factor The factor which shall be used for multiplication

◆ operator!=()

static bool operator!=	(	DataArray1D	da1,
		DataArray1D	da2
	)

static

Checks whether two DataArray1D objects are unequal.

Parameters

da1	The first data array.
da2	The second data array.

Returns: True if the two data arrays differ in at least one property or variable.

◆ operator*()

static DataArray1D operator*	(	DataArray1D	dataArray1,
		DataArray1D	dataArray2
	)

static

Implements the operator * for multiplication of two one-dimensional data arrays.

Parameters

dataArray1	The first factor.
dataArray2	The second factor.

Returns: The result of the multiplication.

◆ operator+()

static DataArray1D operator+	(	DataArray1D	dataArray1,
		DataArray1D	dataArray2
	)

static

Implements the operator + for addition of two one-dimensional data arrays.

Parameters

dataArray1	The first summand.
dataArray2	The second summand.

Returns: The result of the addition.

◆ operator-()

static DataArray1D operator-	(	DataArray1D	dataArray1,
		DataArray1D	dataArray2
	)

static

Implements the operator - for subtraction of two one-dimensional data arrays.

Parameters

dataArray1	The minuend.
dataArray2	The subtrahend.

Returns: The result of the subtraction.

◆ operator/()

static DataArray1D operator/	(	DataArray1D	dataArray1,
		DataArray1D	dataArray2
	)

static

Implements the operator / for division of two one-dimensional data arrays.

Parameters

dataArray1	The dividend.
dataArray2	The divisor.

Returns: The result of the division.

◆ operator==()

static bool operator==	(	DataArray1D	da1,
		DataArray1D	da2
	)

static

Checks whether two DataArray1D objects are equal.

Parameters

da1	The first data array.
da2	The second data array.

Returns: True if the two data arrays represent exactly the same data.

◆ PointInterpolation() [1/2]

virtual Complex[] PointInterpolation	(	double	coord,
		bool	enforceSteppedInterpolation,
		long	startIndex,
		long	endIndex,
		out long	correspondingDataPointIndex,
		out bool	coordinateOutsideCoordinateRange
	)

virtual

Gives the interpolated complex value for a given coordinate.

Parameters

coord	coordinate to interpolate the value for
enforceSteppedInterpolation	If `true`, a stepped interpolation (i.e. Nearest Neighbor or Constant Interval) will be used, no matter what the DataArrays own interpolation method is.
startIndex	Start index for search
endIndex	End index for search
correspondingDataPointIndex	Gives the index of the corresponding data point.
coordinateOutsideCoordinateRange	Flag indicating whether or not the given coordinate lies outside the coordinate range of this data array.

Returns: interpolated complex value for the given coordinate

◆ PointInterpolation() [2/2]

virtual Complex[] PointInterpolation	(	double	coord,
		bool	enforceSteppedInterpolation,
		out long	correspondingDataPointIndex,
		out bool	coordinateOutsideCoordinateRange
	)

virtual

Gives the interpolated complex value for a given coordinate.

Parameters

coord	coordinate to interpolate the value for
enforceSteppedInterpolation	If `true`, a stepped interpolation (i.e. Nearest Neighbor or Constant Interval) will be used, no matter what the DataArrays own interpolation method is.
correspondingDataPointIndex	Gives the index of the corresponding data point.
coordinateOutsideCoordinateRange	Flag indicating whether or not the given coordinate lies outside the coordinate range of this data array.

Returns: interpolated complex value for the given coordinate

◆ Save()

override void Save ( string fileName )

Save this data array to a file with a given name.

Parameters

fileName Name to save this data array to.

◆ SetDataWithPropertiesAndCommentsAtOnce()

void SetDataWithPropertiesAndCommentsAtOnce	(	ComplexField1DArray	data,
		PhysicalProperty[]	properties,
		string[]	comments
	)

Sets the members Data, PhysicalPropertiesOfDataEntries and CommentsOfDataEntries at once to ensure consistency.

Parameters

data	Data to set.
properties	PhysicalPropertiesOfDataEntries to set.
comments	CommentsOfDataEntries to set.

◆ ShiftCoordinates()

virtual void ShiftCoordinates ( double coordinateShift )

virtual

Public method to perform a shift on the coordinates of the data array.

Parameters

coordinateShift The value of the shift to be performed.

◆ TransformCoordinates()

DataArray1D TransformCoordinates	(	RealFunctionWithSingleArgument	trafo,
		bool	forNN_convertCenterCoordinateInsteadOfIntervalBorder,
		double	lastIntervalSizeForSpecialHandlingOfDiscontinuity
	)

Method for transforming this data array's coordinates using a transform function .

Parameters

trafo	Delegate for the function to be used for the coordinates transformation. IMPORTANT: the transformation function has to be strictly monotonic (in the coordinates domain of definition)!
forNN_convertCenterCoordinateInsteadOfIntervalBorder	In case an equidistant data array is given, it is to be converted into a non-equidistant one. This will take the interpolation method into account, which means that for Nearest-Neighbor interpolation the interval boundaries are converted instead of the original coordinates. This flag will prevent this if set to `true` and will ensure that the original coordinates are converted.
lastIntervalSizeForSpecialHandlingOfDiscontinuity	In case of an original data array which is 1) non-equidistant, 2) non-constantly interpolated, 3) extrapolated with a constant, there may occur a discontinuity at the first coordinate (= jump from the extrapolation constant to the value of the first coordinate). If such a data array shall be transformed with a function which is monotonic decreasing, this discontinuity/jump cannot be preserved, due to the nature of the data storage in data arrays. This parameter will provide an additional interval size within which the value of the last coordinate (formerly first coordinate) will change to the extrapolation constant instead of jumping.

Returns: Data array with transformed coordinates.

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DataArray1D() [1/5]

◆ DataArray1D() [2/5]

◆ DataArray1D() [3/5]

◆ DataArray1D() [4/5]

◆ DataArray1D() [5/5]

Member Function Documentation

◆ AppendDataArray1D()

◆ Clone()

◆ CoordinateOfDataPointIndex()

◆ CoordinateOfDataPointIndex_asPValue()

◆ EmbedExtract()

◆ Equals()

◆ EquidistantToNonEquidistant()

◆ GetCoordinateRange()

◆ HeaderInformation()

◆ IndexOfDataPointAtCoordinate() [1/2]

◆ IndexOfDataPointAtCoordinate() [2/2]

◆ MultiplyFactorOnData()

◆ operator!=()

◆ operator*()

◆ operator+()

◆ operator-()

◆ operator/()

◆ operator==()

◆ PointInterpolation() [1/2]

◆ PointInterpolation() [2/2]

◆ Save()

◆ SetDataWithPropertiesAndCommentsAtOnce()

◆ ShiftCoordinates()

◆ TransformCoordinates()
