DataArrayBase Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Abstract class for storing a map R^M → C^N More...

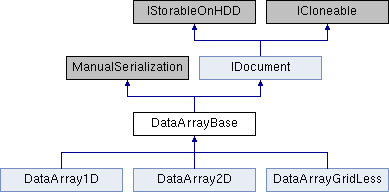

Inheritance diagram for DataArrayBase:

Public Member Functions
	DataArrayBase ()
	Standard constructor used for manual serialization
	DataArrayBase (DataArrayBase copyDA)
	copy constructor More...
Public Member Functions inherited from IDocument
void	Reload ()
	Reload function for the document

Static Public Attributes
static string	AdditionalInfoName_SingleWavelength
	Key to be used in the additional information list in order to identify a single wavelength which applies to all subsets.
static string	AdditionalInfoName_SphericalModulationFlag
	Key to be used in the additional information list in order to identify the flag which tells whether or not the modulation of a EquidistantDataBased2DFieldGenerator is defined in spherical coordinates.
static string	AdditionalInfoName_WavelengthPerSubset
	Key to be used in the additional information list in order to identify an array of wavelengths where every value applies to one subset.

Properties
Dictionary< string, object >	AdditionalInformation [get, set]
	Additional information to be stored at the data array.
abstract string[]	CommentsOfDataEntries [get, set]
	Get and set the comment for each dimension in C^N.
abstract int	DimensionalityOfCoordinates [get]
	Dimensionality M of the space of independent variables R^M
abstract int	DimensionalityOfData [get]
	Dimensionality N of the space of data values C^N
UI.DataVisualization.GraphicsAddOnData	GraphicsAddons [get, set]
	The graphics add-on data to be drawn.
abstract bool	IsComplex [get]
	Are the values defined in C^N (TRUE) or in the subset of real numbers R^N (FALSE)
abstract bool	NoSmoothingInterpolationMethod [get]
	Gets a flag indicating whether or not none of the interpolation methods is smoothing (like nearest neighbor or constant interval) -> TRUE But if one of the methods does (like all other methods) -> the flag is set to FALSE
PhysicalMeaning	PhysicalMeaning [get, set]
	Gets and sets the physical meaning of the data array object (default: None)
abstract PhysicalProperty[]	PhysicalPropertiesOfDataEntries [get, set]
	Get and set the physical property for each dimension in C^N
abstract PrecisionMode	Precision [get]
	Get the highest occurring precision of the data.
Properties inherited from IDocument
VirtualLabSession	Session [get, set]
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession
NodeVLExplorer	TreeStructure [get]
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer
DocumentType	TypeOfDocument [get]
	Gets an enum entry specifying the type of the document.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Abstract class for storing a map R^M → C^N

Constructor & Destructor Documentation

DataArrayBase()

DataArrayBase

(

DataArrayBase

copyDA

)

copy constructor

Parameters

copyDA

Data array which shall be copied.
