class for a double value with a physical unit. More...

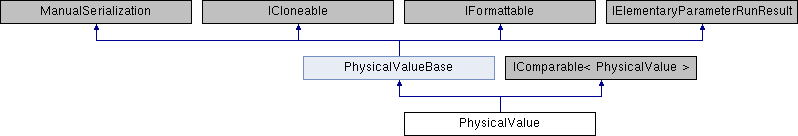

Inheritance diagram for PhysicalValue:

Public Member Functions
	PhysicalValue (double value, PhysicalProperty physicalProperty)
	Default constructor More...

	PhysicalValue (double value, PhysicalProperty physicalProperty, string comment)
	Constructor with a comment string. More...

	PhysicalValue (PhysicalValue physicalValue)
	Copy constructor More...

	PhysicalValue (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details. More...

override string	ToString ()
	Overridden ToString function. The PhysicalValue is formatted like "1 nm". More...

override string	ToString (int significantDigits)
	Overridden ToString function. The PhysicalValue is formatted like "1 nm". More...

override string	ToString (string format, IFormatProvider formatProvider=null)
	Overridden ToString function provided by the IFormattable interface. Returns a System.String that represents this instance. More...

Public Member Functions inherited from PhysicalValueBase
override bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance. More...

Complex	GetComplexValue ()
	Gets the actual value as a complex number. More...

	PhysicalValueBase (PhysicalProperty physicalProperty)
	Standard constructor More...

	PhysicalValueBase (PhysicalProperty physicalProperty, string comment)
	Standard constructor More...

	PhysicalValueBase (PhysicalValueBase physicalValueBase)
	Copy constructor More...

	PhysicalValueBase (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details. More...

abstract string	ToString (int significantDigits)
	Returns a System.String that represents this instance. More...

abstract string	ToString (string format, IFormatProvider formatProvider=null)
	ToString function provided by the IFormattable interface. Returns a System.String that represents this instance. More...

Static Public Member Functions
static bool	operator!= (PhysicalValue value1, PhysicalValue value2)
	Compares two PhysicalValue for inequality. The comparison will be done by comparing the values, units, and comments, respectively. More...

static bool	operator== (PhysicalValue value1, PhysicalValue value2)
	Compares two PhysicalValue for equality. The comparison will be done by comparing the values, units, and comments, respectively. More...

Static Public Member Functions inherited from PhysicalValueBase
static string	GetFormatString (bool showPhysicalUnits, int numberOfDigits, ComplexToStringConversionFormat? complexNumberFormat=null)
	Gets the format string which can be used for the ToString method. More...

Properties
virtual double	Value `[get, set]`
	The value of the PhysicalValue.

Properties inherited from PhysicalValueBase
object	ActualParameterRunResult `[get]`
	Gets the actual parameter run result.

string	Comment `[get, set]`
	A comment specifying what the PhysicalValue actually is.

virtual PhysicalProperty	PhysicalProperty `[get, set]`
	The unit of the PhysicalValue.

Detailed Description

class for a double value with a physical unit.

Constructor & Destructor Documentation

◆ PhysicalValue() [1/4]

PhysicalValue	(	double	value,
		PhysicalProperty	physicalProperty
	)

Default constructor

Parameters

value	The value of the PhysicalValue.
physicalProperty	The unit of the PhysicalValue.

◆ PhysicalValue() [2/4]

PhysicalValue	(	double	value,
		PhysicalProperty	physicalProperty,
		string	comment
	)

Constructor with a comment string.

Parameters

value	The value of the PhysicalValue.
physicalProperty	The unit of the PhysicalValue.
comment	A comment specifying what the PhysicalValue actually is.

◆ PhysicalValue() [3/4]

PhysicalValue ( PhysicalValue physicalValue )

Copy constructor

Parameters

physicalValue PhysicalValue to copy

◆ PhysicalValue() [4/4]

PhysicalValue	(	SerializationInfo	info,
		StreamingContext	context
	)

Deserialization constructor. See the ISerializable interface for more details.

Parameters

info	SerializationInfo
context	StreamingContext

Member Function Documentation

◆ operator!=()

static bool operator!=	(	PhysicalValue	value1,
		PhysicalValue	value2
	)

static

Compares two PhysicalValue for inequality. The comparison will be done by comparing the values, units, and comments, respectively.

Parameters

value1	First PhysicalValue object to compare.
value2	Second PhysicalValue object to compare.

Returns: Returns true if the two objects are unequal.

◆ operator==()

static bool operator==	(	PhysicalValue	value1,
		PhysicalValue	value2
	)

static

Compares two PhysicalValue for equality. The comparison will be done by comparing the values, units, and comments, respectively.

Parameters

value1	First PhysicalValue object to compare.
value2	Second PhysicalValue object to compare.

Returns: Returns true if the two objects are equal.

◆ ToString() [1/3]

override string ToString ( )

Overridden ToString function. The PhysicalValue is formatted like "1 nm".

Returns: The formatted value.

◆ ToString() [2/3]

override string ToString ( int significantDigits )

virtual

Overridden ToString function. The PhysicalValue is formatted like "1 nm".

Parameters

significantDigits The number of significant digits.

Returns: The formatted value.

Implements PhysicalValueBase.

◆ ToString() [3/3]

override string ToString	(	string	format,
		IFormatProvider	formatProvider = `null`
	)

virtual

Overridden ToString function provided by the IFormattable interface. Returns a System.String that represents this instance.

Parameters

format The format. "U" or an empty string means that the string is formatted with units (e.g. "1 nm"). "G" means that the string is formatted without units (e.g. "1e-9"). "F" means that the string is formatted as "{Comment} of {Value with units}" (e.g. "wavelength of 300 nm").

In all cases you can add a number to specify the number of digits that shall be used. E.g. "U3" results in "1.23 nm", while "U4" results in "1.234 nm". You can add further formatting commands after a comma, but these are ignored. This behavior ensures that the same formatting strings can be used for both PhysicalValue and PhysicalValueComplex.

For any other string the ToString(format, formatProvider) of the Value is used.

Parameters

formatProvider Optional culture specific format provider used for formatting the value (if format is not "U" or "F").

Returns: A System.String that represents this instance.

Implements PhysicalValueBase.
