SampledRegion2D Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes a region via sampled data. A data point marks its own small rectangular region as being 'inside' if its value is unequal zero. More...

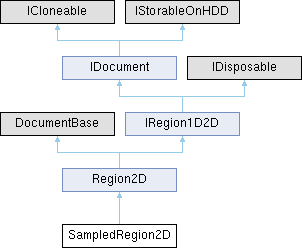

Inheritance diagram for SampledRegion2D:

Public Member Functions
override void	CalculateAxisAlignedBoundingBox ()
override object	Clone ()
	Deep copy of the object.
new void	DeserializationPostProcessing (ref List< System.Reflection.FieldInfo > unfindableFields, RemainingData remainingData)
	Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.
override void	Dispose ()
override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operator.
override int	GetHashCode ()
override InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary. A data point marks its own small rectangular region as being 'inside' if its value is unequal zero.
InsideOutside	InOutRelationForBorderPixelOfComposedRegion (VectorD point, RectanglePhysical boundingBoxOfParentComposedRegion)
	If a sampled region is used inside a composed region, we may need a special handling for the border pixels (i.e. near a given bounding box). See ITN.064 for more information on the mode 'border continuation'.
void	InterpolateRegionData (SamplingParameters newSampling)
	Interpolates the current sampled region data.
override void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.
	SampledRegion2D (bool initWithTemplateData)
	Default constructor creating a default sampled RegionData object, if wanted.
	SampledRegion2D (ComplexAmplitude signalRegion)
	Constructor getting an old signal region (represented by ComplexAmplitude) as parameter.
	SampledRegion2D (DataArray2D regionData)
	Constructor which gets the sampled region data as data array.
	SampledRegion2D (Region2D region, SamplingParameters sp,(bool centerX, bool centerY, bool nodeCentering) centerAroundZero)
	Constructor converting a non sampled region to a sampled one.
	SampledRegion2D (SampledRegion2D regionToCopy)
	Copy constructor.
void	SetRegionData (DataArray2D regionData2bSet, bool cloneData, bool enforceValidity)
	Sets the sampled region data.
override void	UpdatePropertyOfCoordinates ()
	Method for handling update after change of the physical property of the coordinate.
Public Member Functions inherited from Region2D
void	CalculateAxisAlignedBoundingBox ()
	Method for (re)calculating the axis aligned bounding box.
override object	Clone ()
	Clones the current object.
override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operation.
override int	GetHashCode ()
InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary.
override FormDocument	GetNewDocumentWindow (Form formMain, string fileName)
	Gets a new document window containing this document. Parameters formMain Reference to the main form (= MDI parent). Can be null if this form will not be shown (e.g. if it is generated just to get the view settings. fileName File name from which the document was opened for inserting into window caption. If this string is empty, the default document name is used. Returns A FormDocument containing this document.
bool	IsInside (double pointX, double pointY)
	Method which checks whether or not a point is inside the 2D region.
bool	IsInside (VectorD point)
	Method which checks whether or not a point is inside the 2D region.
void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.
	Region2D (bool boundariesAreInside, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor which gets the _boundariesAreInside flag. To be called from derived classes constructors.
	Region2D (Region2D region2bCopied)
	Copy constructor.

Static Public Member Functions
static DataArray2DRestrictions	GetRegionDataRestrictions ()
	Method which gets the restrictions which apply to the RegionData object.
static bool	operator!= (SampledRegion2D o1, SampledRegion2D o2)
	Unequals operator.
static bool	operator== (SampledRegion2D o1, SampledRegion2D o2)
	Equals operator.
Static Public Member Functions inherited from Region2D
static Region2D	InvertRegion (Region2D region2Invert)
	Creates a new region with inverted in / out regions compared to this.
static Region2D	Load (string fileName)
	Loads the specified file name. Works independently from whether the document has been saved without view settings (as prior to VL 6.0) or with view settings.
static bool	operator!= (Region2D o1, Region2D o2)
	Unequals operator.
static bool	operator== (Region2D o1, Region2D o2)
	Equals operator.

Properties
DataArray2D	RegionData [get]
	Get or set the sampled region data. All values unequal zero will be interpreted as 'inside' the region. The other values will mark areas 'outside'.
Properties inherited from Region2D
RectanglePhysical	AxisAlignedBoundingBox [get]
	Gets the bounding box for the 2D region. Its sides are parallel to the x- and y-axis resp.
bool	BoundariesAreInside [get, set]
	Gets or sets whether or not the boundaries of the region belong to the inner region.
string	CommentOfCoordinates_X [get, set]
	Gets and sets the comment for the x-coordinates.
string	CommentOfCoordinates_Y [get, set]
	Gets and sets the comment for the y-coordinates.
ExtrapolationInfo	ExtrapolationHandling [get, set]
	The extrapolation mode for this region. See ITN.064 for more information on the mode 'border continuation'.
bool	IsOneD [get]
	Gets whether this IRegion1D2D is 1D or 2D.
string	Name [get, set]
	The name which can be given to the region by the user.
PhysicalProperty	PropertyOfCoordinatesX [get, set]
	Physical property of the x-coordinates of the region.
PhysicalProperty	PropertyOfCoordinatesY [get, set]
	Physical property of the y-coordinates of the region.
Region2DType	RegionType [get]
	Gets the type of the region.
SamplingParameters	SamplingForUsageWithComplexFields [get, set]
	Sampling parameters which will be used for a coordinate rescaling in case of using the region with a complex field.
Properties inherited from IDocument
VirtualLabSession	Session [get, set]
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession
NodeVLExplorer	TreeStructure [get]
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer
DocumentType	TypeOfDocument [get]
	Gets an enum entry specifying the type of the document.

Additional Inherited Members
Static Public Attributes inherited from Region2D
const string	DefaultDocumentName
	The default document name (= type description) for an Order Collection.
static readonly string	FileDialogFilterString
	The filter string used in "Open File" dialogs.
const string	FileExtensionString
	The file extension for an Order Collection.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes a region via sampled data. A data point marks its own small rectangular region as being 'inside' if its value is unequal zero.

Constructor & Destructor Documentation

SampledRegion2D() [1/5]

SampledRegion2D

(

bool

initWithTemplateData

)

Default constructor creating a default sampled RegionData object, if wanted.

Parameters

initWithTemplateData

If true, the sampled data will be initialized with template data.

SampledRegion2D() [2/5]

SampledRegion2D

(

DataArray2D

regionData

)

Constructor which gets the sampled region data as data array.

Parameters

regionData

Sampled region data to be set.

SampledRegion2D() [3/5]

SampledRegion2D

(

SampledRegion2D

regionToCopy

)

Copy constructor.

Parameters

regionToCopy

SampledRegion2D to copy.

SampledRegion2D() [4/5]

SampledRegion2D	(	Region2D	region,
		SamplingParameters	sp,
		(bool centerX, bool centerY, bool nodeCentering)	centerAroundZero )

Constructor converting a non sampled region to a sampled one.

Parameters

region	Region to be sampled
sp	Sampling Parameters
centerAroundZero	If true, the sampled data will be centered around zero, otherwise the old region coordinates will be kept unchanged.

SampledRegion2D() [5/5]

SampledRegion2D

(

ComplexAmplitude

signalRegion

)

Constructor getting an old signal region (represented by ComplexAmplitude) as parameter.

Parameters

signalRegion

Member Function Documentation

Clone()

override object Clone

(

)

Deep copy of the object.

Returns

A deep copy of this.

DeserializationPostProcessing()

new void DeserializationPostProcessing	(	ref List< System.Reflection.FieldInfo >	unfindableFields,
		RemainingData	remainingData )

Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.

Parameters

unfindableFields	List of all those fields which are expected but could not be read from XML.
remainingData	Data contained in XML but which haven't been read yet.

Equals()

override bool Equals	(	object	obj,
		EqualityIntent	equalityIntent )

Equality operator.

Parameters

obj	The System.Object to compare with this instance.
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns

true if the specified System.Object is equal to this instance; otherwise, false.

GetInOutRelation()

override InsideOutside GetInOutRelation	(	VectorD	point,
		ExtrapolationInfo	extrapolation2use = null )

Method which checks whether or not a point lies inside or outside the 2D region or on its boundary. A data point marks its own small rectangular region as being 'inside' if its value is unequal zero.

Parameters

point	The point to be checked whether it lies inside.
extrapolation2use	Extrapolation info actually to be used.

Returns

Information where the point lies in relation to the region.

GetRegionDataRestrictions()

static DataArray2DRestrictions GetRegionDataRestrictions ( )

static

Method which gets the restrictions which apply to the RegionData object.

Returns

The restrictions which apply to the RegionData object.

InOutRelationForBorderPixelOfComposedRegion()

InsideOutside InOutRelationForBorderPixelOfComposedRegion	(	VectorD	point,
		RectanglePhysical	boundingBoxOfParentComposedRegion )

If a sampled region is used inside a composed region, we may need a special handling for the border pixels (i.e. near a given bounding box). See ITN.064 for more information on the mode 'border continuation'.

Parameters

point	Point near the borders of a given bounding box.
boundingBoxOfParentComposedRegion	Bounding box of the parenting composed region.

Returns

The InOut-relation for the given point.

InterpolateRegionData()

void InterpolateRegionData

(

SamplingParameters

newSampling

)

Interpolates the current sampled region data.

Parameters

newSampling

New sampling parameters of the sampled region data.

MayBeNonzeroOutside()

override void MayBeNonzeroOutside	(	out bool	maybeNonZeroLeft,
		out bool	maybeNonZeroRight,
		out bool	maybeNonZeroBottom,
		out bool	maybeNonZeroTop )

Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.

Parameters

maybeNonZeroLeft	True, if there may be nonzero values left of the bounding box.
maybeNonZeroRight	True, if there may be nonzero values right of the bounding box.
maybeNonZeroBottom	True, if there may be nonzero values below the bottom of the bounding box.
maybeNonZeroTop	True, if there may be nonzero values above the top of the bounding box.

operator!=()

static bool operator!= ( SampledRegion2D o1, SampledRegion2D o2 )

static

Unequals operator.

Parameters

o1	The first sampled region to compare
o2	The second sampled region to compare

Returns

true if both objects have unequal data.

operator==()

static bool operator== ( SampledRegion2D o1, SampledRegion2D o2 )

static

Equals operator.

Parameters

o1	The first sampled region to compare
o2	The second sampled region to compare

Returns

true if both objects have equal data.

SetRegionData()

void SetRegionData	(	DataArray2D	regionData2bSet,
		bool	cloneData,
		bool	enforceValidity )

Sets the sampled region data.

Parameters

regionData2bSet	Sampled data to be set. The data array has to fulfill some restrictions defined in the static method GetRegionDataRestrictions().
enforceValidity	If true, a data array not fulfilling the restrictions will be adapted so it does. if false, a data array not fulfilling the restrictions will cause an ArgumentException.
cloneData	If true, the regionData2bSet will be cloned first. This is also the case if regionData2bSet has wrong precision or doesn't fulfill the restrictions.
