This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
This class represents a complex amplitude of a wave (without time depending part) in a plane or a complex transmission function.
Both X and Y field components are stored. In general all functions are applied to both components.
The ComplexAmplitude class is used to represent globally polarized fields and transmissions, too.
The ComplexAmplitude class contains one or two ComplexField as mathematical representations for complex fields. See manual for details of physical interpretation.
The ComplexAmplitude class can contain some additional information about the radius (distance from the origin) of a spherical phase factor. Using this information field may contain a spherical phase factor that is undersampled. If the radius of the spherical phase factor is known, the whole complex amplitude at every point can be reconstructed. The radius of the spherical phase factor helps to reduce the number of sampling points. Functions that use the ComplexAmplitude class have to take into account this spherical phase information to avoid numerical errors.
Operators ( \(a+b\), \(a-b\), \(a*b\) and \(a/b\)) can be used. Passing \(a\) or \(b\) as Complex is supported. \(a^b\) can be applied for pointwise power function: \(a[x,y] ^ b\) \(b\) must be Complex. Operator \(a|b\) is used for calculation of inner product of two ComplexAmplitudes: \(a|b=\sum _{j=0}^{m}\sum _{i=0}^{n}a_{{i,j}}b_{{i,j}^{\star}}\) ( \(z^{\star}\) means conjugation of complex number.). More...

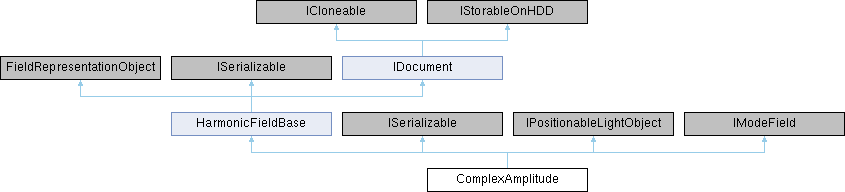

Inheritance diagram for ComplexAmplitude:

Public Member Functions
void	AddEqual (Complex c)
	Adds a complex number to current ComplexAmplitude. See important note on ComplexField.

void	AddEqual (ComplexAmplitude ca)
	Adds a given ComplexAmplitude to current one taking into account the spherical phase radius. The result is stored in the present ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

void	ApplyAnalyticallyLinearPhaseToDataPoints_withoutResampling (CancellationToken cancellationToken)
	public support method to apply the analytically linear phase value onto the data points

void	ApplyAnalyticallyQuadraticPhaseToDataPoints_withoutResampling (CancellationToken cancellationToken, bool enableAnalyticalLinearPhaseResultingFromOffset=false)
	public support method to apply the analytically quadratic phase value onto the data points

void	ApplyAperture (BasicParameter.eApertureShape shape, double absoluteEdgeWidth)
	Applies an aperture function to the ca.

void	ChangeFieldRepresentation (bool isComplex, PrecisionMode precison=PrecisionMode.Double)
	Changes field representation of current ComplexAmplitude, i.e. whether the field is complex and the PrecisionMode.

void	ClipAmplitude (double clippingLevel)
	Sets all amplitude values of current ComplexAmplitude greater than the clippingLevel to the clippingLevel.

override object	Clone ()
	Clones current ComplexAmplitude.

	ComplexAmplitude ()
	Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and 3x3 sampling points.

	ComplexAmplitude (ComplexAmplitude ca)
	Creates a clone of the given complex amplitude.

	ComplexAmplitude (HomogeneousMedium embeddingMedium)
	Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and 3x3 sampling points.

	ComplexAmplitude (Numerics.ComplexField field)
	Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given ComplexField.

	ComplexAmplitude (Numerics.ComplexField xField, Numerics.ComplexField yField)
	Constructs a locally polarized ComplexAmplitude with the default precision, default wavelength and given X and Y Component ComplexField objects.

	ComplexAmplitude (SamplingParameters samplingParameters, bool IsComplex, bool initializeValues=true)
	Constructs a globally polarized ComplexAmplitude using the default wavelength from the GlobalOptions and given Numerics.SamplingParameters.

	ComplexAmplitude (SamplingParameters samplingParameters, PrecisionMode precision, bool IsComplex, bool initializeValues=true)
	Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters.

	ComplexAmplitude (SamplingParameters samplingParameters, PrecisionMode precision, bool IsComplex, Func< double, double, double > f, ParallelizationType parallelizationType=ParallelizationType.AutomaticMeasure)
	Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters. Sampling points are initialized using given real function.

	ComplexAmplitude (SamplingParameters samplingParameters, PrecisionMode precision, Func< double, double, Complex > f, ParallelizationType parallelizationType=ParallelizationType.AutomaticMeasure)
	Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters. Sampling points are initialized using given complex function. The point (0 m; 0 m) will be placed in the center of the field.

	ComplexAmplitude (Vector SamplingPoints, bool initializeValues=true)
	Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given number of sampling points.

	ComplexAmplitude (Vector SamplingPoints, Complex c)
	Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given number of sampling points. All sampling points are set to given complex constant.

void	Conjugate ()
	Conjugates current ComplexAmplitude.

void	ConvertToLocallyPolarizedField ()
	Converts this instance to a locally polarized field (if this is not already the case).

void	DivEqual (Complex c)
	Divides current ComplexAmplitude by given complex number. See important note on ComplexField.

void	DivEqual (ComplexAmplitude ca)
	Divides current ComplexAmplitude by a given one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

void	EmbedCorner (Vector newSize)
	This ComplexAmplitude is embedded into sampling points having the value zero so that the resulting size is twice the original size. In contrast to the EmbedExtract(Vector) method, this method places the original field in the bottom left quadrant of the changed field, not in the center.

void	EmbedExtract ()
	This ComplexAmplitude is embedded centrically into sampling points having the value zero so that the resulting size is twice the original size.

ComplexAmplitude	EmbedExtract (Rectangle rectangle)
	Embeds current complex amplitude into the given rectangle.

void	EmbedExtract (Vector newSize)
	Changes this ComplexAmplitude to the given size.

override bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance.

ComplexAmplitude	Extract (Vector size, Vector position)
	Extracts the defined piece from the given ComplexAmplitude.

ComplexAmplitude	ExtractColumn (int colIndex, bool considerSphericalPhase)
	Extracts a column from the given ComplexAmplitude.

Complex	ExtractComplexValue (VectorD position, VectorialComponent comp)
	Public method to get a complex value for a defined physical position for a specified vectorial component.

ComplexAmplitude	ExtractDiagonal (double alpha)
	Extracts data from a diagonal line right through the center of the given ComplexAmplitude.

ComplexAmplitude	ExtractRow (int rowIndex, bool considerSphericalPhase)
	Extracts a row from the given ComplexAmplitude.

void	Fill (Complex c)
	Sets all pixels of this ComplexAmplitude to the given complex value.

void	Fill (Complex c, Rectangle marker, bool inside)
	Sets all pixels of this ComplexAmplitude to the given complex value.

Complex	GetAnalyticLinearPhaseValueAtPosition (double x, double y)
	function to get the complex value at a specific position

Complex	GetAnalyticLinearPhaseValueAtPosition (VectorD position)
	function to get the complex value at a specific position

override IEnumerable< ComplexAmplitude >	GetFields ()

VectorC	GetLocalFieldVector (int x, int y)
	Gets the field vector (Ex; Ey) at a certain position (x; y) in pixels. Only works for Harmonic Fields, not Transmissions.

void	HorizontalMirror_physicalCoordinates ()
	Performs a horizontal mirroring of current ComplexAmplitude. The physical coordinates origin is maintained.

void	HorizontalMirror_pixelCoordinates ()
	Performs a horizontal mirroring of current ComplexAmplitude. \([SamplingPoints.X - x - 1, y] = [x, y]\).

void	Insert (ComplexAmplitude ca, Vector position)
	Inserts the given ComplexAmplitude into current ComplexAmplitude at given position. Points exceeding boundaries will be ignored.

ComplexAmplitude	JonesMatrixMultiplication (Matrix2x2C m)
	Multiplies a ComplexAmplitude with a Matrix2x2C.

void	LiftPositive ()
	Lifts complex amplitude to positive. See ComplexField::LiftPositive() .

void	ModifyComplexPart (ComplexPart complexPart, bool makeRealValuedIfSuitable=false)
	Extracts, shifts or swaps complex part of current ComplexAmplitude. Current object is modified.

void	MultEqual (Complex c)
	Multiplies a complex number to current ComplexAmplitude. See important note on ComplexField.

void	MultEqual (ComplexAmplitude ca)
	Multiplies a given ComplexAmplitude to current one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

void	MultiplySphericalPhaseFactor (double newRadius, CancellationToken? cancellationToken=null)
	Samples a spherical phase factor with specified distance from source plane and sets the SphericalPhaseRadius property. Function uses the present sampling distance of the current ComplexAmplitude to sample spherical phase factor.

void	Normalize ()
	Normalizes ComplexAmplitude so that the maximal amplitude is one.

void	Normalize (Rectangle rectangle)
	Normalizes current ComplexAmplitude so that the maximal amplitude in given rectangle is one.

void	PowerEqual (Complex c)
	Raises every element of current ComplexAmplitude to power of given complex number. See important note on ComplexField.

override void	RemoveSphericalPhaseFactor (CancellationToken? cancellationToken=null)
	Removes a sampled spherical phase factor whose distance from the source plane is specified in the SphericalPhaseRadius property. The sampled complex field is divided by the corresponding spherical phase function.

void	Replicate (Vector newSize, Vector shift)
	Replicates current ComplexAmplitude periodically. Old complex amplitude is replaced by new one.

void	Replicate_Periodic (Vector newSize)
	Replicates this ComplexAmplitude periodically, original field is centered around (0; 0).

override void	Save (string fileName)
	Saves current ComplexAmplitude into a file in binary format.

void	SetBothComponentsAtOnce (ComplexField fieldX, ComplexField fieldY)
	Because both X and Y component must have same size, a function is needed to change both components at once.

void	Shift (Vector shift)
	Shifts the current ComplexAmplitude by a specified number of sampling points. Size is not modified, so sampling points can get lost.

void	SplitLocallyPolarizedField (out ComplexAmplitude caX, out ComplexAmplitude caY)
	Splits current complex amplitude into X and Y component.

void	SubEqual (ComplexAmplitude ca)
	Subtracts a given ComplexAmplitude from current one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

void	Transpose ()
	Transposes current ComplexAmplitude. This means \([x, y] = [y, x]\).

void	VerticalMirror_physicalCoordinates ()
	Performs a vertical mirroring of current ComplexAmplitude. The physical coordinates origin is maintained.

void	VerticalMirror_pixelCoordinates ()
	Performs a vertical mirroring of current ComplexAmplitude. \([x, SamplingPoints.Y - y - 1] = [x, y]\).

Public Member Functions inherited from HarmonicFieldBase
IEnumerable< ComplexAmplitude >	GetFields ()
	Gets all member fields in the harmonic field.

	HarmonicFieldBase ()
	Default constructor to initialize a new instance of the HarmonicFieldBase class.

	HarmonicFieldBase (HarmonicFieldBase field)
	Copy constructor to initialize a new instance of the HarmonicFieldBase class.

	HarmonicFieldBase (SerializationInfo info, StreamingContext context)
	Deserialization constructor to initialize new instance of the HarmonicFieldBase class.

void	RemoveSphericalPhaseFactor (CancellationToken? cancellationToken=null)
	Removes the Spherical Phase Factor(s) from the field.

Public Member Functions inherited from IDocument
FormDocument	GetNewDocumentWindow (Form formMain, string fileName)
	Gets a new document window containing this document.

Static Public Member Functions
static ComplexAmplitude	AddWithResampling (ComplexAmplitude cac1, ComplexAmplitude cac2, InterpolationMethod method1, InterpolationMethod method2)
	Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is added to the first ComplexAmplitude.

static ComplexAmplitude	ConvoluteWithResampling (ComplexAmplitude cac1, ComplexAmplitude cac2, InterpolationMethod method1, InterpolationMethod method2)
	Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the convolution of both ComplexAmplitude operands is performed.

static ComplexAmplitude	Convolution (ComplexAmplitude cac1, ComplexAmplitude cac2)
	Returns convolution of \(a\) and \(b\): Convolute(a, b) := ℱ⁻¹(ℱ(a) ⋅ ℱ(b)). See important note on Numerics.ComplexField.

static ComplexAmplitude	DefaultField (ComplexAmplitudeType fieldType=ComplexAmplitudeType.GloballyPolSpatialComplexAmplitudeField)
	Gets a default field which can be used e.g. as initial value for both the Stored Lateral Field and Stored Complete Field light source.

static ComplexAmplitude	DivideWithResampling (ComplexAmplitude cac1, ComplexAmplitude cac2, InterpolationMethod method1, InterpolationMethod method2)
	Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the first ComplexAmplitude is divided by the second ComplexAmplitude.

static ComplexAmplitude	MultiplyWithResampling (ComplexAmplitude cac1, ComplexAmplitude cac2, InterpolationMethod method1, InterpolationMethod method2)
	Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is multiplied with the first ComplexAmplitude.

static ComplexAmplitude	operator* (Complex c, ComplexAmplitude ca)
	Multiplies a complex value with a ComplexAmplitude.

static ComplexAmplitude	operator* (ComplexAmplitude ca, Complex c)
	Multiplies a ComplexAmplitude with a complex value.

static ComplexAmplitude	operator* (ComplexAmplitude cac1, ComplexAmplitude cac2)
	Multiplies two ComplexAmplitude objects.

static ComplexAmplitude	operator+ (Complex c, ComplexAmplitude ca)
	Adds a Complex value to a ComplexAmplitude.

static ComplexAmplitude	operator+ (ComplexAmplitude ca, Complex c)
	Adds a Complex value to a ComplexAmplitude.

static ComplexAmplitude	operator+ (ComplexAmplitude cac1, ComplexAmplitude cac2)
	Adds two ComplexAmplitude objects. The sampling distance and the wavelength are ignored during the operation. The resulting object has the same sampling distance and wavelength as the first operand.

static ComplexAmplitude	operator- (ComplexAmplitude ca, Complex c)
	Subtracts a ComplexAmplitude and a Complex value.

static ComplexAmplitude	operator- (ComplexAmplitude cac1, ComplexAmplitude cac2)
	Subtracts two ComplexAmplitude objects.

static ComplexAmplitude	operator/ (ComplexAmplitude ca, Complex c)
	Divides a ComplexAmplitude by a Complex value.

static ComplexAmplitude	operator/ (ComplexAmplitude cac1, ComplexAmplitude cac2)
	Divides two ComplexAmplitude objects.

static ComplexAmplitude	operator^ (ComplexAmplitude ca, Complex c)
	Raises a ComplexAmplitude to a complex value.

static ComplexAmplitude	SubtractWithResampling (ComplexAmplitude cac1, ComplexAmplitude cac2, InterpolationMethod method1, InterpolationMethod method2)
	Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is subtracted from the first ComplexAmplitude.

Public Attributes
VectorD	SamplingDistance
	Distance between sampling points in meters.

Properties
Vector3D	CentralDirection `[get, set]`
	Get and set the central direction of the field. This means a normalized Vector3D which represents an analytically stored global linear phase. If the linear phase information is represented by this CentralDirection vector, it does not have to be sampled on the data which may reduce the sampling effort. The x and y component of the vector are related to k_x and k_y of the field while the sign of its z component is related to the flag PropagatesInPositiveZDirection.

ComplexAmplitudeType	ComplexAmplitudeType `[get, set]`
	Returns ComplexAmplitudeType of the present ComplexAmplitude object.

VectorD	CoordinateOffset `[get, set]`
	Offset of the physical sampling point coordinates.

ComplexField	Field `[get, set]`
	The complex field containing the scalar field of the globally polarized complex amplitude. In case of a locally polarized ComplexAmplitude, the X component is returned on get access. (Set access will raise an exception.)

override FieldRepresentation	FieldRepresentation `[get]`
	Returns field representation of current ComplexAmplitude.

ComplexField	FieldX `[get, set]`
	The complex field containing the X component of the complex amplitude.

ComplexField	FieldY `[get, set]`
	The complex field containing the Y component of the complex amplitude. In case of globally polarized ComplexAmplitude using this property will throw an exception.

bool	HasSphericalPhaseRadius `[get, set]`
	Indicates whether there are additionally information about the distance of a spherical phase factor from its origin. The default setting after the initialization of a new complex amplitude is false.

bool	HasWaveParameters `[get, set]`
	If true then current ComplexAmplitude contains additional wave parameters like waist width, distance from waist and Rayleigh length for both axis. This parameters are necessary for the propagation. This parameter can be only true if IsComplexAmplitudeField is true. Setting HasWaveParameters to false will set WaistWidth, WaistDistance, and RayleighLength to zero. Functions that change the number of sampling points, the sampling distance or the spherical phase factor usually set this property to false.

bool	IsComplexAmplitudeField `[get]`
	Returns true if complex amplitudes represents a complex amplitude.

bool	IsGloballyPolarized `[get]`
	Returns true if complex amplitude is globally polarized. SET modifies Complex Amplitude Type.

bool	IsGloballyPolarizedField `[get]`
	Gets whether this instance represents a globally polarized.

bool	IsLocallyPolarized `[get]`
	Returns true if complex amplitude is locally polarized. SET modifies Complex Amplitude Type.

bool	IsPeriodic `[get, set]`
	Specifies whether this complex amplitude is a periodic field or transmission.

bool	IsPeriodicTransmission `[get, set]`
	Specifies whether this complex amplitude is a periodic transmission.

bool	IsSignalRegion `[get]`
	Returns true if complex amplitudes represents a signal region.

override bool	IsSpatial `[get, set]`
	Returns true if complex amplitudes is in spatial domain.

bool	IsSpectral `[get, set]`
	Returns true if complex amplitudes is in spectral domain.

bool	IsTransmission `[get]`
	Returns true if this complex amplitude represents a transmission.

Matrix2x2C	JonesMatrix `[get, set]`
	Jones matrix for transmissions.

VectorC	JonesVector `[get, set]`
	Jones vector for globally polarized complex amplitude fields.

LinearFunction	LinearPhaseFunction `[get, set]`
	Function that describes the linear phase (in geometrical values). Important: The coefficients have to refer to the geometric distances instead of the phase values. That means the parameters have the meaning of k_x/k and k_y/k resp. (with k = 2π⋅n/λ). Calculating phase values require a multiplication with k = 2π⋅n/λ.

MeasuredQuantity	MeasuredQuantityOfFieldData `[get]`
	Gets the measured quantity of the field data (depends on the type of the complex amplitude).

HomogeneousMedium	Medium `[get]`
	Property to get the medium the field is located in.

double	MediumWavelength `[get]`
	Gets the medium wavelength of the ComplexAmplitude.

override bool	PropagatesInPositiveZDirection `[get, set]`
	Is the sign of the z-component of the k-vector positive or not. This flag has meaning for harmonic fields only.

QuadraticFunction	QuadraticPhaseFunction `[get, set]`
	Public property to set and get the off-axis quadratic wave. Important: The coefficients have to refer to the geometric distances instead of the phase values. So the representation of a spherical wave with phase radius R would be (1/2R)x^2 + (1/2R)y^2 + R. Calculating phase values would require a multiplication with k = 2π⋅n/λ.

VectorD	RayleighLength `[get, set]`
	Rayleigh length of the wave in X and Y direction. Note that property in part of WaveParameters struct.

Complex	RefractiveIndex `[get]`
	Gets the complex refractive index of the embedding medium in which the ComplexAmplitude is defined.

double	SamplingDistanceOneD `[get, set]`
	Gets or sets sampling distance of a one-dimensional ComplexAmplitude.

SamplingParameters	SamplingParameters `[get, set]`
	Sets and gets the sampling parameters of the ComplexAmplitude which include sampling distance and number of sampling points. Modification of this property performs equal to changing the parameters using the SamplingDistance and SamplingPoints properties.

Vector	SamplingPoints `[get, set]`
	Number of sampling points of current complex amplitude. Setting a new number of sampling points will embed the sampling points in zero samples or extract the central samples.

int	SamplingPointsOneD `[get]`
	Number of sampling points of one-dimensional field. An exception will be thrown, if the field is two-dimensional.

double	SphericalPhaseRadius `[get, set]`
	If there is additional information about the spherical phase (HasSphericalPhaseRadius == true) this property returns the radius of the spherical equiphase surfaces, which is equal to the distance from the definition plane of this ComplexAmplitude to the center of the spherical wave front. If hasSphericalPhaseRadius == false radius = Double.MaxValue is returned. This is similar to an infinite radius. Setting a radius using this property in the case of HasSphericalPhaseRadius == false will switch HasSphericalPhaseRadius to true. This property stores the information about an analytical spherical phase factor only, in order to reconstruct the complex amplitude, even if it is undersampled. Changing the spherical phase radius will have no effect on the sampled data but maybe an error free reconstruction of the complete complex amplitude will be impossible. To change the sampled spherical phase factor and the stored spherical phase radius at once use the functions MultiplySphericalPhaseFactor and RemoveSphericalPhaseFactor instead.

Complex	this[int x, int y, bool accessFieldY] `[get, set]`
	Gets or sets a complex value with double precision on the specified position in complex amplitude. The coordinate system of x and y is the same like for ComplexField. If accessFieldY is true, the Y component is accessed by the indexer. This is allowed for locally polarized ComplexAmplitudes only. If accessFieldY is false, then the X component is accessed. For globally polarized ComplexAmplitudes this parameter has to be always false. If the precision of the ComplexField is less accurate than double precision, a loss of information is possible in case of a setting operation.

double	WaistDistance `[get, set]`
	Distance of the present complex amplitude from the waist. Note that property in part of WaveParameters struct.

VectorD	WaistWidth `[get, set]`
	Waist width of the wave in X and Y direction. Note that property in part of WaveParameters struct.

double	Wavelength `[get, set]`
	Sets or gets the vacuum wavelength of the ComplexAmplitude.

WaveParameters	WaveParameters `[get, set]`
	Get or sets all wave parameters (RayleighLength, WaistDistance and WaistWidth) at once.

Properties inherited from HarmonicFieldBase
bool	IsSpatial `[get, set]`
	Gets and sets whether the field is in spatial domain (if `true`) or spectral domain (if `false`).

bool	PropagatesInPositiveZDirection `[get, set]`
	Gets or sets whether the sign of the z-component of the k-vector is positive or not.

Properties inherited from IDocument
VirtualLabSession	Session `[get, set]`
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession

NodeVLExplorer	TreeStructure `[get]`
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer

DocumentType	TypeOfDocument `[get]`
	Gets an enum entry specifying the type of the document.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
This class represents a complex amplitude of a wave (without time depending part) in a plane or a complex transmission function.
Both X and Y field components are stored. In general all functions are applied to both components.
The ComplexAmplitude class is used to represent globally polarized fields and transmissions, too.
The ComplexAmplitude class contains one or two ComplexField as mathematical representations for complex fields. See manual for details of physical interpretation.
The ComplexAmplitude class can contain some additional information about the radius (distance from the origin) of a spherical phase factor. Using this information field may contain a spherical phase factor that is undersampled. If the radius of the spherical phase factor is known, the whole complex amplitude at every point can be reconstructed. The radius of the spherical phase factor helps to reduce the number of sampling points. Functions that use the ComplexAmplitude class have to take into account this spherical phase information to avoid numerical errors.
Operators ( \(a+b\), \(a-b\), \(a*b\) and \(a/b\)) can be used. Passing \(a\) or \(b\) as Complex is supported. \(a^b\) can be applied for pointwise power function: \(a[x,y] ^ b\) \(b\) must be Complex. Operator \(a|b\) is used for calculation of inner product of two ComplexAmplitudes: \(a|b=\sum _{j=0}^{m}\sum _{i=0}^{n}a_{{i,j}}b_{{i,j}^{\star}}\) ( \(z^{\star}\) means conjugation of complex number.).

Constructor & Destructor Documentation

◆ ComplexAmplitude() [1/10]

ComplexAmplitude ( HomogeneousMedium embeddingMedium )

Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and 3x3 sampling points.

Parameters

embeddingMedium The embedding medium of the complex amplitude.

◆ ComplexAmplitude() [2/10]

ComplexAmplitude	(	Vector	SamplingPoints,
		bool	initializeValues = `true`
	)

Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given number of sampling points.

Parameters

SamplingPoints	Number of sampling points.
initializeValues	If this optional parameter is set to `false`, the field values are not initialized. Should be used only if the values are initialized immediately afterwards, but then performance is better.

◆ ComplexAmplitude() [3/10]

ComplexAmplitude ( Numerics::ComplexField field )

Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given ComplexField.

Parameters

field Complex field used for initialization.

◆ ComplexAmplitude() [4/10]

ComplexAmplitude	(	Numerics::ComplexField	xField,
		Numerics::ComplexField	yField
	)

Constructs a locally polarized ComplexAmplitude with the default precision, default wavelength and given X and Y Component ComplexField objects.

Parameters

xField	X component complex field.
yField	Y component complex field.

◆ ComplexAmplitude() [5/10]

ComplexAmplitude	(	Vector	SamplingPoints,
		Complex	c
	)

Constructs a globally polarized ComplexAmplitude using default precision, default wavelength and given number of sampling points. All sampling points are set to given complex constant.

Parameters

SamplingPoints	Number of sampling points.
c	Complex constant all points are initialized to.

◆ ComplexAmplitude() [6/10]

ComplexAmplitude	(	SamplingParameters	samplingParameters,
		PrecisionMode	precision,
		bool	IsComplex,
		Func< double, double, double >	f,
		ParallelizationType	parallelizationType = `ParallelizationType::AutomaticMeasure`
	)

Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters. Sampling points are initialized using given real function.

Parameters

samplingParameters	Sampling parameter of constructed field.
precision	Desired precision.
IsComplex	If true real and imaginary part are stored but the imaginary part is zero because f is a real function. If false only the real part is stored.
f	A method returning a double (the real part) and having two doubles (the physical coordinates) as input parameter.
parallelizationType	Type of the parallelization. Set it to ParallelizationType.NoParallelization if the method passed by the function is not thread-safe. Otherwise you can choose of the remaining parallelization types (ParallelizationType.AutomaticMeasure is the default).

◆ ComplexAmplitude() [7/10]

ComplexAmplitude	(	SamplingParameters	samplingParameters,
		bool	IsComplex,
		bool	initializeValues = `true`
	)

Constructs a globally polarized ComplexAmplitude using the default wavelength from the GlobalOptions and given Numerics.SamplingParameters.

Parameters

samplingParameters	Sampling parameter of constructed field.
IsComplex	If `true` real and imaginary part are stored. If `false` only the real part is stored.

Parameters

initializeValues If this optional parameter is set to false, the field values are not initialized. Should be used only if the values are initialized immediately afterwards, but then performance is better.

◆ ComplexAmplitude() [8/10]

ComplexAmplitude	(	SamplingParameters	samplingParameters,
		PrecisionMode	precision,
		bool	IsComplex,
		bool	initializeValues = `true`
	)

Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters.

Parameters

samplingParameters	Sampling parameter of constructed field.
precision	Desired precision.
IsComplex	If true real and imaginary part are stored but the imaginary part is zero because f is a real function. If false only the real part is stored.

Parameters

initializeValues If this optional parameter is set to false, the field values are not initialized. Should be used only if the values are initialized immediately afterwards, but then performance is better.

◆ ComplexAmplitude() [9/10]

ComplexAmplitude	(	SamplingParameters	samplingParameters,
		PrecisionMode	precision,
		Func< double, double, Complex >	f,
		ParallelizationType	parallelizationType = `ParallelizationType::AutomaticMeasure`
	)

Constructs a globally polarized ComplexAmplitude using default wavelength, and given SamplingParameters. Sampling points are initialized using given complex function.
The point (0 m; 0 m) will be placed in the center of the field.

Parameters

samplingParameters	Sampling parameter of constructed field.
precision	Desired precision.
f	A method returning a Complex (the field value) and having two doubles (the physical coordinates) as input parameter.
parallelizationType	Type of the parallelization. Set it to ParallelizationType.NoParallelization if the method passed by the function is not thread-safe. Otherwise you can choose of the remaining parallelization types (ParallelizationType.AutomaticMeasure is the default).

◆ ComplexAmplitude() [10/10]

ComplexAmplitude ( ComplexAmplitude ca )

Creates a clone of the given complex amplitude.

Parameters

ca	the complex amplitude to be cloned

Member Function Documentation

◆ AddEqual() [1/2]

void AddEqual ( Complex c )

Adds a complex number to current ComplexAmplitude. See important note on ComplexField.

Parameters

c	Complex number to be added.

◆ AddEqual() [2/2]

void AddEqual ( ComplexAmplitude ca )

Adds a given ComplexAmplitude to current one taking into account the spherical phase radius. The result is stored in the present ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

Parameters

ca	ComplexAmplitude to be added to current one.

◆ AddWithResampling()

static ComplexAmplitude AddWithResampling	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2,
		InterpolationMethod	method1,
		InterpolationMethod	method2
	)

static

Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is added to the first ComplexAmplitude.

Parameters

cac1	First ComplexAmplitude operand.
cac2	Second ComplexAmplitude operand.
method1	How to interpolate 1. operand, if it is a transmission
method2	How to interpolate 2. operand, if it is a transmission

Returns: The resulting harmonic field.

◆ ApplyAnalyticallyLinearPhaseToDataPoints_withoutResampling()

void ApplyAnalyticallyLinearPhaseToDataPoints_withoutResampling ( CancellationToken cancellationToken )

public support method to apply the analytically linear phase value onto the data points

Parameters

cancellationToken The token for cooperative task cancellation.

◆ ApplyAnalyticallyQuadraticPhaseToDataPoints_withoutResampling()

void ApplyAnalyticallyQuadraticPhaseToDataPoints_withoutResampling	(	CancellationToken	cancellationToken,
		bool	enableAnalyticalLinearPhaseResultingFromOffset = `false`
	)

public support method to apply the analytically quadratic phase value onto the data points

Parameters

cancellationToken	The token for cooperative task cancellation.
enableAnalyticalLinearPhaseResultingFromOffset	If true, the underlying CA may contain an additional analytical linear phase, which results from the quadratic phase if there is a lateral offset.

◆ ApplyAperture()

void ApplyAperture	(	BasicParameter::eApertureShape	shape,
		double	absoluteEdgeWidth
	)

Applies an aperture function to the ca.

Parameters

shape	The shape of the aperture to be applied.
absoluteEdgeWidth	The absolute edge width to be applied.

◆ ChangeFieldRepresentation()

void ChangeFieldRepresentation	(	bool	isComplex,
		PrecisionMode	precison = `PrecisionMode::Double`
	)

Changes field representation of current ComplexAmplitude, i.e. whether the field is complex and the PrecisionMode.

Parameters

isComplex	ComplexAmplitude is complex.
precison	No longer necessary.

◆ ClipAmplitude()

void ClipAmplitude ( double clippingLevel )

Sets all amplitude values of current ComplexAmplitude greater than the clippingLevel to the clippingLevel.

Parameters

clippingLevel Maximal value of amplitude.

◆ Clone()

override object Clone ( )

Clones current ComplexAmplitude.

Returns: A deep copy of this complex amplitude.

◆ ConvoluteWithResampling()

static ComplexAmplitude ConvoluteWithResampling	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2,
		InterpolationMethod	method1,
		InterpolationMethod	method2
	)

static

Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the convolution of both ComplexAmplitude operands is performed.

Parameters

cac1	First ComplexAmplitude operand.
cac2	Second ComplexAmplitude operand.
method1	How to interpolate 1. operand, if it is a transmission
method2	How to interpolate 2. operand, if it is a transmission

Returns: The resulting harmonic field.

◆ Convolution()

static ComplexAmplitude Convolution	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2
	)

static

Returns convolution of \(a\) and \(b\): Convolute(a, b) := ℱ⁻¹(ℱ(a) ⋅ ℱ(b)). See important note on Numerics.ComplexField.

Parameters

cac1	Operator \(a\).
cac2	Operator \(b\).

Returns: Result of operation.

◆ DefaultField()

static ComplexAmplitude DefaultField ( ComplexAmplitudeType fieldType = ComplexAmplitudeType::GloballyPolSpatialComplexAmplitudeField )

static

Gets a default field which can be used e.g. as initial value for both the Stored Lateral Field and Stored Complete Field light source.

Parameters

fieldType Optional type of the field (transmission, spatial harmonic field and so on). If not specified, a globally polarized spatial field is generated. In case of a transmission a periodic transmission is returned.

Returns: A field with 5 × 5 sampling points and the given type.

◆ DivEqual() [1/2]

void DivEqual ( Complex c )

Divides current ComplexAmplitude by given complex number. See important note on ComplexField.

Parameters

c	Complex number current is to be divided by.

◆ DivEqual() [2/2]

void DivEqual ( ComplexAmplitude ca )

Divides current ComplexAmplitude by a given one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

Parameters

ca	ComplexAmplitude current one is divided by.

◆ DivideWithResampling()

static ComplexAmplitude DivideWithResampling	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2,
		InterpolationMethod	method1,
		InterpolationMethod	method2
	)

static

Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the first ComplexAmplitude is divided by the second ComplexAmplitude.

Parameters

cac1	First ComplexAmplitude operand (dividend).
cac2	Second ComplexAmplitude operand (divisor).
method1	How to interpolate 1. operand, if it is a transmission
method2	How to interpolate 2. operand, if it is a transmission

Returns: The resulting harmonic field.

◆ EmbedCorner()

void EmbedCorner ( Vector newSize )

This ComplexAmplitude is embedded into sampling points having the value zero so that the resulting size is twice the original size. In contrast to the EmbedExtract(Vector) method, this method places the original field in the bottom left quadrant of the changed field, not in the center.

Parameters

newSize New size in pixels.

◆ EmbedExtract() [1/2]

ComplexAmplitude EmbedExtract ( Rectangle rectangle )

Embeds current complex amplitude into the given rectangle.

Parameters

rectangle Region to extract. Pixels outside of this ComplexAmplitude are set to zero.

Returns: Modified ComplexAmplitude.

◆ EmbedExtract() [2/2]

void EmbedExtract ( Vector newSize )

Changes this ComplexAmplitude to the given size.

Parameters

newSize New size in pixels. If the new size is larger than the original number of sampling points, the field is embedded centrically into sampling points having the value zero. If the size is smaller than the the original number of sampling points, the central region of the field is extracted.

◆ Equals()

override bool Equals	(	object	otherObject,
		EqualityIntent	equalityIntent
	)

Determines whether the specified Object is equal to this instance.

Parameters

otherObject	The Object to compare with this instance.
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or just physical equality.

Returns: true if the specified Object is equal to this instance; otherwise, false.

◆ Extract()

ComplexAmplitude Extract	(	Vector	size,
		Vector	position
	)

Extracts the defined piece from the given ComplexAmplitude.

Parameters

size	The size of the region to extract in pixels.
position	The zero-position of the region to extract in pixel coordinates.

Returns: Extracted region as a new ComplexAmplitude.

◆ ExtractColumn()

ComplexAmplitude ExtractColumn	(	int	colIndex,
		bool	considerSphericalPhase
	)

Extracts a column from the given ComplexAmplitude.

Parameters

colIndex	index of the column to extract in pixel coordinates.
considerSphericalPhase	`True`: The analytical spherical phase factor is sampled in the resulting field. `False`: The analytical spherical phase factor is not present in the resulting field.

Returns: Extracted column as a new ComplexAmplitude.

◆ ExtractComplexValue()

Complex ExtractComplexValue	(	VectorD	position,
		VectorialComponent	comp
	)

Public method to get a complex value for a defined physical position for a specified vectorial component.

Parameters

position	the position where the value have to be extracted
comp	the vectorial component which shall be used

Returns: the complex value on the defined position

◆ ExtractDiagonal()

ComplexAmplitude ExtractDiagonal ( double alpha )

Extracts data from a diagonal line right through the center of the given ComplexAmplitude.

Parameters

alpha The orientation angle of the diagonal line in radians. A angle of zero means that a line in x-direction is extracted. An angle of \(\frac{\pi}{2}\) means that a line in y-direction is extracted.

Returns: Extracted data as new one-dimensional ComplexAmplitude.

◆ ExtractRow()

ComplexAmplitude ExtractRow	(	int	rowIndex,
		bool	considerSphericalPhase
	)

Extracts a row from the given ComplexAmplitude.

Parameters

rowIndex	index of the row to extract in pixel coordinates.
considerSphericalPhase	`True`: The analytical spherical phase factor is sampled in the resulting field. `False`: The analytical spherical phase factor is not present in the resulting field.

Returns: Extracted row as a new one-dimensional ComplexAmplitude.

◆ Fill() [1/2]

void Fill ( Complex c )

Sets all pixels of this ComplexAmplitude to the given complex value.

Parameters

c	Complex value to fill the field with.

◆ Fill() [2/2]

void Fill	(	Complex	c,
		Rectangle	marker,
		bool	inside
	)

Sets all pixels of this ComplexAmplitude to the given complex value.

Parameters

marker	Marker that decides where to fill.
c	Complex value to fill the field with.
inside	Fill inside or outside of the marker.

◆ GetAnalyticLinearPhaseValueAtPosition() [1/2]

Complex GetAnalyticLinearPhaseValueAtPosition	(	double	x,
		double	y
	)

function to get the complex value at a specific position

Parameters

x	x-position
y	y-position

Returns: the complex value for the analytically stored linear phase at the specified position

◆ GetAnalyticLinearPhaseValueAtPosition() [2/2]

Complex GetAnalyticLinearPhaseValueAtPosition ( VectorD position )

function to get the complex value at a specific position

Parameters

position the position where the linear phase should be evaluated

Returns: the complex value for the analytically stored linear phase at the specified position

◆ GetLocalFieldVector()

VectorC GetLocalFieldVector	(	int	x,
		int	y
	)

Gets the field vector (Ex; Ey) at a certain position (x; y) in pixels. Only works for Harmonic Fields, not Transmissions.

Parameters

x	The x-position in pixels.
y	The y-position in pixels.

Returns: The local field vector (Ex; Ey).

◆ Insert()

void Insert	(	ComplexAmplitude	ca,
		Vector	position
	)

Inserts the given ComplexAmplitude into current ComplexAmplitude at given position. Points exceeding boundaries will be ignored.

Parameters

ca	Complex amplitude to be inserted.
position	Position at which the field is to be inserted.

◆ JonesMatrixMultiplication()

ComplexAmplitude JonesMatrixMultiplication ( Matrix2x2C m )

Multiplies a ComplexAmplitude with a Matrix2x2C.

Parameters

m	The complex transformation matrix.

Returns: ComplexAmplitude multiplied with the given matrix.

◆ ModifyComplexPart()

void ModifyComplexPart	(	ComplexPart	complexPart,
		bool	makeRealValuedIfSuitable = `false`
	)

Extracts, shifts or swaps complex part of current ComplexAmplitude. Current object is modified.

Parameters

complexPart	Numerics.ComplexPart enum defining the desired action.
makeRealValuedIfSuitable	If this optional parameter is set to `true` the field is made real-valued if the imaginary part is zeroized. This is e.g. the case for extract amplitude and shift phase to real.

◆ MultEqual() [1/2]

void MultEqual ( Complex c )

Multiplies a complex number to current ComplexAmplitude. See important note on ComplexField.

Parameters

c	Complex number to be multiplied.

◆ MultEqual() [2/2]

void MultEqual ( ComplexAmplitude ca )

Multiplies a given ComplexAmplitude to current one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

Parameters

ca	ComplexAmplitude to be multiplied with current one.

◆ MultiplySphericalPhaseFactor()

void MultiplySphericalPhaseFactor	(	double	newRadius,
		CancellationToken?	cancellationToken = `null`
	)

Samples a spherical phase factor with specified distance from source plane and sets the SphericalPhaseRadius property. Function uses the present sampling distance of the current ComplexAmplitude to sample spherical phase factor.

Parameters

newRadius	Distance of the spherical phase factor from origin plane.
cancellationToken	Optional token for cooperative task cancellation.

◆ MultiplyWithResampling()

static ComplexAmplitude MultiplyWithResampling	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2,
		InterpolationMethod	method1,
		InterpolationMethod	method2
	)

static

Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is multiplied with the first ComplexAmplitude.

Parameters

cac1	First ComplexAmplitude operand.
cac2	Second ComplexAmplitude operand.
method1	How to interpolate 1. operand, if it is a transmission
method2	How to interpolate 2. operand, if it is a transmission

Returns: The resulting harmonic field.

◆ Normalize()

void Normalize ( Rectangle rectangle )

Normalizes current ComplexAmplitude so that the maximal amplitude in given rectangle is one.

Parameters

rectangle Region to which normalization refers.

◆ operator*() [1/3]

static ComplexAmplitude operator*	(	Complex	c,
		ComplexAmplitude	ca
	)

static

Multiplies a complex value with a ComplexAmplitude.

Parameters

c	The complex value.
ca	The ComplexAmplitude.

Returns: The product of the ComplexAmplitude and the complex value.

◆ operator*() [2/3]

static ComplexAmplitude operator*	(	ComplexAmplitude	ca,
		Complex	c
	)

static

Multiplies a ComplexAmplitude with a complex value.

Parameters

ca	The ComplexAmplitude.
c	The complex value.

Returns: The product of the ComplexAmplitude and the complex value.

◆ operator*() [3/3]

static ComplexAmplitude operator*	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2
	)

static

Multiplies two ComplexAmplitude objects.

Parameters

cac1	First ComplexAmplitude operand.
cac2	Second ComplexAmplitude operand.

Returns: Product of the two ComplexAmplitude objects.

◆ operator+() [1/3]

static ComplexAmplitude operator+	(	Complex	c,
		ComplexAmplitude	ca
	)

static

Adds a Complex value to a ComplexAmplitude.

Parameters

c	The complex value.
ca	The ComplexAmplitude.

Returns: A new ComplexAmplitude where the given Complex value has been added to every pixel.

◆ operator+() [2/3]

static ComplexAmplitude operator+	(	ComplexAmplitude	ca,
		Complex	c
	)

static

Adds a Complex value to a ComplexAmplitude.

Parameters

ca	The ComplexAmplitude.
c	The complex value.

Returns: A new ComplexAmplitude where the given Complex value has been added to every pixel.

◆ operator+() [3/3]

static ComplexAmplitude operator+	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2
	)

static

Adds two ComplexAmplitude objects. The sampling distance and the wavelength are ignored during the operation. The resulting object has the same sampling distance and wavelength as the first operand.

Parameters

cac1	First ComplexAmplitude operand.
cac2	Second ComplexAmplitude operand.

Returns: The result of the operator.

◆ operator-() [1/2]

static ComplexAmplitude operator-	(	ComplexAmplitude	ca,
		Complex	c
	)

static

Subtracts a ComplexAmplitude and a Complex value.

Parameters

ca	The ComplexAmplitude.
c	The complex value.

Returns: The difference of the ComplexAmplitude and the complex value.

◆ operator-() [2/2]

static ComplexAmplitude operator-	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2
	)

static

Subtracts two ComplexAmplitude objects.

Parameters

cac1	First ComplexAmplitude operand (minuend).
cac2	Second ComplexAmplitude operand (subtrahend).

Returns: The result of the operator.

◆ operator/() [1/2]

static ComplexAmplitude operator/	(	ComplexAmplitude	ca,
		Complex	c
	)

static

Divides a ComplexAmplitude by a Complex value.

Parameters

ca	The ComplexAmplitude.
c	The complex value.

Returns: The quotient of the ComplexAmplitude and the complex value.

◆ operator/() [2/2]

static ComplexAmplitude operator/	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2
	)

static

Divides two ComplexAmplitude objects.

Parameters

cac1	First ComplexAmplitude operand (dividend).
cac2	Second ComplexAmplitude operand (divisor).

Returns: Quotient of the two ComplexAmplitude objects.

◆ operator^()

static ComplexAmplitude operator^	(	ComplexAmplitude	ca,
		Complex	c
	)

static

Raises a ComplexAmplitude to a complex value.

Parameters

ca	the first ComplexAmplitude
c	the complex value

Returns: the power .

◆ PowerEqual()

void PowerEqual ( Complex c )

Raises every element of current ComplexAmplitude to power of given complex number. See important note on ComplexField.

Parameters

c	Complex exponent complex amplitude is raised to.

◆ RemoveSphericalPhaseFactor()

override void RemoveSphericalPhaseFactor ( CancellationToken? cancellationToken = null )

Removes a sampled spherical phase factor whose distance from the source plane is specified in the SphericalPhaseRadius property. The sampled complex field is divided by the corresponding spherical phase function.

Parameters

cancellationToken Optional token for cooperative task cancellation.

◆ Replicate()

void Replicate	(	Vector	newSize,
		Vector	shift
	)

Replicates current ComplexAmplitude periodically. Old complex amplitude is replaced by new one.

Parameters

newSize New size in pixels.

shift Introduces a shift in pixels. If the shift is zero then the left bottom corner of the field to replicate is in the left bottom corner of the replicated field. Else the replication starts with the sampling point of the field to replicate with the position shift on the left bottom corner of the replicated field. Shift must be between (0,0) and (Nx -1, Ny - 1). Nx and Ny are the number of sampling points in x- and y-direction.

◆ Replicate_Periodic()

void Replicate_Periodic ( Vector newSize )

Replicates this ComplexAmplitude periodically, original field is centered around (0; 0).

Parameters

newSize New size in pixels.

◆ Save()

override void Save ( string fileName )

Saves current ComplexAmplitude into a file in binary format.

Parameters

fileName Complete path of file.

◆ SetBothComponentsAtOnce()

void SetBothComponentsAtOnce	(	ComplexField	fieldX,
		ComplexField	fieldY
	)

Because both X and Y component must have same size, a function is needed to change both components at once.

Parameters

fieldX	Complex field containing X component.
fieldY	Complex field containing Y component.

◆ Shift()

void Shift ( Vector shift )

Shifts the current ComplexAmplitude by a specified number of sampling points. Size is not modified, so sampling points can get lost.

Parameters

shift Field shift in pixels.

◆ SplitLocallyPolarizedField()

void SplitLocallyPolarizedField	(	out ComplexAmplitude	caX,
		out ComplexAmplitude	caY
	)

Splits current complex amplitude into X and Y component.

Parameters

caX	Returns new complex field containing X component of current ComplexAmplitude by reference.
caY	Returns new complex field containing Y component of current ComplexAmplitude by reference.

◆ SubEqual()

void SubEqual ( ComplexAmplitude ca )

Subtracts a given ComplexAmplitude from current one taking into account the spherical phase radius. The result is stored in the ComplexAmplitude. Both operands must have same number of sampling points. Other parameters like sampling distance or wavelength will not be changed. See important note on ComplexField.

Parameters

ca	ComplexAmplitude to be subtracted from current one.

◆ SubtractWithResampling()

static ComplexAmplitude SubtractWithResampling	(	ComplexAmplitude	cac1,
		ComplexAmplitude	cac2,
		InterpolationMethod	method1,
		InterpolationMethod	method2
	)

static

Checks both ComplexAmplitude operands for identical sampling parameters, does the interpolation if one or both operands have to be resampled, then the second ComplexAmplitude is subtracted from the first ComplexAmplitude.

Parameters

cac1	First ComplexAmplitude operand (minuend).
cac2	Second ComplexAmplitude operand (subtrahend).
method1	How to interpolate 1. operand, if it is a transmission
method2	How to interpolate 2. operand, if it is a transmission

Returns: The resulting harmonic field.

Property Documentation

◆ FieldRepresentation

override FieldRepresentation FieldRepresentation

get

Returns field representation of current ComplexAmplitude.

Returns: .

◆ IsGloballyPolarizedField

bool IsGloballyPolarizedField

get

Gets whether this instance represents a globally polarized.

◆ MeasuredQuantityOfFieldData

MeasuredQuantity MeasuredQuantityOfFieldData

get

Gets the measured quantity of the field data (depends on the type of the complex amplitude).

◆ SphericalPhaseRadius

double SphericalPhaseRadius

getset

If there is additional information about the spherical phase (HasSphericalPhaseRadius == true) this property returns the radius of the spherical equiphase surfaces, which is equal to the distance from the definition plane of this ComplexAmplitude to the center of the spherical wave front. If hasSphericalPhaseRadius == false radius = Double.MaxValue is returned. This is similar to an infinite radius. Setting a radius using this property in the case of HasSphericalPhaseRadius == false will switch HasSphericalPhaseRadius to true. This property stores the information about an analytical spherical phase factor only, in order to reconstruct the complex amplitude, even if it is undersampled. Changing the spherical phase radius will have no effect on the sampled data but maybe an error free reconstruction of the complete complex amplitude will be impossible. To change the sampled spherical phase factor and the stored spherical phase radius at once use the functions MultiplySphericalPhaseFactor and RemoveSphericalPhaseFactor instead.

Exceptions

ArgumentException Thrown if the spherical phase radius is set to zero.

◆ this[int x, int y, bool accessFieldY]

Complex this[int x, int y, bool accessFieldY]

getset

Gets or sets a complex value with double precision on the specified position in complex amplitude. The coordinate system of x and y is the same like for ComplexField. If accessFieldY is true, the Y component is accessed by the indexer. This is allowed for locally polarized ComplexAmplitudes only. If accessFieldY is false, then the X component is accessed. For globally polarized ComplexAmplitudes this parameter has to be always false. If the precision of the ComplexField is less accurate than double precision, a loss of information is possible in case of a setting operation.

Parameters

x	X position in pixel.
y	Y position in pixel.
accessFieldY	Access Y component field.

Returns: Complex value at position (x, y).

Public Member Functions

Static Public Member Functions

Public Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ ComplexAmplitude() [1/10]

◆ ComplexAmplitude() [2/10]

◆ ComplexAmplitude() [3/10]

◆ ComplexAmplitude() [4/10]

◆ ComplexAmplitude() [5/10]

◆ ComplexAmplitude() [6/10]

◆ ComplexAmplitude() [7/10]

◆ ComplexAmplitude() [8/10]

◆ ComplexAmplitude() [9/10]

◆ ComplexAmplitude() [10/10]

Member Function Documentation

◆ AddEqual() [1/2]

◆ AddEqual() [2/2]

◆ AddWithResampling()

◆ ApplyAnalyticallyLinearPhaseToDataPoints_withoutResampling()

◆ ApplyAnalyticallyQuadraticPhaseToDataPoints_withoutResampling()

◆ ApplyAperture()

◆ ChangeFieldRepresentation()

◆ ClipAmplitude()

◆ Clone()

◆ ConvoluteWithResampling()

◆ Convolution()

◆ DefaultField()

◆ DivEqual() [1/2]

◆ DivEqual() [2/2]

◆ DivideWithResampling()

◆ EmbedCorner()

◆ EmbedExtract() [1/2]

◆ EmbedExtract() [2/2]

◆ Equals()

◆ Extract()

◆ ExtractColumn()

◆ ExtractComplexValue()

◆ ExtractDiagonal()

◆ ExtractRow()

◆ Fill() [1/2]

◆ Fill() [2/2]

◆ GetAnalyticLinearPhaseValueAtPosition() [1/2]

◆ GetAnalyticLinearPhaseValueAtPosition() [2/2]

◆ GetLocalFieldVector()

◆ Insert()

◆ JonesMatrixMultiplication()

◆ ModifyComplexPart()

◆ MultEqual() [1/2]

◆ MultEqual() [2/2]

◆ MultiplySphericalPhaseFactor()

◆ MultiplyWithResampling()

◆ Normalize()

◆ operator*() [1/3]

◆ operator*() [2/3]

◆ operator*() [3/3]

◆ operator+() [1/3]

◆ operator+() [2/3]

◆ operator+() [3/3]

◆ operator-() [1/2]

◆ operator-() [2/2]

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator^()

◆ PowerEqual()

◆ RemoveSphericalPhaseFactor()

◆ Replicate()

◆ Replicate_Periodic()

◆ Save()

◆ SetBothComponentsAtOnce()

◆ Shift()

◆ SplitLocallyPolarizedField()

◆ SubEqual()

◆ SubtractWithResampling()

Property Documentation

◆ FieldRepresentation

◆ IsGloballyPolarizedField

◆ MeasuredQuantityOfFieldData

◆ SphericalPhaseRadius
