This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class containing a set of harmonic fields (i.e. of instances of class ComplexAmplitude). More...

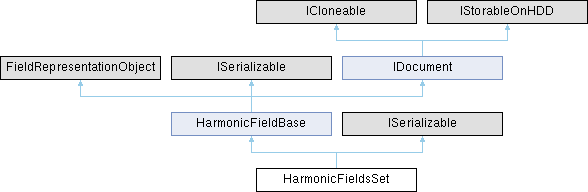

Inheritance diagram for HarmonicFieldsSet:

Public Member Functions
virtual int	Add (ComplexAmplitude ca)
	Checks whether the passed parameter is a complexAmplitudeField type and adds it to either file list in RAM or file list in hard disk and returns index.

void	Add (HarmonicFieldsSet hfsToAdd)
	Adds all member fields of a given harmonic fields set. The same consistency rules as for adding single fields apply (for example a spectral harmonic fields set cannot be added to a spatial one).

void	ClearAdvancedIndexerCache ()
	public help method to clear the cache which is used for the advanced indexer

void	CopyCoordinateSystemsFromOtherHFS (HarmonicFieldsSet hfsSource)
	support method to copy the coordinate system information from the source HFS to the current instance

new void	DeserializationPostProcessing (ref List< System.Reflection.FieldInfo > unfindableFields, RemainingData remainingData)
	Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.

CartesianCoordinateSystem	GetCoordinateSystemForMember (int indexMember)
	public property to get the Cartesian coordinate system that is associated with the member at index #indexMember

int	GetNumberOfIncoherentModesPerWavelength (double wavelength)
	Public support method which can be used to get the number of incoherent modes for a specified wavelength.

List< double >	GetSortedListOfWavelength ()
	Public support method which provides a sorted list of all wavelengths present in the harmonic fields set.

	HarmonicFieldsSet ()
	Default Constructor.

	HarmonicFieldsSet (ComplexAmplitude[] fields)
	Constructor for generating a HarmonicFieldsSet out of list of harmonic field. All harmonic fields must be of the same type, must have the same dimensionality, polarization, and embedding medium - otherwise an ArgumentException is raised.

	HarmonicFieldsSet (HarmonicFieldsSet sf)
	copy constructor.

HarmonicFieldsSet	IndexWiseSummation (HarmonicFieldsSet hfs)
	Index wise summation of two harmonic fields, i.e. this[i] + hfs[i] (Complex Amplitude Summation)

virtual void	Insert (int index, ComplexAmplitude ca)
	Insert a ComplexAmplitude into the list.

string	ModeNumberString (int index, bool omitWavelength=false)
	Creates a string like "Field #1" to ensure the correct sorting in the parameter run. The number of digits is determined from the number of member fields in the harmonic fields set.

string	ModeString (int indexWavelength, int indexIncoherentMode, bool omitWavelength=false)
	Generates a human-readable string describing the specified mode.

virtual void	RemoveAt (int index)
	remove the specified ca file with the given index from the file list stored in RAM /Hard Disk.

override void	RemoveSphericalPhaseFactor (CancellationToken? cancellationToken=null)
	Removes the Spherical Phase Factor of all member fields.

override void	Save (string fileName)
	Saves current HarmonicFieldsSet into a file in binary format.

void	SetCoordinateForMember (int indexMember, CartesianCoordinateSystem csToSet)
	public support method which can be used to set the coordinate system for a specific member

void	SetSameCoordinateSystemToAllMembers (CartesianCoordinateSystem csToSet)
	public support method which set the coordinate system csToSet to all member of the harmonic fields set

Public Member Functions inherited from HarmonicFieldBase
IEnumerable< ComplexAmplitude >	GetFields ()
	Gets all member fields in the harmonic field.

	HarmonicFieldBase ()
	Default constructor to initialize a new instance of the HarmonicFieldBase class.

	HarmonicFieldBase (HarmonicFieldBase field)
	Copy constructor to initialize a new instance of the HarmonicFieldBase class.

	HarmonicFieldBase (SerializationInfo info, StreamingContext context)
	Deserialization constructor to initialize new instance of the HarmonicFieldBase class.

void	RemoveSphericalPhaseFactor (CancellationToken? cancellationToken=null)
	Removes the Spherical Phase Factor(s) from the field.

Public Member Functions inherited from IDocument
FormDocument	GetNewDocumentWindow (Form formMain, string fileName)
	Gets a new document window containing this document.

Static Public Member Functions
static string	ModeStringOneIndex (int index)
	Creates a string like "Field #1" to ensure the correct sorting in the parameter run. The number of digits is determined from the number of member fields in the harmonic fields set.

static string	ModeStringTwoIndices (int indexWavelength, double wavelength, int indexIncoherentMode, int numberOfIncoherentModesForWavelength)
	Generates a human-readable string describing the specified mode.

Properties
int	Count `[get]`
	Get the number of complex amplitude fields in the HarmonicFieldsSet.

virtual bool	IsOneD `[get]`
	Returns true if the first member is one dimensional.

override bool	IsSpatial `[get, set]`
	Gets and sets whether all member fields are in spatial domain (if `true`) or spectral domain (if `false`).

virtual ComplexAmplitude	this[int index] `[get, set]`
	Indexer for access to the ComplexAmplitude object the harmonic fields set consists of with the possibility to check consistency.

ComplexAmplitude	this[int wavelengthIndex, int incoherentIndex] `[get, set]`
	Advanced indexer for the harmonic fields set The indexer is two-dimensional. The first index value is the index of the wavelength which shall be investigated. The (sorted) list of wavelengths can be evaluated by the method GetSortedListOfWavelength(). The second index value is the indexer for the incoherent mode of the specified wavelength index. The number of incoherent modes for a specific wavelength can be investigated by the method GetNumberOfIncoherentModesPerWavelength(double wavelength). In case that the index which shall be investigated is not valid, an ArgumentException is thrown, which contains additional information.

Properties inherited from HarmonicFieldBase
bool	IsSpatial `[get, set]`
	Gets and sets whether the field is in spatial domain (if `true`) or spectral domain (if `false`).

bool	PropagatesInPositiveZDirection `[get, set]`
	Gets or sets whether the sign of the z-component of the k-vector is positive or not.

Properties inherited from IDocument
VirtualLabSession	Session `[get, set]`
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession

NodeVLExplorer	TreeStructure `[get]`
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer

DocumentType	TypeOfDocument `[get]`
	Gets an enum entry specifying the type of the document.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class containing a set of harmonic fields (i.e. of instances of class ComplexAmplitude).

Constructor & Destructor Documentation

◆ HarmonicFieldsSet() [1/2]

HarmonicFieldsSet ( ComplexAmplitude[] fields )

Constructor for generating a HarmonicFieldsSet out of list of harmonic field. All harmonic fields must be of the same type, must have the same dimensionality, polarization, and embedding medium - otherwise an ArgumentException is raised.

Parameters

fields Either a single ComplexAmplitude object or an array of ComplexAmplitude objects.

◆ HarmonicFieldsSet() [2/2]

HarmonicFieldsSet ( HarmonicFieldsSet sf )

copy constructor.

Parameters

sf	field to copy.

Member Function Documentation

◆ Add() [1/2]

virtual int Add ( ComplexAmplitude ca )

virtual

Checks whether the passed parameter is a complexAmplitudeField type and adds it to either file list in RAM or file list in hard disk and returns index.

Parameters

ca

Returns: index of file

◆ Add() [2/2]

void Add ( HarmonicFieldsSet hfsToAdd )

Adds all member fields of a given harmonic fields set. The same consistency rules as for adding single fields apply (for example a spectral harmonic fields set cannot be added to a spatial one).

Parameters

hfsToAdd The HarmonicFieldsSet object to add.

◆ CopyCoordinateSystemsFromOtherHFS()

void CopyCoordinateSystemsFromOtherHFS ( HarmonicFieldsSet hfsSource )

support method to copy the coordinate system information from the source HFS to the current instance

Parameters

hfsSource the harmonic fields set from which the coordinate information shall be copied

◆ DeserializationPostProcessing()

new void DeserializationPostProcessing	(	ref List< System.Reflection.FieldInfo >	unfindableFields,
		RemainingData	remainingData )

Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.

Parameters

unfindableFields	List of all those fields which are expected but could not be read from XML.
remainingData	Data contained in XML but which haven't been read yet.

◆ GetCoordinateSystemForMember()

CartesianCoordinateSystem GetCoordinateSystemForMember ( int indexMember )

public property to get the Cartesian coordinate system that is associated with the member at index #indexMember

Parameters

indexMember the index for which the CS shall be evaluated

Returns: the Cartesian coordinate system for the member at index #indexMember

◆ GetNumberOfIncoherentModesPerWavelength()

int GetNumberOfIncoherentModesPerWavelength ( double wavelength )

Public support method which can be used to get the number of incoherent modes for a specified wavelength.

Parameters

wavelength The wavelength for which the number of incoherent modes should be evaluated.

Returns: The number of incoherent modes which have the specified wavelength.

◆ GetSortedListOfWavelength()

List< double > GetSortedListOfWavelength ( )

Public support method which provides a sorted list of all wavelengths present in the harmonic fields set.

Returns: A sorted list of the wavelengths which are stored within the harmonic fields set.

◆ IndexWiseSummation()

HarmonicFieldsSet IndexWiseSummation ( HarmonicFieldsSet hfs )

Index wise summation of two harmonic fields, i.e. this[i] + hfs[i] (Complex Amplitude Summation)

Parameters

hfs	The second harmonic fields set to add to this harmonic fields set.

Returns: The resulting harmonic fields set.

◆ Insert()

virtual void Insert	(	int	index,
		ComplexAmplitude	ca )

virtual

Insert a ComplexAmplitude into the list.

Parameters

index	The index at which the field shall be inserted.
ca	The field to insert.

◆ ModeNumberString()

string ModeNumberString	(	int	index,
		bool	omitWavelength = false )

Creates a string like "Field #1" to ensure the correct sorting in the parameter run. The number of digits is determined from the number of member fields in the harmonic fields set.

Parameters

index	The index of the mode. It is converted to two indices (wavelength and incoherent index) and then something like "Wavelength #1: 532 nm; Incoherent Mode #1" is returned.
omitWavelength	If this optional parameter is set to `true` the actual wavelength is not written to the mode string (only the wavelength index). This is necessary for e.g. the Parameter Run as then the wavelength might change with every iteration.

Returns: The formatted string.

◆ ModeString()

string ModeString	(	int	indexWavelength,
		int	indexIncoherentMode,
		bool	omitWavelength = false )

Generates a human-readable string describing the specified mode.

Parameters

indexWavelength	The wavelength index of the mode.
indexIncoherentMode	The index of the incoherent mode.
omitWavelength	If this optional parameter is set to `true` the actual wavelength is not written to the mode string (only the wavelength index). This is necessary for e.g. the Parameter Run as then the wavelength might change with every iteration.

Returns: The wavelength and the incoherent index. The indices start with 1. If there is only one incoherent mode, the incoherent index is not output.

◆ ModeStringOneIndex()

static string ModeStringOneIndex ( int index )

static

Creates a string like "Field #1" to ensure the correct sorting in the parameter run. The number of digits is determined from the number of member fields in the harmonic fields set.

Parameters

index The index of the mode. An index of 0 is converted to "Field #1", an index of 1 to "Field #2" and so on.

Returns: The formatted string.

◆ ModeStringTwoIndices()

static string ModeStringTwoIndices	(	int	indexWavelength,
		double	wavelength,
		int	indexIncoherentMode,
		int	numberOfIncoherentModesForWavelength )

static

Generates a human-readable string describing the specified mode.

Parameters

indexWavelength	The wavelength index of the mode.
wavelength	The wavelength itself.
indexIncoherentMode	The index of the incoherent mode.
numberOfIncoherentModesForWavelength	The number of incoherent modes for the given wavelength.

Returns: The wavelength and the incoherent index. The indices start with 1. If there is only one incoherent mode, the incoherent index is not output.

◆ RemoveAt()

virtual void RemoveAt ( int index )

virtual

remove the specified ca file with the given index from the file list stored in RAM /Hard Disk.

Parameters

index

◆ RemoveSphericalPhaseFactor()

override void RemoveSphericalPhaseFactor ( CancellationToken? cancellationToken = null )

Removes the Spherical Phase Factor of all member fields.

Parameters

cancellationToken Optional token for cooperative task cancellation.

◆ Save()

override void Save ( string fileName )

Saves current HarmonicFieldsSet into a file in binary format.

Parameters

fileName Complete path of file.

◆ SetCoordinateForMember()

void SetCoordinateForMember	(	int	indexMember,
		CartesianCoordinateSystem	csToSet )

public support method which can be used to set the coordinate system for a specific member

Parameters

indexMember	the index of the member for which the coordinate system shall be set
csToSet	the coordinate system that shall be set

◆ SetSameCoordinateSystemToAllMembers()

void SetSameCoordinateSystemToAllMembers ( CartesianCoordinateSystem csToSet )

public support method which set the coordinate system csToSet to all member of the harmonic fields set

Parameters

csToSet the Cartesian coordinate system which shall be set

Property Documentation

◆ this[int wavelengthIndex, int incoherentIndex]

ComplexAmplitude this[int wavelengthIndex, int incoherentIndex]

getset

Advanced indexer for the harmonic fields set The indexer is two-dimensional. The first index value is the index of the wavelength which shall be investigated. The (sorted) list of wavelengths can be evaluated by the method GetSortedListOfWavelength(). The second index value is the indexer for the incoherent mode of the specified wavelength index. The number of incoherent modes for a specific wavelength can be investigated by the method GetNumberOfIncoherentModesPerWavelength(double wavelength). In case that the index which shall be investigated is not valid, an ArgumentException is thrown, which contains additional information.

Parameters

wavelengthIndex	The index value for the wavelength.
incoherentIndex	The index value for the incoherent mode.

Returns: The complex amplitude within the harmonic fields set for the wavelength index and the incoherent-mode index.

Public Member Functions

Static Public Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ HarmonicFieldsSet() [1/2]

◆ HarmonicFieldsSet() [2/2]

Member Function Documentation

◆ Add() [1/2]

◆ Add() [2/2]

◆ CopyCoordinateSystemsFromOtherHFS()

◆ DeserializationPostProcessing()

◆ GetCoordinateSystemForMember()

◆ GetNumberOfIncoherentModesPerWavelength()

◆ GetSortedListOfWavelength()

◆ IndexWiseSummation()

◆ Insert()

◆ ModeNumberString()

◆ ModeString()

◆ ModeStringOneIndex()

◆ ModeStringTwoIndices()

◆ RemoveAt()

◆ RemoveSphericalPhaseFactor()

◆ Save()

◆ SetCoordinateForMember()

◆ SetSameCoordinateSystemToAllMembers()

Property Documentation

◆ this[int wavelengthIndex, int incoherentIndex]
