This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Base class for every class that represents a modulated or non-modulated refractive index distribution between two surfaces. More...

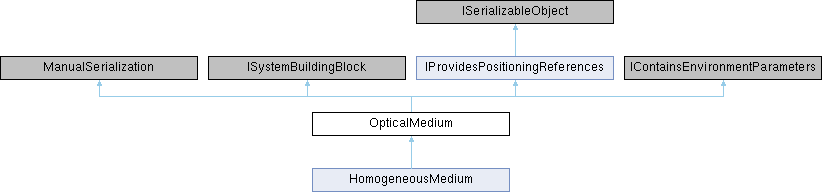

Inheritance diagram for OpticalMedium:

Public Member Functions
void	CalculateDerivative_Numerically (Vector3D r, double wavelength, out Complex dx, out Complex dy, out Complex dz)
	public support method to calculate the derivative of the refractive index of the optical medium for x,y,z direction

bool	Edit ()
	Enables the user to edit internal parameters of the spread sheet object by bringing up a modal dialog.

Complex	GetComplexRefractiveIndex (Vector3D position, double wavelength)
	Returns the refractive index on a special point and for a special wavelength. This function takes the periodization and the scaling into account.

double	GetImaginaryRefractiveIndex (Vector3D position, double wavelength)
	Gets the imaginary part of the complex refractive index.

virtual void	GetMinMaxWavelength (out double minWavelength, out double maxWavelength)
	Base method to determine the valid min/max vacuum wavelength of the medium for the current temperature and pressure.

virtual double	GetOverallZExtension ()
	Gets the overall z-extension of the medium. Only used if DeterminesZExtensionByItself is `true`.

double	GetRealRefractiveIndex (Vector3D position, double wavelength)
	Gets the real part of the complex refractive index.

PhysicalValueRange	GetWavelengthRange ()
	Gets the valid vacuum wavelength range of the medium for the current temperature and pressure.

virtual Complex	IntegrateComplexRefractiveIndex (Vector3D startPosition, Vector3D endPosition, double wavelength)
	Calculates the integral of the complex refractive index. Takes twice as long as the calculation of real or imaginary part.

virtual double	IntegrateImaginaryRefractiveIndex (Vector3D startPosition, Vector3D endPosition, double wavelength)
	Calculates the integral of the imaginary part of the refractive index. Can be overridden in derived classes.

virtual double	IntegrateRealRefractiveIndex (Vector3D startPosition, Vector3D endPosition, double wavelength)
	Calculates the integral of the real part of the refractive index. Can be overridden in derived classes.

virtual bool	IsConsistent (out List< ConsistenyErrorOrWarning > messageList)
	Method to check whether the medium is defined consistently.

	OpticalMedium (OpticalMedium medium)
	Copy constructor.

ComplexField	RefractiveIndexDistributionInPlane (AxisDirection viewDirection, double viewPosition, double wavelength, SamplingParameters planeSampling, CancellationToken cancellationToken)
	Calculates the refractive index distribution in one plane with the given sampling.

Public Member Functions inherited from IProvidesPositioningReferences
bool	ContainsReferenceCoordinateSystemWithKey (string key)
	Method that gives a flag, indicating whether or not a coordinate system is contained that can be accessed via a certain key.

CartesianCoordinateSystem	GetReferenceCoordinateSystemWithKey (string key)
	Method that gives the coordinate system the given key is assigned to.

Properties
Material	BaseMaterial `[get, set]`
	Get the base material of the medium.

virtual bool	BaseMaterialIsEditable `[get]`
	Virtual property to get whether the base material can be edited directly (`true`), or only indirectly by changing a "sub-medium" inside this medium (`false`). In the first case the base material control of FormOpticalMediumBase is shown (for which NameOfBaseMaterial is used).

Type	CatalogClass `[get]`
	Type of the class of the dedicated catalogs.

List< string >	Categories `[get, set]`
	Each string in the list represents one category the catalog belongs to. The format is "subcatalog\|subsubcatalog...".

CartesianCoordinateSystem	CoordinateSystem `[get, set]`
	Get, set the local (with respect to a BS) coordinate system of the medium.

Range3D	DefaultViewRangesWithoutScaling `[get]`
	What view ranges shall be shown in the medium preview by default? Medium scaling is not to be considered in this property!

virtual bool	DeterminesZExtensionByItself `[get]`
	Gets whether the medium determines its z-extension (in a stack) by itself.

EditedInType	EditedWithin `[get, set]`
	Gets and sets how to show the edit dialog of the interface. Must be set prior to calling the edit dialog.

virtual bool	HasFixedPeriod `[get]`
	Gets whether the medium has a fixed period determined from the specific medium parameters. For example the period of a Volume Grating Medium is determined from the interference pattern of the superposing plane waves.

bool	InsulatedFromEnvironment `[get, set]`
	Flag which can prevent (if its value is `true`) that the temperature and pressure for this medium are set by the recursive algorithm which is called by the method SetEnvironmentParametersToMediaRecursive().

virtual bool	IsAlwaysPeriodical `[get]`
	Gets whether the medium is always periodical (`true`) or whether the user can make the medium periodical (`false`).

virtual bool	IsEditable `[get]`
	Determines whether the spread sheet object is editable, i.e. whether the Edit() function was overridden.

virtual bool	IsIsotropic `[get]`
	Gets a value indicating whether this medium is isotropic (`true`) or anisotropic (`false`).

bool	IsPeriodical `[get, set]`
	Gets and sets whether the medium is periodical.

virtual string	LongName `[get]`
	Get a long name for the medium consisting of the medium's name and its base material's name.

virtual RefractiveIndexModulation	MaximumPossibleRefractiveIndexModulation `[get]`
	For some media the RefractiveIndexModulation depends on the current configuration. So this property gets the maximum possible modulation to be able to switch off GUI controls which never have an effect (e.g. z-scaling in case of a medium which can never be modulated in z-direction).

virtual Vector3D	MediaPeriod `[get, set]`
	Get and set the period of the medium.

string	Name `[get, set]`
	Name of the document. Has to be unique, because it will serve as key in the SortedList.

virtual string	NameOfBaseMaterial `[get]`
	Virtual property to get the name of the base material.

virtual ControlOpticalMediumBase	NewEditControl `[get]`
	public property to get a new instance of the control which shall be used for editing

virtual List< Parameter >	ParameterRunParameters `[get]`
	virtual properties which can be used to get the list of parameters available in parameter run

double	PressureInPascal `[get, set]`
	The gas pressure (in Pascal) to use the medium at.

RefractiveIndexModulation	RefractiveIndexModulation `[get]`
	Returns a flag enum indicating of the complex refractive index is modulated in x-, y- or z-direction.

Vector3D	ScalingVector `[get]`
	This property gets the scaling for all three directions as vector.

double	ScalingX `[get, set]`
	Gets and sets the scaling factor for x-direction. It can only be set if the medium can have a modulation in x-direction.

double	ScalingY `[get, set]`
	Gets and sets the scaling factor for y-direction. It can only be set if the medium can have a modulation in y-direction.

double	ScalingZ `[get, set]`
	Gets and sets the scaling factor for z-direction. It can only be set if the medium can have a modulation in z-direction.

virtual TypeofSmoothness	Smoothness `[get]`
	Get the smoothness property. "Continuous" per default.

string	SubTypeDescription `[get]`
	Get description of subtype of spread sheet object.

double	TemperatureInDegrees `[get, set]`
	The temperature (in °C) to use the medium at.

bool	UseDuringPropagation `[get, set]`
	Always true for optical media, as they are always used for propagation.

Events
EventHandler	ZExtensionMayHaveChanged
	Event that is thrown if some parameters are changed which influence the z-extension of the interface. Is only thrown if DeterminesZExtensionByItself is `true`.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Base class for every class that represents a modulated or non-modulated refractive index distribution between two surfaces.

Constructor & Destructor Documentation

◆ OpticalMedium()

OpticalMedium ( OpticalMedium medium )

Copy constructor.

Parameters

medium Medium to be copied.

Member Function Documentation

◆ CalculateDerivative_Numerically()

void CalculateDerivative_Numerically	(	Vector3D	r,
		double	wavelength,
		out Complex	dx,
		out Complex	dy,
		out Complex	dz
	)

public support method to calculate the derivative of the refractive index of the optical medium for x,y,z direction

Parameters

r	the position where to evaluate the derivative
wavelength	the wavelength to evaluate the derivative
dx	the derivative in x direction
dy	the derivative in y direction
dz	the derivative in z direction

◆ Edit()

bool Edit ( )

Enables the user to edit internal parameters of the spread sheet object by bringing up a modal dialog.

Returns: True when the edit dialog was finished with OK.

◆ GetComplexRefractiveIndex()

Complex GetComplexRefractiveIndex	(	Vector3D	position,
		double	wavelength
	)

Returns the refractive index on a special point and for a special wavelength. This function takes the periodization and the scaling into account.

Parameters

position	the position to return the refractive index on. The z-value of the position has to be relative to the start interface on the left side (lower z-position). So the z-position starts always with zero.
wavelength	The wavelength for that the refractive index is returned.

Returns: The complex refractive index at the given position.

◆ GetImaginaryRefractiveIndex()

double GetImaginaryRefractiveIndex	(	Vector3D	position,
		double	wavelength
	)

Gets the imaginary part of the complex refractive index.

Parameters

position	The position for which the imaginary refractive index is calculated.
wavelength	The wavelength needed for calculation.

Returns: The imaginary part of the complex refractive index.

◆ GetMinMaxWavelength()

virtual void GetMinMaxWavelength	(	out double	minWavelength,
		out double	maxWavelength
	)

virtual

Base method to determine the valid min/max vacuum wavelength of the medium for the current temperature and pressure.

Parameters

minWavelength	The minimum wavelength
maxWavelength	The maximum wavelength

◆ GetOverallZExtension()

virtual double GetOverallZExtension ( )

virtual

Gets the overall z-extension of the medium. Only used if DeterminesZExtensionByItself is true.

Returns: The overall z-extension of the medium.

◆ GetRealRefractiveIndex()

double GetRealRefractiveIndex	(	Vector3D	position,
		double	wavelength
	)

Gets the real part of the complex refractive index.

Parameters

position	The position for which the real refractive index is calculated.
wavelength	The wavelength needed for calculation.

Returns: The real part of the complex refractive index.

◆ GetWavelengthRange()

PhysicalValueRange GetWavelengthRange ( )

Gets the valid vacuum wavelength range of the medium for the current temperature and pressure.

Returns: The valid wavelength range of the medium.

◆ IntegrateComplexRefractiveIndex()

virtual Complex IntegrateComplexRefractiveIndex	(	Vector3D	startPosition,
		Vector3D	endPosition,
		double	wavelength
	)

virtual

Calculates the integral of the complex refractive index. Takes twice as long as the calculation of real or imaginary part.

Parameters

startPosition	lower border of integration interval
endPosition	upper border of integration interval
wavelength	The wavelength needed for calculation.

Returns: The integral of the complex refractive index between the two positions.

◆ IntegrateImaginaryRefractiveIndex()

virtual double IntegrateImaginaryRefractiveIndex	(	Vector3D	startPosition,
		Vector3D	endPosition,
		double	wavelength
	)

virtual

Calculates the integral of the imaginary part of the refractive index. Can be overridden in derived classes.

Parameters

startPosition	lower border of integration interval
endPosition	upper border of integration interval
wavelength	The wavelength needed for calculation.

Returns: The integral of the imaginary part of the refractive index between the two positions.

Reimplemented in HomogeneousMedium.

◆ IntegrateRealRefractiveIndex()

virtual double IntegrateRealRefractiveIndex	(	Vector3D	startPosition,
		Vector3D	endPosition,
		double	wavelength
	)

virtual

Calculates the integral of the real part of the refractive index. Can be overridden in derived classes.

Parameters

startPosition	lower border of integration interval
endPosition	upper border of integration interval
wavelength	The wavelength needed for calculation.

Returns: The integral of the real part of the refractive index between the two positions.

Reimplemented in HomogeneousMedium.

◆ IsConsistent()

virtual bool IsConsistent ( out List< ConsistenyErrorOrWarning > messageList )

virtual

Method to check whether the medium is defined consistently.

Parameters

messageList Out parameter to return the list of errors or warnings. Can be an empty list.

Returns: true, if the medium is consistent, otherwise false.

◆ RefractiveIndexDistributionInPlane()

ComplexField RefractiveIndexDistributionInPlane	(	AxisDirection	viewDirection,
		double	viewPosition,
		double	wavelength,
		SamplingParameters	planeSampling,
		CancellationToken	cancellationToken
	)

Calculates the refractive index distribution in one plane with the given sampling.

Parameters

viewDirection	The direction from which you look onto the material. Direction.Z means a X-Y-plane.
viewPosition	The view position. Must be positive for Direction.Z.
wavelength	The wavelength for which the refractive indices are calculated.
planeSampling	The sampling for the x- and y-axis of the resulting ComplexField.
cancellationToken	Token for cooperative task cancellation.

Returns: A complex field. The real part contains the refractive indices and the imaginary part the absorption. For a Z-X and Z-Y plane, z is drawn along the "normal" x-axis. If wavelength is out of range, null is returned.

Property Documentation

◆ EditedWithin

EditedInType EditedWithin

getset

Gets and sets how to show the edit dialog of the interface. Must be set prior to calling the edit dialog.

◆ HasFixedPeriod

virtual bool HasFixedPeriod

get

Gets whether the medium has a fixed period determined from the specific medium parameters. For example the period of a Volume Grating Medium is determined from the interference pattern of the superposing plane waves.

◆ IsAlwaysPeriodical

virtual bool IsAlwaysPeriodical

get

Gets whether the medium is always periodical (true) or whether the user can make the medium periodical (false).

◆ IsPeriodical

bool IsPeriodical

getset

Gets and sets whether the medium is periodical.

◆ ScalingX

double ScalingX

getset

Gets and sets the scaling factor for x-direction. It can only be set if the medium can have a modulation in x-direction.

◆ ScalingY

double ScalingY

getset

Gets and sets the scaling factor for y-direction. It can only be set if the medium can have a modulation in y-direction.

◆ ScalingZ

double ScalingZ

getset

Gets and sets the scaling factor for z-direction. It can only be set if the medium can have a modulation in z-direction.

◆ SubTypeDescription

string SubTypeDescription

getabstract

Get description of subtype of spread sheet object.

Returns

Public Member Functions

Properties

Events

Detailed Description

Constructor & Destructor Documentation

◆ OpticalMedium()

Member Function Documentation

◆ CalculateDerivative_Numerically()

◆ Edit()

◆ GetComplexRefractiveIndex()

◆ GetImaginaryRefractiveIndex()

◆ GetMinMaxWavelength()

◆ GetOverallZExtension()

◆ GetRealRefractiveIndex()

◆ GetWavelengthRange()

◆ IntegrateComplexRefractiveIndex()

◆ IntegrateImaginaryRefractiveIndex()

◆ IntegrateRealRefractiveIndex()

◆ IsConsistent()

◆ RefractiveIndexDistributionInPlane()

Property Documentation

◆ EditedWithin

◆ HasFixedPeriod

◆ IsAlwaysPeriodical

◆ IsPeriodical

◆ ScalingX

◆ ScalingY

◆ ScalingZ

◆ SubTypeDescription
