PhysicalValue Class Reference

class for a double value with a physical unit. More...

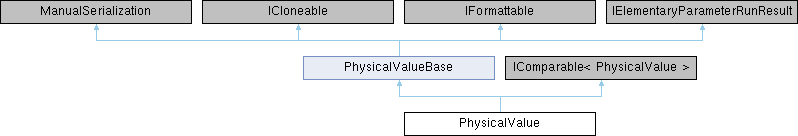

Inheritance diagram for PhysicalValue:

Public Member Functions
	PhysicalValue (double value, MeasuredQuantity measuredQuantity)
	Default constructor.
	PhysicalValue (double value, MeasuredQuantity measuredQuantity, string comment)
	Constructor with a comment string.
	PhysicalValue (double value, PhysicalProperty physicalProperty)
	Default constructor.
	PhysicalValue (double value, PhysicalProperty physicalProperty, string comment)
	Constructor with a comment string.
	PhysicalValue (PhysicalValue physicalValue)
	Copy constructor.
	PhysicalValue (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details.
override string	ToString ()
	Overridden ToString function. The PhysicalValue is formatted like "1 nm".
override string	ToString (int significantDigits)
	Overridden ToString function. The PhysicalValue is formatted like "1 nm".
override string	ToString (string format, IFormatProvider formatProvider=null)
	Overridden ToString function provided by the IFormattable interface. Returns a System.String that represents this instance.
Public Member Functions inherited from PhysicalValueBase
override object	Clone ()
override bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance.
Complex	GetComplexValue ()
	Gets the actual value as a complex number.
	PhysicalValueBase (MeasuredQuantity measuredQuantity, string comment)
	Standard constructor.
	PhysicalValueBase (PhysicalProperty physicalProperty)
	Standard constructor.
	PhysicalValueBase (PhysicalProperty physicalProperty, string comment)
	Standard constructor.
	PhysicalValueBase (PhysicalValueBase physicalValueBase)
	Copy constructor.
	PhysicalValueBase (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details.
string	ToString (int significantDigits)
	Returns a System.String that represents this instance.
string	ToString (string format, IFormatProvider formatProvider=null)
	ToString function provided by the IFormattable interface. Returns a System.String that represents this instance.

Static Public Member Functions
static bool	operator!= (PhysicalValue value1, PhysicalValue value2)
	Compares two PhysicalValue for inequality. The comparison will be done by comparing the values, units, and comments, respectively.
static bool	operator== (PhysicalValue value1, PhysicalValue value2)
	Compares two PhysicalValue for equality. The comparison will be done by comparing the values, units, and comments, respectively.
Static Public Member Functions inherited from PhysicalValueBase
static string	GetFormatString (bool showPhysicalUnits, int numberOfDigits, ComplexToStringConversionFormat? complexNumberFormat=null)
	Gets the format string which can be used for the ToString method.

Properties
virtual double	Value [get, set]
	The value of the PhysicalValue.
Properties inherited from PhysicalValueBase
object	ActualParameterRunResult [get]
	Gets the actual parameter run result.
string	Comment [get, set]
	A comment specifying what the PhysicalValue actually is.
MeasuredQuantity	MeasuredQuantity [get, set]
	Gets and sets the measured quantity (e.g. length) of the physical value.
virtual PhysicalProperty	PhysicalProperty [get, set]
	The unit of the PhysicalValue.

Detailed Description

class for a double value with a physical unit.

Constructor & Destructor Documentation

PhysicalValue() [1/6]

PhysicalValue	(	double	value,
		PhysicalProperty	physicalProperty
	)

Default constructor.

Parameters

value	The value of the PhysicalValue.
physicalProperty	The unit of the PhysicalValue.

PhysicalValue() [2/6]

PhysicalValue	(	double	value,
		PhysicalProperty	physicalProperty,
		string	comment
	)

Constructor with a comment string.

Parameters

value	The value of the PhysicalValue.
physicalProperty	The unit of the PhysicalValue.
comment	A comment specifying what the PhysicalValue actually is.

PhysicalValue() [3/6]

PhysicalValue	(	double	value,
		MeasuredQuantity	measuredQuantity
	)

Default constructor.

Parameters

value	The value of the PhysicalValue.
measuredQuantity	The measured quantity of the physical value (e.g. length).

PhysicalValue() [4/6]

PhysicalValue	(	double	value,
		MeasuredQuantity	measuredQuantity,
		string	comment
	)

Constructor with a comment string.

Parameters

value	The value of the PhysicalValue.
measuredQuantity	The measured quantity of the physical value (e.g. length).
comment	A comment specifying what the PhysicalValue actually is.

PhysicalValue() [5/6]

PhysicalValue

(

PhysicalValue

physicalValue

)

Copy constructor.

Parameters

physicalValue

PhysicalValue to copy

PhysicalValue() [6/6]

PhysicalValue	(	SerializationInfo	info,
		StreamingContext	context
	)

Deserialization constructor. See the ISerializable interface for more details.

Parameters

info	SerializationInfo
context	StreamingContext

Member Function Documentation

operator!=()

static bool operator!= ( PhysicalValue  value1, PhysicalValue  value2  )

static

Compares two PhysicalValue for inequality. The comparison will be done by comparing the values, units, and comments, respectively.

Parameters

value1	First PhysicalValue object to compare.
value2	Second PhysicalValue object to compare.

Returns

Returns true if the two objects are unequal.

operator==()

static bool operator== ( PhysicalValue  value1, PhysicalValue  value2  )

static

Compares two PhysicalValue for equality. The comparison will be done by comparing the values, units, and comments, respectively.

Parameters

value1	First PhysicalValue object to compare.
value2	Second PhysicalValue object to compare.

Returns

Returns true if the two objects are equal.

ToString() [1/3]

override string ToString

(

)

Overridden ToString function. The PhysicalValue is formatted like "1 nm".

Returns

The formatted value.

ToString() [2/3]

override string ToString

(

int

significantDigits

)

Overridden ToString function. The PhysicalValue is formatted like "1 nm".

Parameters

significantDigits

The number of significant digits.

Returns

The formatted value.

ToString() [3/3]

override string ToString	(	string	format,
		IFormatProvider	formatProvider = null
	)

Overridden ToString function provided by the IFormattable interface. Returns a System.String that represents this instance.

Parameters

format

The format. "U" or an empty string means that the string is formatted with units (e.g. "1 nm"). "G" means that the string is formatted without units (e.g. "1e-9"). "F" means that the string is formatted as "{Comment} of {Value with units}" (e.g. "wavelength of 300 nm").

In all cases you can add a number to specify the number of digits that shall be used. E.g. "U3" results in "1.23 nm", while "U4" results in "1.234 nm". You can add further formatting commands after a comma, but these are ignored. This behavior ensures that the same formatting strings can be used for both PhysicalValue and PhysicalValueComplex.

For any other string the ToString(format, formatProvider) of the Value is used.

Parameters

formatProvider

Optional culture specific format provider used for formatting the value (if format is not "U" or "F").

Returns

A System.String that represents this instance.
