OrientationByDirectionAngles Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
A class for defining orientations by direction angles, i.e. the angles between the direction to be defined and each of the Cartesian axis respectively. More...

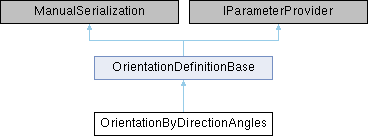

Inheritance diagram for OrientationByDirectionAngles:

Public Member Functions
override object	Clone ()
	Creates a new object that is a copy of the current instance.
override Quaternion	CorrespondingQuaternion ()
	Gets the quaternion corresponding to this orientation definition.
override bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance. Please note: If just the resulting orientation of this and the otherObject shall be compared, the method IsEquivalent of the base class should be used.
	OrientationByDirectionAngles ()
	Default constructor. Sets rho and sigma to 90° and tau to 0. So the defined direction is equal to the z-axis.
	OrientationByDirectionAngles (double firstAngle, double secondAngle, IndependentDirectionAngles independentAngles, bool positiveZ)
	Constructor with two direction angles. The third one is calculated automatically.
	OrientationByDirectionAngles (double firstAngle, double secondAngle, IndependentDirectionAngles independentAngles, bool positiveZ, double zeta, bool directionAnglesApplicationBeforeZetaRotation)
	Constructor with all two independent angles and all other parameters.
	OrientationByDirectionAngles (double rho, double sigma, double tau)
	Constructor with direction angles only.
	OrientationByDirectionAngles (double rho, double sigma, double tau, double zeta)
	Constructor with all angles.
	OrientationByDirectionAngles (double rho, double sigma, double tau, double zeta, bool directionAnglesApplicationBeforeZetaRotation)
	Constructor with all parameters.
	OrientationByDirectionAngles (OrientationByDirectionAngles orientationToCopy)
	Copy constructor.
void	SetDirectionAngles (double firstAngle, double secondAngle, IndependentDirectionAngles independentAngles, bool positiveHalfSpaceForThirdAngle)
	Sets the direction angles rho, sigma and tau. The squared cosines of rho, sigma and tau have to sum to 1.
void	SetDirectionAngles (double rho, double sigma, double tau)
	Sets the direction angles rho, sigma and tau. The squared cosines of rho, sigma and tau have to sum to 1.
override string	ToString ()
	Overridden ToString method.
Public Member Functions inherited from OrientationDefinitionBase
Quaternion	CorrespondingQuaternion ()
	Gets the quaternion corresponding to this orientation definition.
virtual bool	IsEquivalent (OrientationDefinitionBase orientationDefinitionToCompare)
	Determines whether another orientation definition is equivalent.
	OrientationDefinitionBase ()
	Default constructor.

Properties
double	AngleRho [get]
	Gets and sets the direction angle rho, which is the angle between the x-axis and the direction to define. The squared cosines of rho, sigma and tau have to sum to 1.
double	AngleSigma [get]
	Gets and sets the direction angle sigma, which is the angle between the y-axis and the direction to define. The squared cosines of rho, sigma and tau have to sum to 1.
double	AngleTau [get]
	Gets and sets the direction angle tau, which is the angle between the z-axis and the direction to define. The squared cosines of rho, sigma and tau have to sum to 1.
double	AngleZeta [get, set]
	Gets and sets the angle zeta which is a rotation about the z-axis. This rotation can be performed either before or after applying the direction angles, which is defined by DirectionAnglesApplicationBeforeZetaRotation. If this rotation is performed first, the flag AnglesReferToCSRotatedByZeta indicates, if the direction angles refer to the not rotated CS anyway.
override OrientationDefinitionType	DefinitionType [get]
	Gets the OrientationDefinitionType associated with the current implementation of IOrientationDefinition.
bool	DirectionAnglesApplicationBeforeZetaRotation [get, set]
	Gets or sets if the inclination of the z-axis by applying the direction angles shall be done before the rotation about the z-axis (by AngleZeta).
IndependentDirectionAngles	IndependentAngles [get]
	Gets an information which of the three angles are independent and are used to calculate the third one.
override List< SimpleRotation >	ListOfRotations [get]
	Gets a list of simple rotations, describing the complete rotation as a sequence.
override List< Parameter >	ParameterRunParameters [get]
Properties inherited from OrientationDefinitionBase
OrientationDefinitionType	DefinitionType [get]
	Gets the OrientationDefinitionType associated with the current implementation of IOrientationDefinition.
List< SimpleRotation >	ListOfRotations [get]
	Gets a list of simple rotations, describing the complete rotation as a sequence.
virtual List< Parameter >	ParameterRunParameters [get]

Additional Inherited Members
Static Public Member Functions inherited from OrientationDefinitionBase
static OrientationDefinitionBase	ConvertOrientationDefinition (OrientationDefinitionBase sourceOrientation, OrientationDefinitionType targetType)
	Help method which converts any orientation definition object into an equivalent definition object of another type.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
A class for defining orientations by direction angles, i.e. the angles between the direction to be defined and each of the Cartesian axis respectively.

Constructor & Destructor Documentation

OrientationByDirectionAngles() [1/6]

OrientationByDirectionAngles	(	double	firstAngle,
		double	secondAngle,
		IndependentDirectionAngles	independentAngles,
		bool	positiveZ
	)

Constructor with two direction angles. The third one is calculated automatically.

Parameters

firstAngle	Angle between first axis and the direction to define.
secondAngle	Angle between second axis and the direction to define.
independentAngles	Flag that indicates the meaning of the parameters firstAngle and secondAngle.
positiveZ	If true, the z-axis will lie inside the +z half space, if false, inside the -z half space

OrientationByDirectionAngles() [2/6]

OrientationByDirectionAngles	(	double	rho,
		double	sigma,
		double	tau
	)

Constructor with direction angles only.

Parameters

rho	Angle between x-axis and the direction to define.
sigma	Angle between y-axis and the direction to define.
tau	Angle between z-axis and the direction to define.

OrientationByDirectionAngles() [3/6]

OrientationByDirectionAngles	(	double	rho,
		double	sigma,
		double	tau,
		double	zeta
	)

Constructor with all angles.

Parameters

rho	Angle between x-axis and the direction to define.
sigma	Angle between y-axis and the direction to define.
tau	Angle between z-axis and the direction to define.
zeta	angle zeta which is a rotation about the z-axis.

OrientationByDirectionAngles() [4/6]

OrientationByDirectionAngles	(	double	firstAngle,
		double	secondAngle,
		IndependentDirectionAngles	independentAngles,
		bool	positiveZ,
		double	zeta,
		bool	directionAnglesApplicationBeforeZetaRotation
	)

Constructor with all two independent angles and all other parameters.

Parameters

firstAngle	Angle between first axis and the direction to define.
secondAngle	Angle between second axis and the direction to define.
independentAngles	Flag that indicates the meaning of the parameters firstAngle and secondAngle.
positiveZ	If true, the z-axis will lie inside the +z half space, if false, inside the -z half space
zeta	angle zeta which is a rotation about the z-axis.
directionAnglesApplicationBeforeZetaRotation	flag, if the inclination of the z-axis by applying the direction angles shall be done before the rotation about the z-axis (by AngleZeta).

OrientationByDirectionAngles() [5/6]

OrientationByDirectionAngles	(	double	rho,
		double	sigma,
		double	tau,
		double	zeta,
		bool	directionAnglesApplicationBeforeZetaRotation
	)

Constructor with all parameters.

Parameters

rho	Angle between x-axis and the direction to define.
sigma	Angle between y-axis and the direction to define.
tau	Angle between z-axis and the direction to define.
zeta	angle zeta which is a rotation about the z-axis.
directionAnglesApplicationBeforeZetaRotation	flag, if the inclination of the z-axis by applying the direction angles shall be done before the rotation about the z-axis (by AngleZeta).

OrientationByDirectionAngles() [6/6]

OrientationByDirectionAngles

(

OrientationByDirectionAngles

orientationToCopy

)

Copy constructor.

Parameters

orientationToCopy

orientation object to copy

Member Function Documentation

Clone()

override object Clone

(

)

Creates a new object that is a copy of the current instance.

Returns

A new object that is a copy of this instance.

CorrespondingQuaternion()

override Quaternion CorrespondingQuaternion

(

)

Gets the quaternion corresponding to this orientation definition.

Returns

The quaternion corresponding to this orientation definition.

Equals()

override bool Equals	(	object	otherObject,
		EqualityIntent	equalityIntent
	)

Determines whether the specified Object is equal to this instance. Please note: If just the resulting orientation of this and the otherObject shall be compared, the method IsEquivalent of the base class should be used.

Parameters

otherObject	The Object to compare with this instance.
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns

true if the specified Object is equal to this instance; otherwise, false.

SetDirectionAngles() [1/2]

void SetDirectionAngles	(	double	firstAngle,
		double	secondAngle,
		IndependentDirectionAngles	independentAngles,
		bool	positiveHalfSpaceForThirdAngle
	)

Sets the direction angles rho, sigma and tau. The squared cosines of rho, sigma and tau have to sum to 1.

Parameters

firstAngle	Angle between first axis and the direction to define.
secondAngle	Angle between second axis and the direction to define.
independentAngles	Flag that indicates the meaning of the parameters firstAngle and secondAngle.
positiveHalfSpaceForThirdAngle	If true, the z-axis will lie inside the positive half space of that axis which corresponds to the independent angle, if false, inside the negative half space.

SetDirectionAngles() [2/2]

void SetDirectionAngles	(	double	rho,
		double	sigma,
		double	tau
	)

Sets the direction angles rho, sigma and tau. The squared cosines of rho, sigma and tau have to sum to 1.

Parameters

rho	Angle between x-axis and the direction to define.
sigma	Angle between y-axis and the direction to define.
tau	Angle between z-axis and the direction to define.

ToString()

override string ToString

(

)

Overridden ToString method.

Returns

A System.String that represents this instance.
