AxisRotationSequence Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class for describing a sequence of rotations about coordinate axes More...

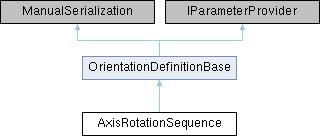

Inheritance diagram for AxisRotationSequence:

Public Member Functions
int	Add (SimpleRotation rotationToAdd)
	Adds a new rotation to the sequence.
	AxisRotationSequence ()
	Default constructor. Creates an empty list that represents no rotations at all.
	AxisRotationSequence (AxisRotationSequence rotationSequence)
	Copy constructor.
	AxisRotationSequence (List< SimpleRotation > rotationList, bool fixedAxes)
	Constructor that gets a list of simple rotations (SimpleRotation) and the flag indicating whether the rotation axes are fix.
	AxisRotationSequence (SimpleRotation[] rotationArray, bool fixedAxes)
	Constructor that gets an array of simple rotations (SimpleRotation) and the flag indicating whether the rotation axes are fix.
override object	Clone ()
	Creates a new object that is a copy of the current instance.
override Quaternion	CorrespondingQuaternion ()
	Gets the quaternion corresponding to this orientation definition.
override bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance. Please note: If just the resulting orientation of this and the otherObject shall be compared, the method IsEquivalent of the base class should be used.
string[]	GetNamesOfAxes (bool useSmallGreekLetters=false)
	Gets the names of the axes about which it is rotated in each step.
override bool	IsEquivalent (OrientationDefinitionBase orientation)
	Determines whether another orientation definition is equivalent.
override string	ToString ()
	Overridden ToString method.
Public Member Functions inherited from OrientationDefinitionBase
Quaternion	CorrespondingQuaternion ()
	Gets the quaternion corresponding to this orientation definition.
	OrientationDefinitionBase ()
	Default constructor.

Properties
double[]	AxisRotations_ForParameterRun [get, set]
	Gets and sets the rotation angles that make up an Axis Rotation Sequence. For Parameter Run only!
int	Count [get]
	Gets the number of rotations.
override OrientationDefinitionType	DefinitionType [get]
	Gets the OrientationDefinitionType associated with the current implementation of IOrientationDefinition.
bool	FixedAxes [get, set]
	Gets or sets a flag, indicating whether or not the axes are fix during rotation (if this is not defined by the definition type). If true, the rotations are done about the fix axes of the reference coordinate system. If false, each rotation is done about a non-fix axis of the current coordinate system (yet rotated by previous rotation list members).
override List< SimpleRotation >	ListOfRotations [get]
	Get the complete list of simple rotations. Set has to be done via RotationSequenceList.
override List< Parameter >	ParameterRunParameters [get]
List< SimpleRotation >	RotationSequenceList [get, set]
	Get or set the complete list of simple rotations.
SimpleRotation	this[int index] [get, set]
	Indexer to get or set the rotation for a certain index.
Properties inherited from OrientationDefinitionBase
OrientationDefinitionType	DefinitionType [get]
	Gets the OrientationDefinitionType associated with the current implementation of IOrientationDefinition.
List< SimpleRotation >	ListOfRotations [get]
	Gets a list of simple rotations, describing the complete rotation as a sequence.
virtual List< Parameter >	ParameterRunParameters [get]

Additional Inherited Members
Static Public Member Functions inherited from OrientationDefinitionBase
static OrientationDefinitionBase	ConvertOrientationDefinition (OrientationDefinitionBase sourceOrientation, OrientationDefinitionType targetType)
	Help method which converts any orientation definition object into an equivalent definition object of another type.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class for describing a sequence of rotations about coordinate axes

Constructor & Destructor Documentation

AxisRotationSequence() [1/3]

AxisRotationSequence	(	List< SimpleRotation >	rotationList,
		bool	fixedAxes
	)

Constructor that gets a list of simple rotations (SimpleRotation) and the flag indicating whether the rotation axes are fix.

Parameters

rotationList	List of simple rotations determining the rotation sequence
fixedAxes	That flag indicates whether or not the axes are fix during rotation. If true, the rotations are done about the fix axes of the reference coordinate system. If false, each rotation is done about a non-fix axis of the current coordinate system (yet rotated by previous rotation list members).

AxisRotationSequence() [2/3]

AxisRotationSequence	(	SimpleRotation[]	rotationArray,
		bool	fixedAxes
	)

Constructor that gets an array of simple rotations (SimpleRotation) and the flag indicating whether the rotation axes are fix.

Parameters

rotationArray	Array of simple rotations determining the rotation sequence
fixedAxes	That flag indicates whether or not the axes are fix during rotation. If true, the rotations are done about the fix axes of the reference coordinate system. If false, each rotation is done about a non-fix axis of the current coordinate system (yet rotated by previous rotation list members).

AxisRotationSequence() [3/3]

AxisRotationSequence

(

AxisRotationSequence

rotationSequence

)

Copy constructor.

Parameters

rotationSequence

Rotation sequence to copy

Member Function Documentation

Add()

int Add

(

SimpleRotation

rotationToAdd

)

Adds a new rotation to the sequence.

Parameters

rotationToAdd

Rotation to be added.

Returns

Index of the newly added rotation

Clone()

override object Clone

(

)

Creates a new object that is a copy of the current instance.

Returns

A new object that is a copy of this instance.

CorrespondingQuaternion()

override Quaternion CorrespondingQuaternion

(

)

Gets the quaternion corresponding to this orientation definition.

Returns

The quaternion corresponding to this orientation definition.

Equals()

override bool Equals	(	object	otherObject,
		EqualityIntent	equalityIntent
	)

Determines whether the specified Object is equal to this instance. Please note: If just the resulting orientation of this and the otherObject shall be compared, the method IsEquivalent of the base class should be used.

Parameters

otherObject	The Object to compare with this instance.
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns

true if the specified Object is equal to this instance; otherwise, false.

GetNamesOfAxes()

string[] GetNamesOfAxes

(

bool

useSmallGreekLetters = false

)

Gets the names of the axes about which it is rotated in each step.

Parameters

useSmallGreekLetters

If this optional parameter is set to true, "ξ", "η", and "ζ" are used for the axis labels instead of "X", "Y", and "Z", respectively.

Returns

"X", "Y", or "Z" for each step; appended with the correct number of apostrophes if not in fixes axes mode.

IsEquivalent()

override bool IsEquivalent ( OrientationDefinitionBase  orientation )

virtual

Determines whether another orientation definition is equivalent.

Parameters

orientation

IOrientationDefinition which has to be compared.

Returns

True, if the two objects are equivalent, false otherwise.

Reimplemented from OrientationDefinitionBase.

ToString()

override string ToString

(

)

Overridden ToString method.

Returns

A System.String that represents this instance.

Property Documentation

AxisRotations_ForParameterRun

double [] AxisRotations_ForParameterRun

getset

Gets and sets the rotation angles that make up an Axis Rotation Sequence. For Parameter Run only!

this[int index]

SimpleRotation this[int index]

getset

Indexer to get or set the rotation for a certain index.

Parameters

index

The index of the rotation.

Returns

The rotation with the given index.
