The IFTA Optimization Document. More...

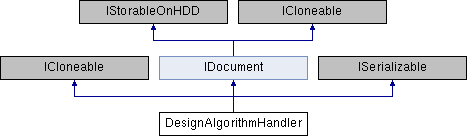

Inheritance diagram for DesignAlgorithmHandler:

Public Member Functions
	DesignAlgorithmHandler ()
	Standard constructor

void	DoAllSelectedSteps (IterationDataOutput iterationDataOutput, WorkerThread worker)
	Perform all selected steps More...

ComplexField	DoForwardProp ()
	Calculate complex amplitude of output field More...

void	DoGeometricalOpticsBeamShaping ()
	Performs a geometric optics beam shaping

void	DoSetInitialTransmissionStep (IterationDataOutput iterationDataOutput)
	Perform step for generating the initial transmission function. More...

void	DoSNRPhaseStep (IterationDataOutput iterationDataOutput)
	Perform SNR optimization for phase-only transmission. More...

void	DoSNRQuantStep (IterationDataOutput iterationDataOutput)
	Perform SNR optimization for quantized transmission. More...

void	DoSoftQuantStep (IterationDataOutput iterationDataOutput)
	Perform soft quantization More...

void	DoSPOStep (IterationDataOutput iterationDataOutput)
	Perform step for signal phase synthesis. More...

double	GetConversionEfficiency (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate conversion efficiency More...

double	GetDCEfficiency (ComplexField outField)
	Calculate zeroth order intensity relative to the input field power. More...

double	GetMaxNoiseIntensity (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate maximum relative intensity of stray light. More...

Complex	GetOptimalScaleFactor (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate optimal scale factor. More...

ConstraintDomain	GetSignalDomain (DesignStep designStep)
	Construct signal domain for specified design step More...

double	GetSNR (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate signal-to-noise ratio More...

ConstraintDomain	GetTransmissionDomain (DesignStep designStep)
	Construct transmission domain for specified design step More...

double	GetUniformityError (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate uniformity error More...

double	GetWindowEfficiency (ComplexField outField, SamplingParameters samplingParametersOfOutField)
	Calculate window efficiency More...

void	Save (string fileName)
	Save whole data structure More...

void	StopOptimizationImmediately ()
	If an IFTA optimization is running in a separate thread the optimization is stopped immediately. If the optimization is not running in a separate thread nothing will happen.

Public Member Functions inherited from IDocument
void	Reload ()
	Reload function for the document

Static Public Member Functions
static DesignAlgorithmHandler	Load (string fileName)
	Loads the specified file name. Works independently from whether the document has been saved without view settings (as prior to VL 6.0) or with view settings. More...

Public Attributes
bool[]	AnalysisMeritFunctionsSelection
	Stores which merit functions are selected for analysis of transmission after the design. The array index corresponds to the integer value of members of the LoggingFunctions enum.

ConstraintSpecification	ConstraintSpecification
	Specification of the design problem

bool	CreateOutputFieldAnimation
	Determines whether output field animation is to be created

bool	CreateTransmissionAnimation
	Determines whether transmission animation is to be created.

DesignMethod	DesignMethod
	Selected design method (IFTA or geometric beam shaping).

InitialTransmissionMethod	InitialTransmissionMethod
	Type of initial transmission function

bool[]	LoggingFunctionSelection
	Stores which merit functions are selected for logging. The array index corresponds to the integer value of the members of the LoggingFunctions enum.

int	NumItSNRPhase
	Number of iterations during SNR optimization for phase-only transmission.

int	NumItSNRQuant
	Number of iterations during SNR optimization for quantized transmission.

int	NumItSoftQuant
	Number of iterations during soft quantization step.

int	NumItSPO
	Number of iterations during signal phase synthesis step.

bool	OmitFinalTransmissionProjection
	Determines whether final transmission projection during SNR optimization for phase-only transmission is to be omitted.

ComplexAmplitudeBitmapConversion	OutputFieldAnimationCreator
	Settings for the output field animation to be created.

bool	SetInitialTransmissionStepIsEnabled
	Determines whether the design step to generate an initial transmission function is enabled.

bool	ShowCalculationTime
	Specifies whether the overall calculation time is logged.

bool	ShowFinalTransmissionAndOutputField
	Show transmission and output field after design completed

bool	SNRPhaseStepIsEnabled
	Determines whether SNR optimization for phase-only transmission is enabled.

bool	SNRQuantStepIsEnabled
	Determines whether SNR optimization for quantized transmission is enabled.

bool	SoftCodingSNRPhase
	Determines whether transmission constraint is to be introduced softly during SNR optimization for phase-only transmission.

bool	SoftCodingSPO
	Determines whether transmission constraint is to be introduced softly during signal phase synthesis.

bool	SoftQuantStepIsEnabled
	Determines whether soft quantization step is enabled.

bool	SPOStepIsEnabled
	Determines whether signal phase synthesis step is enabled.

ComplexAmplitudeBitmapConversion	TransmissionAnimationCreator
	Settings for the transmission animation to be created.

bool	TransmissionHasSphericalPhaseRadius
	Determines whether a spherical phase radius is given for the transmission.

double	TransmissionSphericalPhaseRadius
	Optional spherical phase radius for the transmission.

bool	UsePolarSepability
	Determines whether separability according to polar coordinates is assumed

Properties
bool	ImposeLinearScaleError `[get, set]`
	Gets and sets whether a linear scale error shall be imposed.

bool	ImposeMaskScaleError `[get, set]`
	Gets and sets whether mask scale errors shall be imposed.

double	LinearScaleFactor `[get, set]`
	Gets and sets the linear scale factor for tolerancing analysis.

bool	LoggingEnabled `[get, set]`
	Public property to set and get whether logging is enabled or disabled.

double[]	MaskScaleErrors `[get, set]`
	Gets and sets the mask scale errors for tolerancing analysis.

int	NumberOfSteps `[get, set]`
	Gets and sets the number of steps for tolerancing analysis.

double	ScaleFactorFrom `[get, set]`
	Gets and sets the start value of the scale factor for tolerancing analysis.

double	ScaleFactorTo `[get, set]`
	Gets and sets the end value of the scale factor for tolerancing analysis.

int	SelectedMaskIndex `[get, set]`
	Gets and sets the index of the mask for which tolerancing is done. 0 refers to applying a linear scale error, 1 to the mask with a phase difference of π, 2 to the mask with a phase difference of π/2, 3 to a phase difference of π/4, and 4 to a phase difference of π/8.

bool	ShowOutputField `[get, set]`
	Gets and sets whether the output field shall be shown if "Recalculate" is clicked on the Analysis tab.

bool	ShowTolerancingAnimation `[get, set]`
	Gets and sets whether a tolerancing animation shall be shown.

bool	SuspendLogging `[get, set]`
	Gets and sets whether logging of the merit functions is currently suspended. Only has an effect when logging is enabled and a simulation is currently running. More...

ComplexAmplitudeBitmapConversion	TolerancingAnimationSettings `[get, set]`
	Gets and sets the settings for the tolerancing animation.

ComplexField	Transmission `[get, set]`
	Gets and sets the current transmission.

Properties inherited from IDocument
VirtualLabSession	Session `[get, set]`
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession

NodeVLExplorer	TreeStructure `[get]`
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer

DocumentType	TypeOfDocument `[get]`
	Gets an enum entry specifying the type of the document.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
The IFTA Optimization Document.

Member Function Documentation

◆ DoAllSelectedSteps()

void DoAllSelectedSteps	(	IterationDataOutput	iterationDataOutput,
		WorkerThread	worker
	)

Perform all selected steps

Parameters

iterationDataOutput	Delegates and parameters to be used for visualizing progress during iteration, for logging merit functions, and for creating animations.
worker	The design thread.

◆ DoForwardProp()

ComplexField DoForwardProp ( )

Calculate complex amplitude of output field

Returns: The output field
