ProfileHeightInterface Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
This is the base class for all optical interfaces which can be described by a profile height function h(x, y). The profile height corresponds to the z-position of the optical interface at a given lateral position. More...

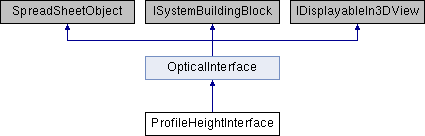

Inheritance diagram for ProfileHeightInterface:

Public Member Functions
void	CalculateInterfaceDerivativeDXDY (VectorD position, out double mx, out double my, bool calculateFirstDerivative=true, bool useScaling=true)
	Calculates the derivative of the interface in x- and y-direction on the specified position. Both derivatives are set to zero if the interface is quantized, pixelated or if we are outside the inner definition area. Scaling is also considered by this function. More...
virtual Vector3D	CalculateNormalVector (VectorD position)
	Calculates the normal vector for the given lateral position. The normal vector points always in positive z-direction. To invert the normal vector (so that it shows in negative z-direction) multiply -1. An inversion is necessary to calculate the refraction of rays traveling in negative z-direction. More...
void	CalculateSecondDerivative (VectorD position, out double secondDerivativeX, out double secondDerivativeY)
	Calculates the second derivative of the interface profile in x- and y-direction on the specified position. Both derivatives are set to zero if the interface is quantized, pixelated or if we are outside the inner definition area. Scaling is also considered by this function. More...
double	EvaluateHeightOutsideInnerDefinitionArea (bool includeQuantization=true)
	public method to evaluate the height outside the inner definition area More...
double	EvaluateHeightOutsideOuterDefinitionArea (bool includeQuantization=true)
	public method to evaluate the height outside the outer definition area More...
bool	GetIntersectionPoint (ref PlaneWaveData ray, ref double zPosition, bool findLeftRightTransition, out Vector3D normalVector)
	This function handles the apertures, periodization and scaling. GetIntersectionPointOfElementaryInterface is called by this function and handles the elementary interface. More...
double[]	GetIntersectionsWithLine (double zPos, double lineShift, bool searchParallelToXAxis, double minValueOfFreeCoordinate, double maxValueOfFreeCoordinate, double transitionPointAccuracy, out double[] signOfDerivatives)
	Calculate the intersections of the surface with a line parallel to X-axis or to Y-axis with given start and end coordinate. May be overridden in derived interfaces. More...
override PointInterfaceRelation	GetPointInterfaceRelation (Vector3D position)
	Checks the position of a point relative to the interface. A point can be in the medium on the right side of a interface, in the medium on the left side of the interface or lateral outside of the interface. More...
override sealed List< VectorD >	GetPolygonPoints (double startCoordinate, double endCoordinate, double accuracyFactor=1)
	Gets the polygon points representing this interface including scaling, periodization, consideration of the definition areas, ... More...
bool	IsAbsorbingAtPosition (VectorD position)
	Returns true if the interface absorbs the light at the position (x,y), otherwise false. More...
override bool	IsConsistent (ref List< ConsistenyErrorOrWarning > errorList, EditedInType editedFrom=EditedInType.Component)
	Method to check whether the interface is defined consistently. More...
VectorD	MinimumFeatureSize (double accuracyFactor)
	Gets the minimum feature size of the interface. More...
double	ProfileHeight (double x, double y)
	Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction. More...
double	ProfileHeight (VectorD position)
	Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction. More...
double	ProfileHeight (VectorD position, out bool isAbsorbed)
	Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction. More...
double	ProfileHeight (VectorD position, out bool isAbsorbed, bool includeQuantization, bool subtractHeightOffset=true, double? nanValue=null)
	profile height calculation which includes pixelation, quantization and scaling in x-, y- and z-direction More...
Public Member Functions inherited from OpticalInterface
double	GetZExtension ()
	Gets the overall extension of the interface. More...
void	GetZExtension (out double negZDir, out double posZDir, bool applyQuantization=true)
	The z-extension of the optical interface. Quantization and pixelation effects are considered. More...
void	GetZExtensionOnElementaryCell (out double negZCell, out double posCell)
	The z-extension of the optical interface on elementary cell. More...
void	GetZExtensionOnInnerArea (out double negZArea, out double posArea)
	The z-extension of the optical interface on inner definition area. More...
void	GetZExtensionOnInnerShape (out double negZDir, out double posZDir, bool includeQuantization)
	The z-extension of the optical interface on shape of inner definition area. More...
void	GetZExtensionOnOuterShape (out double negZDir, out double posZDir, bool includeQuantization)
	The z-extension of the optical interface on shape of outer definition area. More...

Properties
virtual bool	ContainsFresnelZones [get, set]
	If true the interpolation and the finding of ray intersection points is optimized for optical interfaces the contains Fresnel zones. That are interfaces that may contain 2Pi, 4Pi, 6Pi, ... jumps. The sampling points represent the height of the interface on a special point and are interpolated using a cubic interpolation. The interpolation maintains the Fresnel zones. If false the interpolation and finding of the ray intersection points is optimized for function that have hight frequency interface profiles but no Fresnel zones. Multiple ray intersections are taken into account. Setting this property to true will set the IsPixelated and IsSmoothInterface properties to false.
double	FresnelZonesRelativePositionOnZAxis [get, set]
	Gets and sets the relative position on the z-axis for the Fresnel zones. More...
bool	IsPeriodical [get, set]
	If true the structure is periodical. Otherwise non periodical.
virtual bool	IsQuantized [get, set]
	If true it indicates that the height profile has discrete height levels. Only pixelated height profiles can be quantized. This means if somebody changes this flag to true the IsPixelated flag will be also set to true.
bool	IsRotationalSymmetric [get]
	Gets whether the given surface is rotational symmetric. The following conditions must be fulfilled for rational symmetry: More...
virtual int	NumberOfHeightLevels [get, set]
	Contains the number of height levels of a quantized height profile. If a specific number of height levels is set the IsQuantized flag is switched to true.
virtual VectorD	Period [get, set]
	The period length in x and y direction of the grating used for 2d and 3d rigorous analysis. If the structure is not periodical the period must be equal to the aperture diameter of the optical interface. The default value of the period is equal to the aperture size so the element is not really periodically.
VectorD	PixelSize [get, set]
	For pixelated interfaces only. If IsPixelated is false the property may return any value.
virtual double	TotalProfileHeight [get, set]
	For interfaces with Fresnel zones only. The total height of the profile. This means the height of the 2Pi, 4Pi, ... jumps of the interface. If ContainsFresnelZones is false the property may return any value.
Properties inherited from OpticalInterface
bool	Coated [get]
	gets whether the interface is coated
CoatingBase	Coating [get, set]
	gets and sets the coating if there is one
CoatingOrientation	CoatingOrientation [get, set]
	Gets and sets the orientation of a coating: Is it on the front side of its surface or on the back side? This has an effect on the order in which the layer sequence will be considered during simulation.
DefinitionAreaSettings	DefinitionArea [get, set]
	Gets and sets the outer definition area (all periods) of the optical interface. Can be overridden in derived classes. More...
DefinitionAreaSettings	DefinitionAreaElementaryCell [get, set]
	Gets and sets the inner definition area (elementary cell = one period) of the optical interface. Can be overridden in derived classes. More...
double	ScalingAlpha [get, set]
	property to set and get scaling factor for scaling in z-direction.
double	ScalingBeta [get, set]
	property to set and get scaling factor for scaling in x-direction
double	ScalingGamma [get, set]
	property to set and get scaling factor for scaling in y-direction

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
This is the base class for all optical interfaces which can be described by a profile height function h(x, y). The profile height corresponds to the z-position of the optical interface at a given lateral position.

Member Function Documentation

CalculateInterfaceDerivativeDXDY()

void CalculateInterfaceDerivativeDXDY	(	VectorD	position,
		out double	mx,
		out double	my,
		bool	calculateFirstDerivative = true,
		bool	useScaling = true
	)

Calculates the derivative of the interface in x- and y-direction on the specified position. Both derivatives are set to zero if the interface is quantized, pixelated or if we are outside the inner definition area. Scaling is also considered by this function.

Parameters

position	Position to calculate the derivative on.
mx	The derivative in x-direction
my	The derivative in y-direction
calculateFirstDerivative	Optional parameter specifying whether to use this function to calculate the first (true= or second (false) derivative of the height profile.
useScaling	Optional parameter specifying whether to scale the derivative according to ScalingAlpha. ScalingBeta, and ScalingGamma. Needs only to be false for the numerical calculation of the second derivative to avoid scaling twice.

CalculateNormalVector()

virtual Vector3D CalculateNormalVector ( VectorD  position )

virtual

Calculates the normal vector for the given lateral position. The normal vector points always in positive z-direction. To invert the normal vector (so that it shows in negative z-direction) multiply -1. An inversion is necessary to calculate the refraction of rays traveling in negative z-direction.

Parameters

position

Lateral position for the normal vector calculation.

Returns

Normal vector of the interface for the given lateral position.

CalculateSecondDerivative()

void CalculateSecondDerivative	(	VectorD	position,
		out double	secondDerivativeX,
		out double	secondDerivativeY
	)

Calculates the second derivative of the interface profile in x- and y-direction on the specified position. Both derivatives are set to zero if the interface is quantized, pixelated or if we are outside the inner definition area. Scaling is also considered by this function.

Parameters

position	Position to calculate the derivative on.
secondDerivativeX	The second derivative in x-direction
secondDerivativeY	The second derivative in y-direction

EvaluateHeightOutsideInnerDefinitionArea()

double EvaluateHeightOutsideInnerDefinitionArea

(

bool

includeQuantization = true

)

public method to evaluate the height outside the inner definition area

Parameters

includeQuantization

Optional parameter to indicate whether the calling function treats the quantization correctly. Needs to be set to false if the z-extension of the unquantized interface is determined to calculate the height levels of the quantized interface.

Returns

the height outside the outer definition area

EvaluateHeightOutsideOuterDefinitionArea()

double EvaluateHeightOutsideOuterDefinitionArea

(

bool

includeQuantization = true

)

public method to evaluate the height outside the outer definition area

Parameters

includeQuantization

Optional parameter to indicate whether the calling function treats the quantization correctly. Needs to be set to false if the z-extension of the unquantized interface is determined to calculate the height levels of the quantized interface.

Returns

the height outside the outer definition area

GetIntersectionPoint()

bool GetIntersectionPoint	(	ref PlaneWaveData	ray,
		ref double	zPosition,
		bool	findLeftRightTransition,
		out Vector3D	normalVector
	)

This function handles the apertures, periodization and scaling. GetIntersectionPointOfElementaryInterface is called by this function and handles the elementary interface.

This function calculates the intersection point between the input ray and the present interface. The search is always done in the propagation direction of the ray. This means is the IsPositiveZ property of the ray is true then the search runs in positive z-direction. If the IsPositiveZ property is false the search runs in negative z-direction. After success it returns the position of the intersection point and the normal vector of the interface.

Parameters

ray	In the beginning of the function this ray is the incident ray. After the success of the function the x,y position of the ray is the x,y position of the intersection point.
zPosition	The z-position of the ray. Since all rays start and end usually in the same plane the z-position is not stored inside the PlaneWaveData structure. So during the tracing of one PlaneWaveData the z-position has to be stored separate.

///

Parameters

findLeftRightTransition	If true the function tries to find an interface transition between the medium globally on the left side of the interface and the medium globally on the right side of the interface. If false the function tries to find an interface transition between the medium on the right side of the interface and on the medium on the left side of the interface.
normalVector	The normal vector of the interface on the intersection point. The normal vector points in positive z-direction for rays traveling in positive z-direction and it points in negative z-direction for rays traveling in negative z-direction.

Returns

True if an intersection point was found.

GetIntersectionsWithLine()

double[] GetIntersectionsWithLine	(	double	zPos,
		double	lineShift,
		bool	searchParallelToXAxis,
		double	minValueOfFreeCoordinate,
		double	maxValueOfFreeCoordinate,
		double	transitionPointAccuracy,
		out double[]	signOfDerivatives
	)

Calculate the intersections of the surface with a line parallel to X-axis or to Y-axis with given start and end coordinate. May be overridden in derived interfaces.

Parameters

zPos	Z-position of the line (2-D FMM) that is searched for media transitions. Must be given in interface cs(!)
lineShift	Line shift (1) on Y-axis iff searchParallelXAxis == true, (2) on X-axis iff searchParallelXAxis == false
searchParallelToXAxis	Iff true, the search line is parallel to X-axis; iff false, search line is parallel to Y-axis
minValueOfFreeCoordinate	Start coordinate on the line. Interface coordinates.
maxValueOfFreeCoordinate	End coordinate on the line. Interface coordinates.
transitionPointAccuracy	Accuracy Factor.
signOfDerivatives	Out parameter for sign of derivatives at intersection points.

Returns

Double array with intersection points on that line. Null if no intersections can be found.

GetPointInterfaceRelation()

override PointInterfaceRelation GetPointInterfaceRelation

(

Vector3D

position

)

Checks the position of a point relative to the interface. A point can be in the medium on the right side of a interface, in the medium on the left side of the interface or lateral outside of the interface.

Parameters

position

The position to check.

Returns

A PointInterfaceRelation enum indicating the relation of the point to the interface.

GetPolygonPoints()

override sealed List< VectorD > GetPolygonPoints	(	double	startCoordinate,
		double	endCoordinate,
		double	accuracyFactor = 1
	)

Gets the polygon points representing this interface including scaling, periodization, consideration of the definition areas, ...

Parameters

startCoordinate	The x-coordinate of the start point (y = 0).
endCoordinate	The x-coordinate of the end point (y = 0).
accuracyFactor	The accuracy factor. This optional parameter is equal to one by default. 20 × the accuracy polygon points are calculated whereas it is ensured that an odd number of polygon points is returned.

Returns

A list of VectorD objects storing x-position and corresponding height.

IsAbsorbingAtPosition()

bool IsAbsorbingAtPosition

(

VectorD

position

)

Returns true if the interface absorbs the light at the position (x,y), otherwise false.

Parameters

position

The lateral position to check.

Returns

True if the interface absorbs the light at the position (x,y), otherwise false.

IsConsistent()

override bool IsConsistent	(	ref List< ConsistenyErrorOrWarning >	errorList,
		EditedInType	editedFrom = EditedInType.Component
	)

Method to check whether the interface is defined consistently.

Parameters

errorList	Reference to a list which can already contain some messages. If the interface is inconsistent the error messages are appended to this list. If null, a new list is created.
editedFrom	Specifies from where this interface is edited. If this optional parameter is set to EditedInType.Catalog then a SpreadSheetObject having no subsequent medium is allowed even if AllowedSubsequentMedium is true. The reasoning for this optional parameter is that optical interfaces in the catalog do not have a subsequent medium.

Returns

true, if the interface is consistent, otherwise false.

MinimumFeatureSize()

VectorD MinimumFeatureSize

(

double

accuracyFactor

)

Gets the minimum feature size of the interface.

Parameters

accuracyFactor

The accuracy factor used for the calculation of the minimum feature size.

Returns

The minimum feature size (in meters) for both x- and y-direction.

ProfileHeight() [1/4]

double ProfileHeight	(	double	x,
		double	y
	)

Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction.

Parameters

x	The lateral x-position.
y	The lateral y-position.

Returns

Returns the profile height depending on the lateral position.

ProfileHeight() [2/4]

double ProfileHeight

(

VectorD

position

)

Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction.

Parameters

position

Position on which the height profile shall be calculated.

Returns

Height value on that position.

ProfileHeight() [3/4]

double ProfileHeight	(	VectorD	position,
		out bool	isAbsorbed
	)

Profile height calculation which includes pixelation, quantization and scaling in x-, y- and z- direction.

Parameters

position	the position on which the height profile shall be calculated
isAbsorbed	Out parameter specifying whether or not light on the given position is absorbed by an aperture.

Returns

The height value on the position.

ProfileHeight() [4/4]

double ProfileHeight	(	VectorD	position,
		out bool	isAbsorbed,
		bool	includeQuantization,
		bool	subtractHeightOffset = true,
		double?	nanValue = null
	)

profile height calculation which includes pixelation, quantization and scaling in x-, y- and z-direction

Parameters

position	the position on which the height profile shall be calculated
isAbsorbed	Out parameter specifying whether or not light on the given position is absorbed by an aperture.
includeQuantization	To apply quantization one needs to know the total profile height (without quantization). Thus this parameters allows to switch of the quantization during calculation of that total profile height.
subtractHeightOffset	Optional parameter to avoid recursion - as the offset to be subtracted is the height at the position (0, 0) without the offset subtracted.
nanValue	The value with which NaNs are replaced. If this optional parameter is not specified, the value outside the (inner) definition area is used.

Returns

The height value on the position.

Property Documentation

FresnelZonesRelativePositionOnZAxis

double FresnelZonesRelativePositionOnZAxis

getset

Gets and sets the relative position on the z-axis for the Fresnel zones.

IsRotationalSymmetric

bool IsRotationalSymmetric

get

Gets whether the given surface is rotational symmetric. The following conditions must be fulfilled for rational symmetry:

• The surface must not be periodical.
• The definition are must be rotational symmetric.
• The surface must be either an aspherical, conical interface or unrotated plane interface - or a combined interface containing only such interfaces.

Returns

TRUE if the surface is rotational symmetric, otherwise FALSE.
