This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes an elliptic region which may be situated at an arbitrary center and which may be rotated by an arbitrary angle. More...

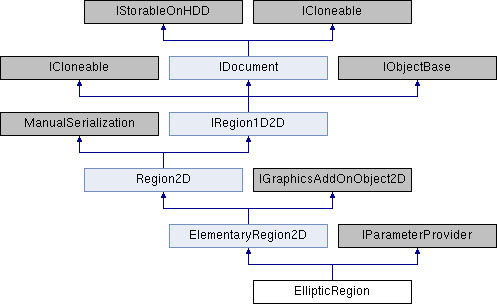

Inheritance diagram for EllipticRegion:

Public Member Functions
override double	CalculateDistanceOfPointToRegionBorder (VectorD point)
	Calculates the distance of a point to the border of this region. More...

override object	Clone ()
	Deep copy of the object. More...

	EllipticRegion ()
	Default constructor, creating a non-rotated ellipse of 10mm x 5mm (diameter in x and y) and centered at (0,0).

	EllipticRegion (Ellipse ellipse)
	Constructor which gets an (axis aligned, i.e. non-rotated) ellipse. More...

	EllipticRegion (EllipticRegion ellipticRegion)
	Copy constructor More...

	EllipticRegion (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details. More...

	EllipticRegion (VectorD center, double halfAxisX, double halfAxisY, double angle, bool boundaryIsInside=false, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor with all parameters including the half axes. More...

override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operator. More...

override InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary. More...

override void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course. More...

override void	UpdatePropertyOfCoordinates ()
	Method for handling update after change of the physical property of the coordinate

Public Member Functions inherited from ElementaryRegion2D
abstract double	CalculateDistanceOfPointToRegionBorder (VectorD point)
	Calculates the distance of a point to the border of this region. More...

	ElementaryRegion2D (bool boundariesAreInside, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor which gets the _boundariesAreInside flag. To be called from derived classes constructors. More...

	ElementaryRegion2D (ElementaryRegion2D region2bCopied)
	Copy constructor. More...

	ElementaryRegion2D (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details. More...

Public Member Functions inherited from Region2D
override object	Clone ()
	Clones the current object. More...

override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operation More...

abstract InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary. More...

bool	IsInside (double pointX, double pointY)
	Method which checks whether or not a point is inside the 2D region. More...

bool	IsInside (VectorD point)
	Method which checks whether or not a point is inside the 2D region. More...

abstract void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course. More...

	Region2D (bool boundariesAreInside, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor which gets the _boundariesAreInside flag. To be called from derived classes constructors. More...

	Region2D (Region2D region2bCopied)
	Copy constructor. More...

	Region2D (SerializationInfo info, StreamingContext context)
	Deserialization constructor. See the ISerializable interface for more details. More...

virtual void	UpdatePropertyOfCoordinates ()
	Method for handling update after change of the physical property of the coordinate

bool	Equals (object otherObject, EqualityIntent equalityIntent)
	Determines whether the specified Object is equal to this instance. More...

Public Member Functions inherited from IDocument
void	Reload ()
	Reload function for the document

Static Public Member Functions
static EllipticRegion	EllipticRegionFromSize (VectorD center, VectorD size, double angle, bool boundaryIsInside=false, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Static constructor which constructs an ellipse from the overall size, not the half axes. More...

static bool	operator!= (EllipticRegion o1, EllipticRegion o2)
	Unequals operator. More...

static bool	operator== (EllipticRegion o1, EllipticRegion o2)
	Equals operator More...

static EllipticRegion	ScaleToFitIntoRectangle (EllipticRegion ellipse, VectorD sizeOfRectangle)
	Static method for scaling a given ellipse for fitting into a rectangle who's size is given More...

Static Public Member Functions inherited from ElementaryRegion2D
static bool	operator!= (ElementaryRegion2D o1, ElementaryRegion2D o2)
	Unequals operator. More...

static bool	operator== (ElementaryRegion2D o1, ElementaryRegion2D o2)
	Equals operator More...

Static Public Member Functions inherited from Region2D
static Region2D	InvertRegion (Region2D region2Invert)
	Creates a new region with inverted in / out regions compared to this. More...

static Region2D	Load (string fileName)
	Loads the specified file name. Works independently from whether the document has been saved without view settings (as prior to VL 6.0) or with view settings. More...

static bool	operator!= (Region2D o1, Region2D o2)
	Unequals operator. More...

static bool	operator== (Region2D o1, Region2D o2)
	Equals operator More...

Properties
double	Angle `[get, set]`
	Gets the rotation angle in rad.

override RectanglePhysical	AxisAlignedBoundingBox `[get]`
	Gets the bounding box for the elliptic region. Its sides are parallel to the x- and y-axis resp. So this bounding box is identical to the minimum circumscribing rectangle only in case of a rotation angle of 0, 90, 180, or 270 degrees.

VectorD	Center `[get, set]`
	Gets the center of the ellipse.

double	HalfAxisX `[get, set]`
	The major half axis of the elliptic region.

double	HalfAxisY `[get, set]`
	The minor half axis of the elliptic region.

virtual List< Parameter >	ParameterRunParameters `[get]`
	Gets all available parameters. For variable parameters (i.e. those double and int parameters which can be used in the Parameter Run, Parametric Optimization and so on) add a VaryParameterInfo object (derived from Parameter class) to the returned list.

Properties inherited from Region2D
abstract RectanglePhysical	AxisAlignedBoundingBox `[get]`
	Gets the bounding box for the 2D region. Its sides are parallel to the x- and y-axis resp.

bool	BoundariesAreInside `[get, set]`
	Gets or sets whether or not the boundaries of the region belong to the inner region.

string	CommentOfCoordinates_X `[get, set]`
	Gets and sets the comment for the x-coordinates.

string	CommentOfCoordinates_Y `[get, set]`
	Gets and sets the comment for the y-coordinates.

ExtrapolationInfo	ExtrapolationHandling `[get, set]`
	The extrapolation mode for this region. See ITN.064 for more information on the mode 'border continuation'.

bool	IsOneD `[get]`
	Gets whether this IRegion1D2D is 1D or 2D

string	Name `[get, set]`
	The name which can be given to the region by the user.

PhysicalProperty	PropertyOfCoordinatesX `[get, set]`
	Physical property of the x-coordinates of the region

PhysicalProperty	PropertyOfCoordinatesY `[get, set]`
	Physical property of the y-coordinates of the region

Region2DType	RegionType `[get]`
	Gets the type of the region

SamplingParameters	SamplingForUsageWithComplexFields `[get, set]`
	Sampling parameters which will be used for a coordinate rescaling in case of using the region with a complex field.

Properties inherited from IRegion1D2D
bool	BoundariesAreInside `[get, set]`
	Gets or sets whether or not the boundaries of the region belong to the inner region.

bool	IsOneD `[get]`
	Gets whether this IRegion1D2D is 1D or 2D

string	Name `[get, set]`
	The name which can be given to the region by the user.

SamplingParameters	SamplingForUsageWithComplexFields `[get, set]`
	Sampling parameters which will be used for a coordinate rescaling in case of using the region with a complex field.

Properties inherited from IDocument
VirtualLabSession	Session `[get, set]`
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession

NodeVLExplorer	TreeStructure `[get]`
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer

DocumentType	TypeOfDocument `[get]`
	Gets an enum entry specifying the type of the document.

Additional Inherited Members
Static Public Attributes inherited from Region2D
const string	DefaultDocumentName
	The default document name (= type description) for an Order Collection.

static readonly string	FileDialogFilterString
	The filter string used in "Open File" dialogs.

const string	FileExtensionString
	The file extension for an Order Collection.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes an elliptic region which may be situated at an arbitrary center and which may be rotated by an arbitrary angle.

Constructor & Destructor Documentation

◆ EllipticRegion() [1/4]

EllipticRegion ( Ellipse ellipse )

Constructor which gets an (axis aligned, i.e. non-rotated) ellipse.

Parameters

ellipse

◆ EllipticRegion() [2/4]

EllipticRegion	(	VectorD	center,
		double	halfAxisX,
		double	halfAxisY,
		double	angle,
		bool	boundaryIsInside = `false`,
		PhysicalProperty	propertyOfCoordinatesX = `PhysicalProperty.Length`,
		PhysicalProperty	propertyOfCoordinatesY = `PhysicalProperty.Length`
	)

Constructor with all parameters including the half axes.

Parameters

center	The center of the ellipse.
halfAxisX	The half axis in x-direction.
halfAxisY	The half axis in y-direction.
angle	The angle between the halfAxisX and the x-axis.
boundaryIsInside	Flag which says whether or not the boundary is part of the inner region or not.
propertyOfCoordinatesX	Optional physical property of the x-coordinates (length by default).
propertyOfCoordinatesY	Optional physical property of the y-coordinates (length by default).

◆ EllipticRegion() [3/4]

EllipticRegion ( EllipticRegion ellipticRegion )

Copy constructor

Parameters

ellipticRegion The elliptic region to be copied.

◆ EllipticRegion() [4/4]

EllipticRegion	(	SerializationInfo	info,
		StreamingContext	context
	)

Deserialization constructor. See the ISerializable interface for more details.

Parameters

info	SerializationInfo
context	StreamingContext

Member Function Documentation

◆ CalculateDistanceOfPointToRegionBorder()

override double CalculateDistanceOfPointToRegionBorder ( VectorD point )

virtual

Calculates the distance of a point to the border of this region.

Parameters

point Point to calculate the distance for.

Returns: The distance of the given point to the border of this region

Implements ElementaryRegion2D.

◆ Clone()

override object Clone ( )

Deep copy of the object.

Returns: A deep copy of this.

◆ EllipticRegionFromSize()

static EllipticRegion EllipticRegionFromSize	(	VectorD	center,
		VectorD	size,
		double	angle,
		bool	boundaryIsInside = `false`,
		PhysicalProperty	propertyOfCoordinatesX = `PhysicalProperty.Length`,
		PhysicalProperty	propertyOfCoordinatesY = `PhysicalProperty.Length`
	)

static

Static constructor which constructs an ellipse from the overall size, not the half axes.

Parameters

center	The center of the ellipse.
size	The overall extension of the ellipse along the two principal axes of the ellipse (x- and y-axis for an unrotated ellipse).
angle	The angle between the size.X and the x-axis.
boundaryIsInside	Flag which says whether or not the boundary is part of the inner region or not.
propertyOfCoordinatesX	Optional physical property of the x-coordinates (length by default).
propertyOfCoordinatesY	Optional physical property of the y-coordinates (length by default).

Returns: The created ellipse

◆ Equals()

override bool Equals	(	object	obj,
		EqualityIntent	equalityIntent
	)

Equality operator.

Parameters

obj
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns

Implements IRegion1D2D.

◆ GetInOutRelation()

override InsideOutside GetInOutRelation	(	VectorD	point,
		ExtrapolationInfo	extrapolation2use = `null`
	)

virtual

Method which checks whether or not a point lies inside or outside the 2D region or on its boundary.

Parameters

point	The point to be checked whether it lies inside.
extrapolation2use	Extrapolation info actually to be used.

Returns: Information where the point lies in relation to the region.

Implements Region2D.

◆ MayBeNonzeroOutside()

override void MayBeNonzeroOutside	(	out bool	maybeNonZeroLeft,
		out bool	maybeNonZeroRight,
		out bool	maybeNonZeroBottom,
		out bool	maybeNonZeroTop
	)

virtual

Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.

Parameters

maybeNonZeroLeft	`True`, if there may be nonzero values left of the bounding box.
maybeNonZeroRight	`True`, if there may be nonzero values right of the bounding box.
maybeNonZeroBottom	`True`, if there may be nonzero values below the bottom of the bounding box.
maybeNonZeroTop	`True`, if there may be nonzero values above the top of the bounding box.

Implements Region2D.

◆ operator!=()

static bool operator!=	(	EllipticRegion	o1,
		EllipticRegion	o2
	)

static

Unequals operator.

Parameters

o1
o2

Returns

◆ operator==()

static bool operator==	(	EllipticRegion	o1,
		EllipticRegion	o2
	)

static

Equals operator

Parameters

o1
o2

Returns

◆ ScaleToFitIntoRectangle()

static EllipticRegion ScaleToFitIntoRectangle	(	EllipticRegion	ellipse,
		VectorD	sizeOfRectangle
	)

static

Static method for scaling a given ellipse for fitting into a rectangle who's size is given

Parameters

ellipse	Ellipse to be scaled.
sizeOfRectangle	Size of the rectangle the ellipse has to fit in

Returns: The scaled, fitting ellipse.

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EllipticRegion() [1/4]

◆ EllipticRegion() [2/4]

◆ EllipticRegion() [3/4]

◆ EllipticRegion() [4/4]

Member Function Documentation

◆ CalculateDistanceOfPointToRegionBorder()

◆ Clone()

◆ EllipticRegionFromSize()

◆ Equals()

◆ GetInOutRelation()

◆ MayBeNonzeroOutside()

◆ operator!=()

◆ operator==()

◆ ScaleToFitIntoRectangle()
