EllipticRegion Class Reference

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes an elliptic region which may be situated at an arbitrary center and which may be rotated by an arbitrary angle. More...

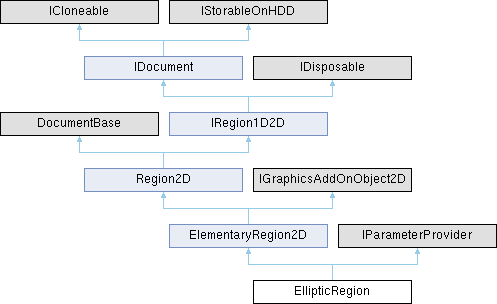

Inheritance diagram for EllipticRegion:

Public Member Functions
override void	CalculateAxisAlignedBoundingBox ()
override double	CalculateDistanceOfPointToRegionBorder (VectorD point)
	Calculates the distance of a point to the border of this region.
override object	Clone ()
	Deep copy of the object.
new void	DeserializationPostProcessing (ref List< System.Reflection.FieldInfo > unfindableFields, RemainingData remainingData)
	Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.
	EllipticRegion ()
	Default constructor, creating a non-rotated ellipse of 10mm x 5mm (diameter in x and y) and centered at (0,0).
	EllipticRegion (Ellipse ellipse)
	Constructor which gets an (axis aligned, i.e. non-rotated) ellipse.
	EllipticRegion (EllipticRegion ellipticRegion)
	Copy constructor.
	EllipticRegion (VectorD center, double halfAxisX, double halfAxisY, double angle, bool boundaryIsInside=false, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor with all parameters including the half axes.
override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operator.
override int	GetHashCode ()
override InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary.
override void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.
override void	UpdatePropertyOfCoordinates ()
	Method for handling update after change of the physical property of the coordinate.
Public Member Functions inherited from ElementaryRegion2D
double	CalculateDistanceOfPointToRegionBorder (VectorD point)
	Calculates the distance of a point to the border of this region.
	ElementaryRegion2D (bool boundariesAreInside, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor which gets the _boundariesAreInside flag. To be called from derived classes constructors.
	ElementaryRegion2D (ElementaryRegion2D region2bCopied)
	Copy constructor.
Public Member Functions inherited from Region2D
void	CalculateAxisAlignedBoundingBox ()
	Method for (re)calculating the axis aligned bounding box.
override object	Clone ()
	Clones the current object.
override bool	Equals (object obj, EqualityIntent equalityIntent)
	Equality operation.
override int	GetHashCode ()
InsideOutside	GetInOutRelation (VectorD point, ExtrapolationInfo extrapolation2use=null)
	Method which checks whether or not a point lies inside or outside the 2D region or on its boundary.
override FormDocument	GetNewDocumentWindow (Form formMain, string fileName)
	Gets a new document window containing this document. Parameters formMain Reference to the main form (= MDI parent). Can be null if this form will not be shown (e.g. if it is generated just to get the view settings. fileName File name from which the document was opened for inserting into window caption. If this string is empty, the default document name is used. Returns A FormDocument containing this document.
bool	IsInside (double pointX, double pointY)
	Method which checks whether or not a point is inside the 2D region.
bool	IsInside (VectorD point)
	Method which checks whether or not a point is inside the 2D region.
void	MayBeNonzeroOutside (out bool maybeNonZeroLeft, out bool maybeNonZeroRight, out bool maybeNonZeroBottom, out bool maybeNonZeroTop)
	Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.
	Region2D (bool boundariesAreInside, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Constructor which gets the _boundariesAreInside flag. To be called from derived classes constructors.
	Region2D (Region2D region2bCopied)
	Copy constructor.

Static Public Member Functions
static EllipticRegion	EllipticRegionFromSize (VectorD center, VectorD size, double angle, bool boundaryIsInside=false, PhysicalProperty propertyOfCoordinatesX=PhysicalProperty.Length, PhysicalProperty propertyOfCoordinatesY=PhysicalProperty.Length)
	Static constructor which constructs an ellipse from the overall size, not the half axes.
static bool	operator!= (EllipticRegion o1, EllipticRegion o2)
	Unequals operator.
static bool	operator== (EllipticRegion o1, EllipticRegion o2)
	Equals operator.
static EllipticRegion	ScaleToFitIntoRectangle (EllipticRegion ellipse, VectorD sizeOfRectangle)
	Static method for scaling a given ellipse for fitting into a rectangle who's size is given.
Static Public Member Functions inherited from ElementaryRegion2D
static bool	operator!= (ElementaryRegion2D o1, ElementaryRegion2D o2)
	Unequals operator.
static bool	operator== (ElementaryRegion2D o1, ElementaryRegion2D o2)
	Equals operator.
Static Public Member Functions inherited from Region2D
static Region2D	InvertRegion (Region2D region2Invert)
	Creates a new region with inverted in / out regions compared to this.
static Region2D	Load (string fileName)
	Loads the specified file name. Works independently from whether the document has been saved without view settings (as prior to VL 6.0) or with view settings.
static bool	operator!= (Region2D o1, Region2D o2)
	Unequals operator.
static bool	operator== (Region2D o1, Region2D o2)
	Equals operator.

Properties
double	Angle [get, set]
	Gets the rotation angle in rad.
VectorD	Center [get, set]
	Gets the center of the ellipse.
double	HalfAxisX [get, set]
	The major half axis of the elliptic region.
double	HalfAxisY [get, set]
	The minor half axis of the elliptic region.
virtual List< Parameter >	ParameterRunParameters [get]
	Gets all available parameters. For variable parameters (i.e. those double and int parameters which can be used in the Parameter Run, Parametric Optimization and so on) add a VaryParameterInfo object (derived from Parameter class) to the returned list.
Properties inherited from Region2D
RectanglePhysical	AxisAlignedBoundingBox [get]
	Gets the bounding box for the 2D region. Its sides are parallel to the x- and y-axis resp.
bool	BoundariesAreInside [get, set]
	Gets or sets whether or not the boundaries of the region belong to the inner region.
string	CommentOfCoordinates_X [get, set]
	Gets and sets the comment for the x-coordinates.
string	CommentOfCoordinates_Y [get, set]
	Gets and sets the comment for the y-coordinates.
ExtrapolationInfo	ExtrapolationHandling [get, set]
	The extrapolation mode for this region. See ITN.064 for more information on the mode 'border continuation'.
bool	IsOneD [get]
	Gets whether this IRegion1D2D is 1D or 2D.
string	Name [get, set]
	The name which can be given to the region by the user.
PhysicalProperty	PropertyOfCoordinatesX [get, set]
	Physical property of the x-coordinates of the region.
PhysicalProperty	PropertyOfCoordinatesY [get, set]
	Physical property of the y-coordinates of the region.
Region2DType	RegionType [get]
	Gets the type of the region.
SamplingParameters	SamplingForUsageWithComplexFields [get, set]
	Sampling parameters which will be used for a coordinate rescaling in case of using the region with a complex field.
Properties inherited from IDocument
VirtualLabSession	Session [get, set]
	every documents need to be handled in a session ==> default is the VirtualLab Mainsession
NodeVLExplorer	TreeStructure [get]
	every document should have a node (maybe with subnodes) in the VirtualLab Explorer
DocumentType	TypeOfDocument [get]
	Gets an enum entry specifying the type of the document.

Additional Inherited Members
Static Public Attributes inherited from Region2D
const string	DefaultDocumentName
	The default document name (= type description) for an Order Collection.
static readonly string	FileDialogFilterString
	The filter string used in "Open File" dialogs.
const string	FileExtensionString
	The file extension for an Order Collection.

Detailed Description

This class is subject to change. Programs using this class may require changes with a new version of VirtualLab.
Class which describes an elliptic region which may be situated at an arbitrary center and which may be rotated by an arbitrary angle.

Constructor & Destructor Documentation

EllipticRegion() [1/3]

EllipticRegion

(

Ellipse

ellipse

)

Constructor which gets an (axis aligned, i.e. non-rotated) ellipse.

Parameters

ellipse

EllipticRegion() [2/3]

EllipticRegion	(	VectorD	center,
		double	halfAxisX,
		double	halfAxisY,
		double	angle,
		bool	boundaryIsInside = false,
		PhysicalProperty	propertyOfCoordinatesX = PhysicalProperty::Length,
		PhysicalProperty	propertyOfCoordinatesY = PhysicalProperty::Length )

Constructor with all parameters including the half axes.

Parameters

center	The center of the ellipse.
halfAxisX	The half axis in x-direction.
halfAxisY	The half axis in y-direction.
angle	The angle between the halfAxisX and the x-axis.
boundaryIsInside	Flag which says whether or not the boundary is part of the inner region or not.
propertyOfCoordinatesX	Optional physical property of the x-coordinates (length by default).
propertyOfCoordinatesY	Optional physical property of the y-coordinates (length by default).

EllipticRegion() [3/3]

EllipticRegion

(

EllipticRegion

ellipticRegion

)

Copy constructor.

Parameters

ellipticRegion

The elliptic region to be copied.

Member Function Documentation

CalculateDistanceOfPointToRegionBorder()

override double CalculateDistanceOfPointToRegionBorder

(

VectorD

point

)

Calculates the distance of a point to the border of this region.

Parameters

point

Point to calculate the distance for.

Returns

The distance of the given point to the border of this region

Clone()

override object Clone

(

)

Deep copy of the object.

Returns

A deep copy of this.

DeserializationPostProcessing()

new void DeserializationPostProcessing	(	ref List< System.Reflection.FieldInfo >	unfindableFields,
		RemainingData	remainingData )

Method for doing post-processing after XML deserialization. Especially, handling of fields which have been altered since the version the data were saved with. But also additional operations (like filling caching variables etc.) can be done here.

Parameters

unfindableFields	List of all those fields which are expected but could not be read from XML.
remainingData	Data contained in XML but which haven't been read yet.

EllipticRegionFromSize()

static EllipticRegion EllipticRegionFromSize ( VectorD center, VectorD size, double angle, bool boundaryIsInside = false, PhysicalProperty propertyOfCoordinatesX = PhysicalProperty::Length, PhysicalProperty propertyOfCoordinatesY = PhysicalProperty::Length )

static

Static constructor which constructs an ellipse from the overall size, not the half axes.

Parameters

center	The center of the ellipse.
size	The overall extension of the ellipse along the two principal axes of the ellipse (x- and y-axis for an unrotated ellipse).
angle	The angle between the size.X and the x-axis.
boundaryIsInside	Flag which says whether or not the boundary is part of the inner region or not.
propertyOfCoordinatesX	Optional physical property of the x-coordinates (length by default).
propertyOfCoordinatesY	Optional physical property of the y-coordinates (length by default).

Returns

The created ellipse

Equals()

override bool Equals	(	object	obj,
		EqualityIntent	equalityIntent )

Equality operator.

Parameters

obj
equalityIntent	Defines what kind of equality you want to check when comparing two objects, for example all values or physical equality.

Returns

GetInOutRelation()

override InsideOutside GetInOutRelation	(	VectorD	point,
		ExtrapolationInfo	extrapolation2use = null )

Method which checks whether or not a point lies inside or outside the 2D region or on its boundary.

Parameters

point	The point to be checked whether it lies inside.
extrapolation2use	Extrapolation info actually to be used.

Returns

Information where the point lies in relation to the region.

MayBeNonzeroOutside()

override void MayBeNonzeroOutside	(	out bool	maybeNonZeroLeft,
		out bool	maybeNonZeroRight,
		out bool	maybeNonZeroBottom,
		out bool	maybeNonZeroTop )

Method which determines whether or not the region can provide "inside" state outside of its boundary interval. This is not the case for extrapolation mode 'ConstantZero', of course.

Parameters

maybeNonZeroLeft	True, if there may be nonzero values left of the bounding box.
maybeNonZeroRight	True, if there may be nonzero values right of the bounding box.
maybeNonZeroBottom	True, if there may be nonzero values below the bottom of the bounding box.
maybeNonZeroTop	True, if there may be nonzero values above the top of the bounding box.

operator!=()

static bool operator!= ( EllipticRegion o1, EllipticRegion o2 )

static

Unequals operator.

Parameters

o1
o2

Returns

operator==()

static bool operator== ( EllipticRegion o1, EllipticRegion o2 )

static

Equals operator.

Parameters

o1
o2

Returns

ScaleToFitIntoRectangle()

static EllipticRegion ScaleToFitIntoRectangle ( EllipticRegion ellipse, VectorD sizeOfRectangle )

static

Static method for scaling a given ellipse for fitting into a rectangle who's size is given.

Parameters

ellipse	Ellipse to be scaled.
sizeOfRectangle	Size of the rectangle the ellipse has to fit in

Returns

The scaled, fitting ellipse.
